XTOOL XT90 Smart Diagnosis System

XT90 is an advanced automotive diagnostic system featuring a large 9.7-inch screen and dual Wi-Fi modules for stable data transfer between the tablet and VCI. It is designed for mechanics, electricians, and automotive repair stores. It provides full-system automotive diagnostics, live data, bi-directional control tests, ECU coding and programming. XT90 also supports 40+ standard special functions such as throttle adaptation, ABS bleeding, service light reset, EPB test, SAS calibration, BMS reset, injector coding, DPF regeneration, and TPMS reset. With 98% vehicle coverage and compatibility with over 100 brands and 10,000 car models, XT90 is a versatile and reliable tool for any automotive professional.

Description

    ● 9.7-inch high-resolution, responsive touchscreen display, 4-core processor with 128 GB storage
    ● High-performance CPU with Android 10 OS, and dual WIFI modules, bring you a smooth and hassle-free diagnostic experience
    ● Extensive vehicle coverage for U.S., European, Asian and Chinese vehicle makes；take the lead in vehicle model and function coverage
    ● Exceptional OE-Level system coverage for all electronic systems
    ● Read/Erase DTC, live data, ECU information, bi-directional control, and special function capabilities
    ● Topology Mapping provides a visual representation of the communication status of each system in the vehicle during automatic scanning
    ● Advanced 40+ relearn and reset services
    ● Provides fault code guidance for VAG and BMW. Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz
    ● Supports the latest communication protocols, including DoIP for Benz, Jaguar, Land Rover and BMW and CAN FD for GM

Parameters

    Operating System：Android 10
    Processor：4 Core 1.50GHz
    Memory：4G RAM, 128G ROM
    Display：9.7-inch, 1024×768P
    Communication：Wi-Fi, Wired
    Connectivity：Type-C, USB 3.0
    Camera：8.0 Megapixel, AF with Flashlight
    Battery：6400 mAh, 7.2V
    Auto Input/Output：Microphone/ Speaker
    Working Voltage：9 to 36V
    Working Temperature：0 to 40℃
    Storage Temperature：-10 to 50℃
    Humidity：<90%
    Dimension (L×W×H)：313X218X30 mm
    Compatible Protocol：CANFD, DoIP

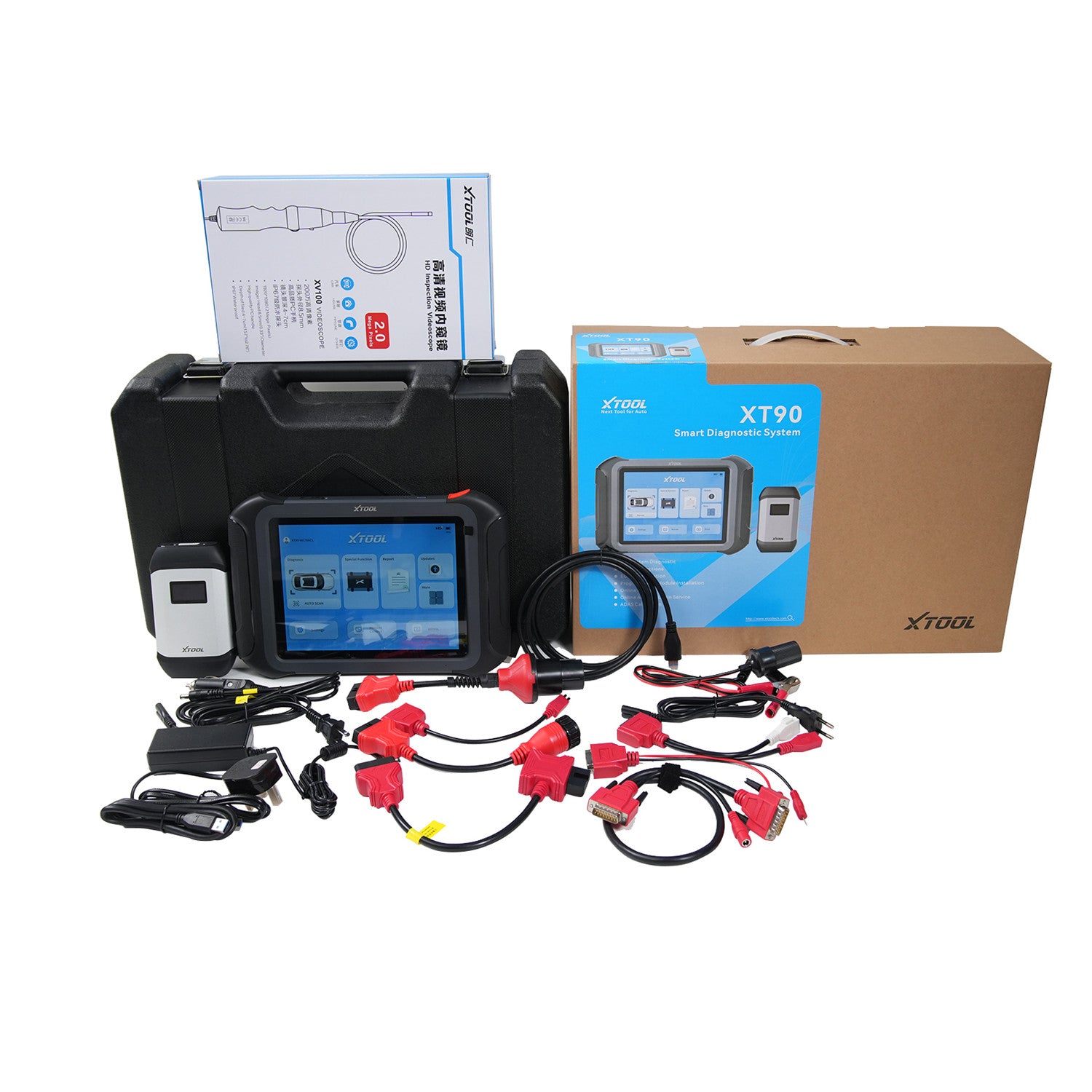

Accessories

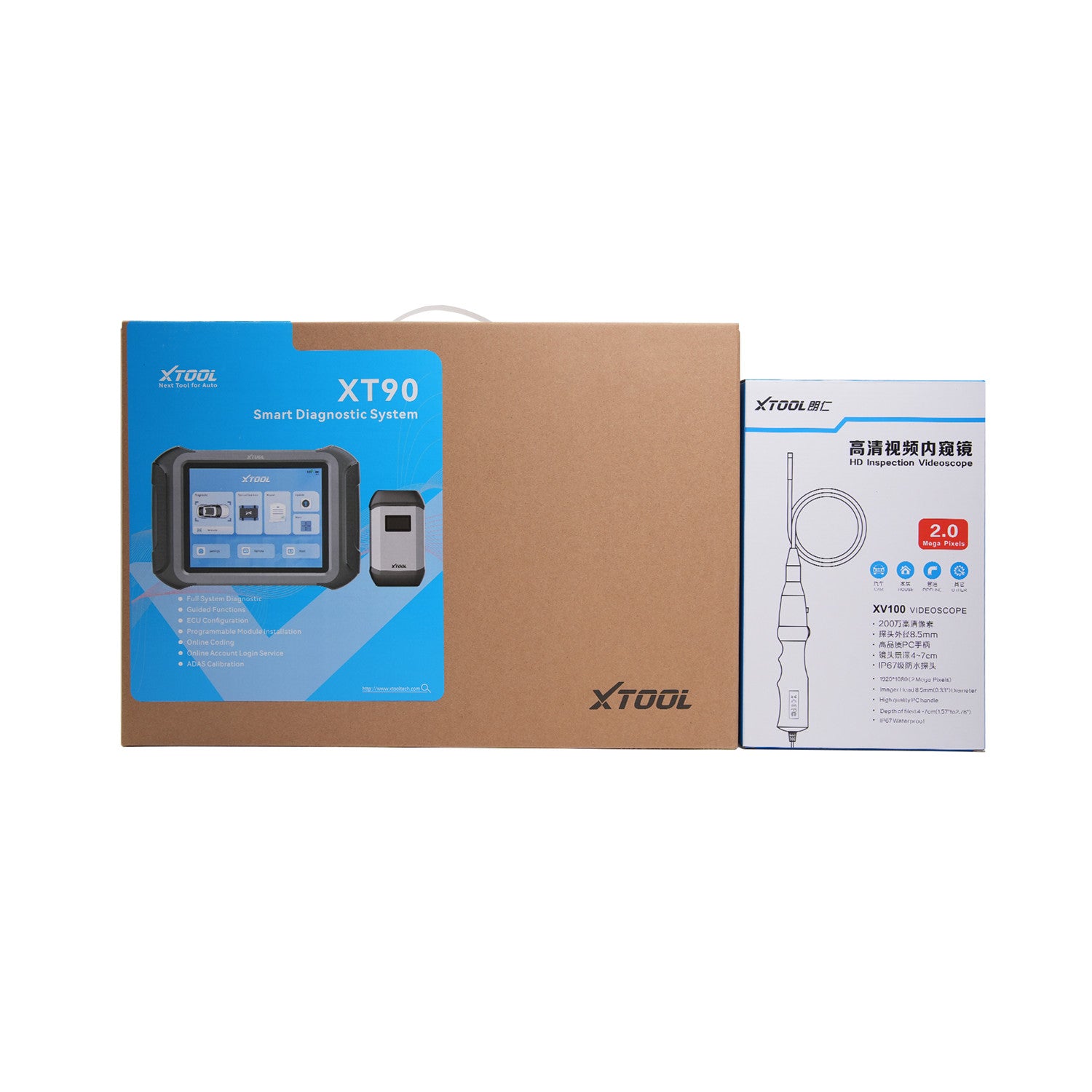

    Color Carton
    Packing List

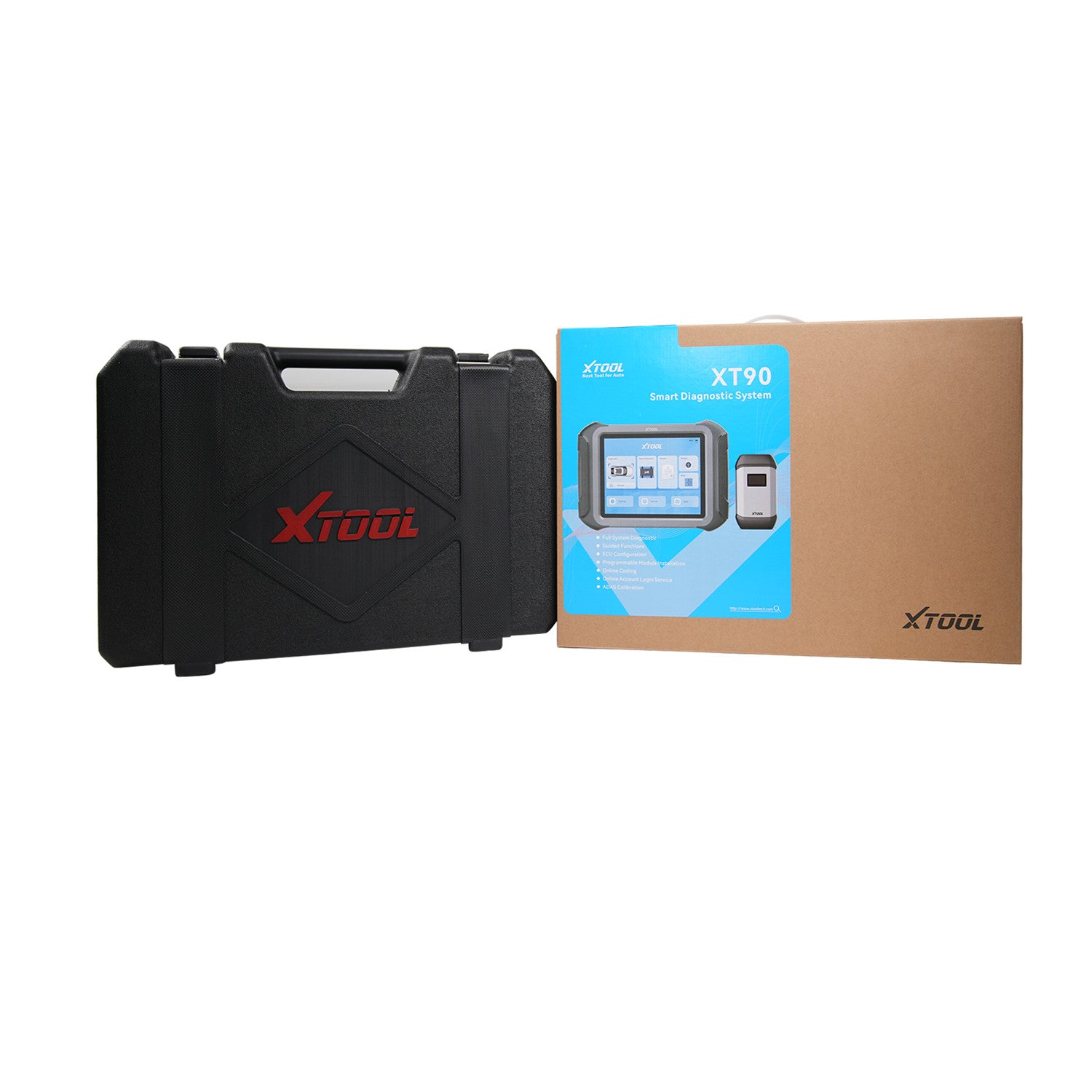

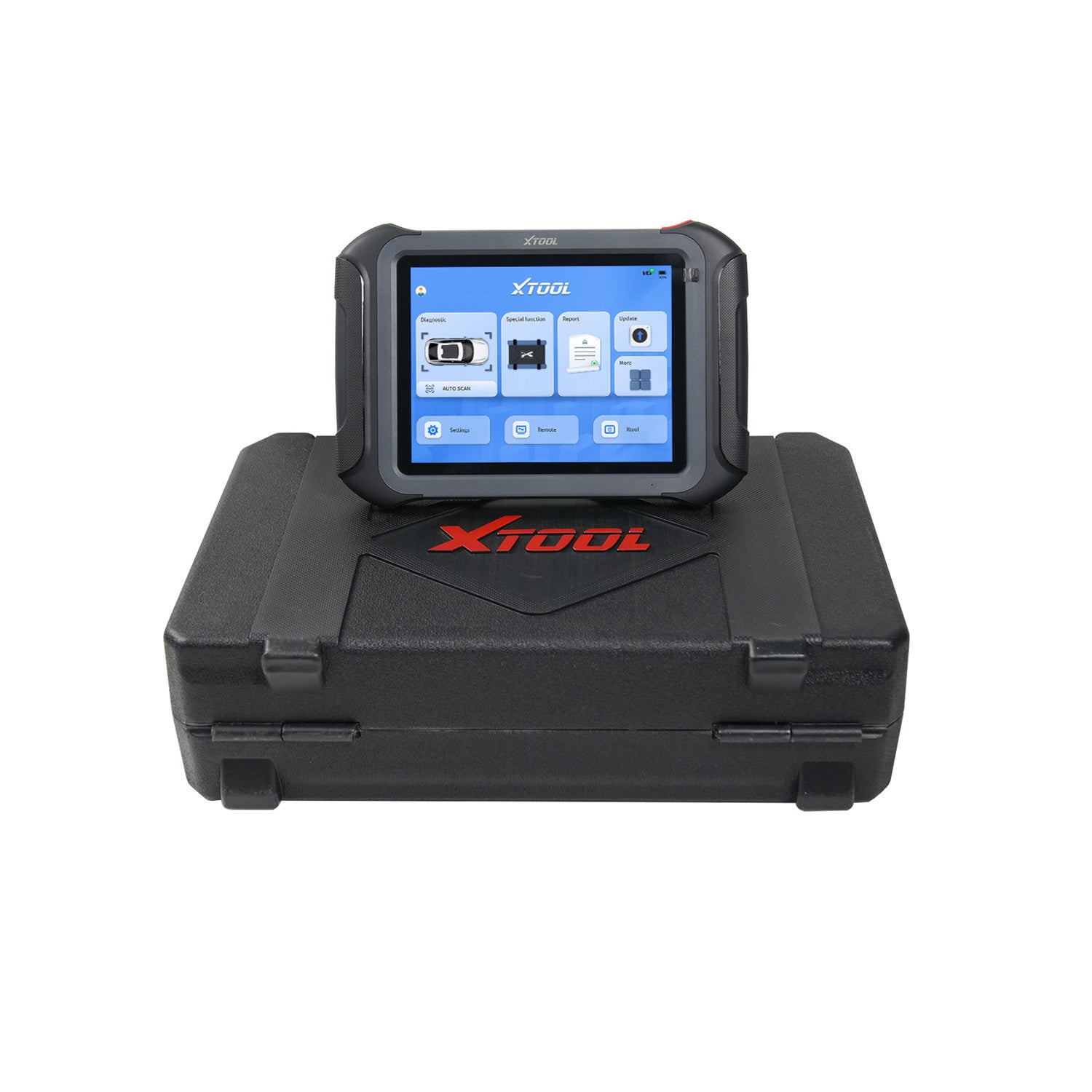

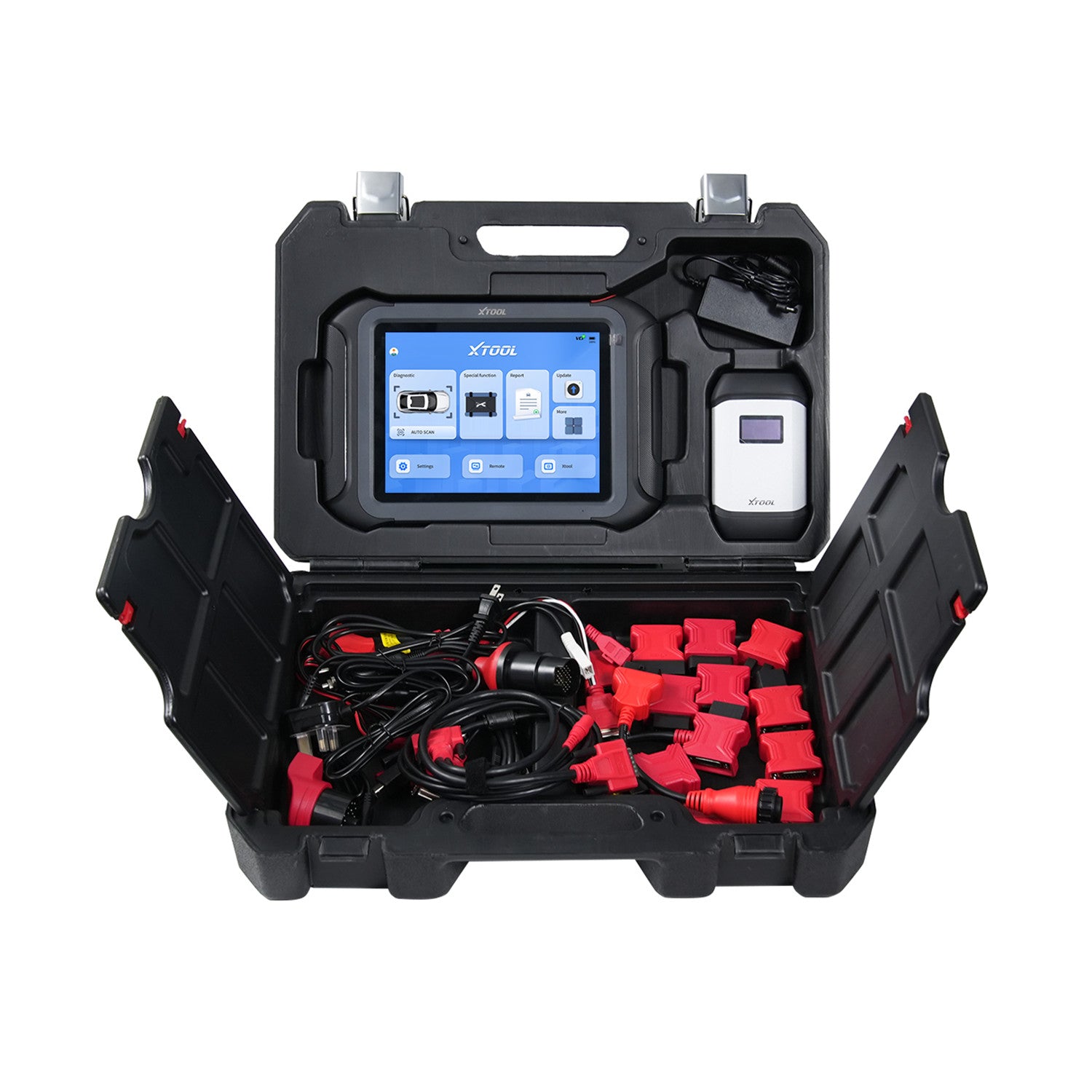

    Tool Case
    Desiccant
    Quick Start Guide
    XV200 Endoscope (Separate packaging)

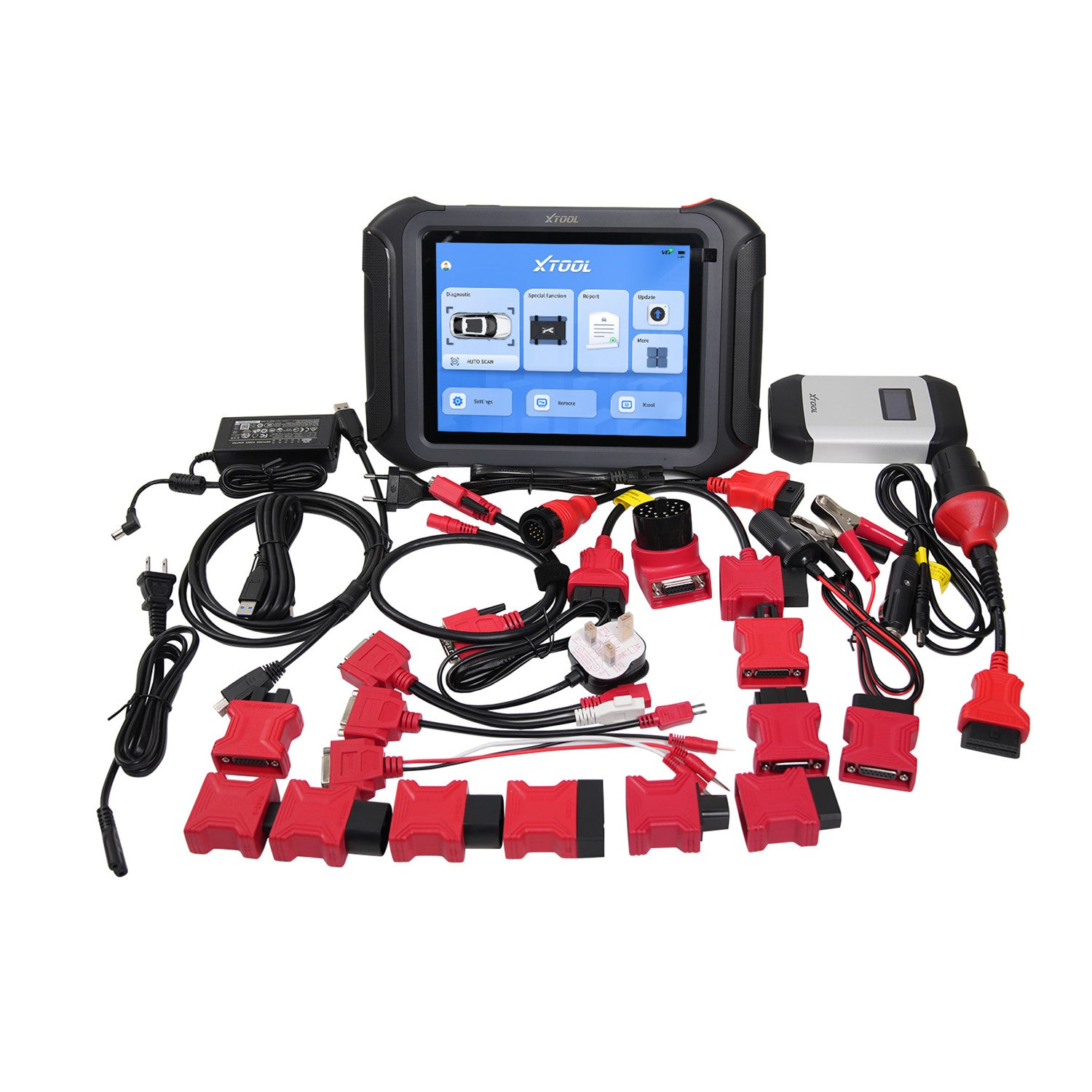

Main Units

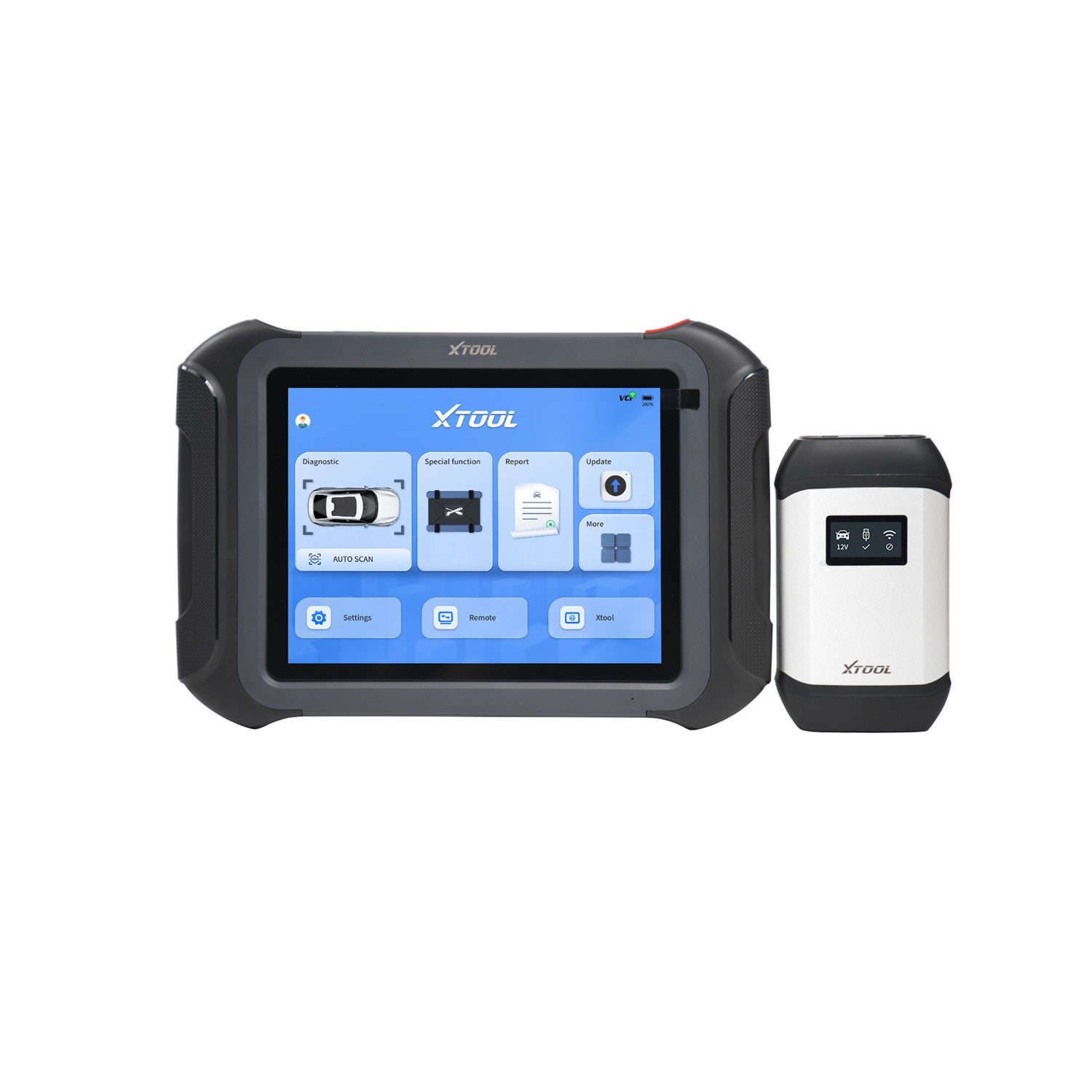

    Tablet
    VCI Box
    USB To Type_B Main Cable
    Charger for Tablet
    Power Cable US
    Power Cable EU
    Power Cable UK
    USB Data Cable (Connect to PC)

Test Connectors

    HONDA-3
    TOYOTA-17
    BMW-20
    KIA-20
    MAZDA-17R
    NISSAN-14
    GM/DAEWOO-12
    SUZUKI-3
    FIAT-3
    HYUNDAI/KIA-10
    AUDI-4
    MITSUBISHI-12+16
    UNIVERSAL-3
    CITROEN-2
    BENZ-38
    BENZ-14
    OBD II-16
    DB15 Main Cable
    Battery Cable
    Cigar Lighter Cable
