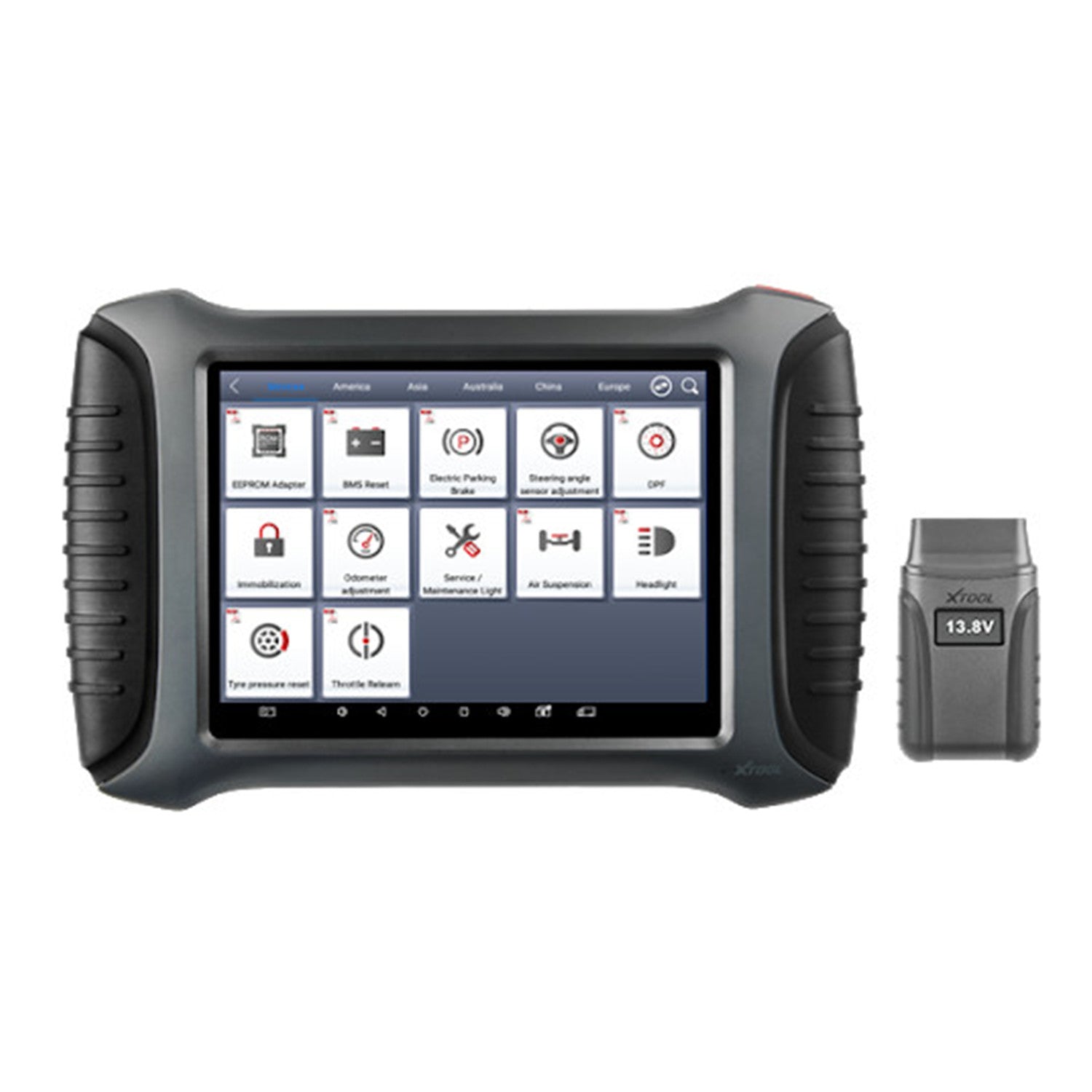

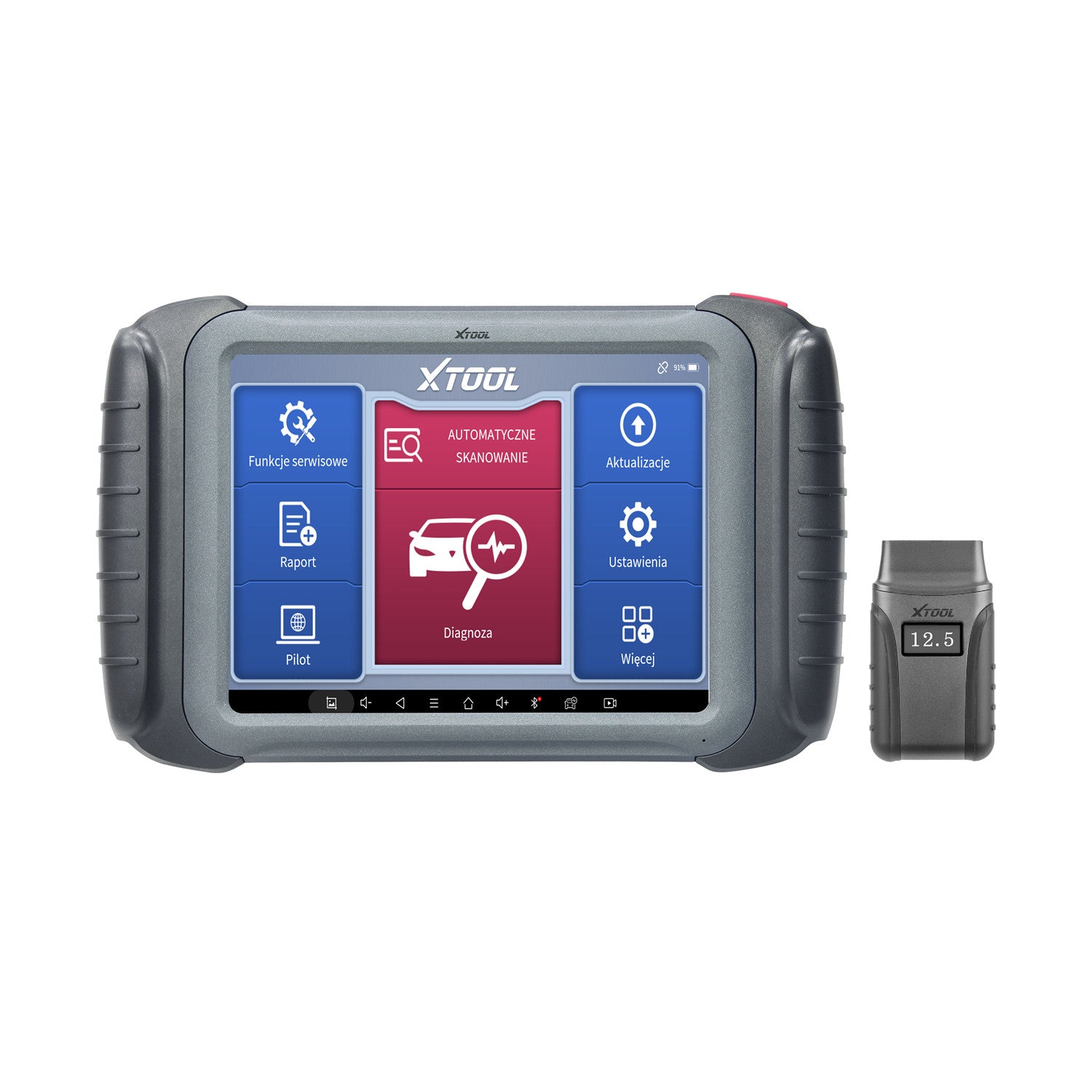

XTOOL H6EB Car Diagnostic Platform with Bluetooth connection

XTOOL H6EB is the latest car diagnosis platform made for technicians with Bluetooth connection. Based on Android system, combined with OEM-level vehicle coverage, carried on a fashionable and beautiful tablet and brand-new interaction design, it gives users same simple operation but totally different experience.

Description

    ● 8-inch, 1024x768 high-resolution touchscreen tablet, 4-core processor with 64 GB storage.
    ● Long-lasting 5000mAh rechargeable battery, 8 MP rear camera, equipped with the videoscope.
    ● V113 wireless Wi-Fi vehicle communication interface supporting the latest communication protocols, including CANFD and DoIP
    ● Full system diagnostics on 1996 and newer U.S., Asian and European and Chinese vehicles
    ● Automatic detection: Scan all available systems with Topology Mapping
    ● Hot 38 relearn and reset services
    ● Read/Erase Codes, View Freeze Frame and Live Data
    ● Perform programmable module installation (PMI) for Ford, Mazda
    ● Perform ADAS (inc. Camera/s, Radar etc.) Systems Calibrations with additional purchase for calibration targets & frame.

Parameters

    Operation System：Android
    CPU：Quad core 1.8GHz
    RAM：2G
    ROM：64G
    Display：8-inch
    Resolution：1024*768P (4:3)
    Communication：WiFi / BT
    Battery Capacity：3.7V, 10000mAh, Rechargeable Lithium-ion Battery
    Ports：USB3.0, MINI HDMI, DC Charging port, DB15 Interface
    Camera：8.0 Megapixel, AF with flashlight
    Operating Temperature：-20℃~50℃
    Operating Voltage：DC9-12V

Accessories

    Color Carton
    Packing List
    Certificate of Quality
    Tool Case
    Power Cable US
    User Manual

Main Units

    USB3.0 Main Cable
    H6EB Tablet
    Charger for Tablet
    Power Cable EU

Test Connectors

    OBD II-16
    HONDA-3
    BMW-20
    TOYOTA-17
    KIA-20
    HYUNDAI/KIA-10
    UNIVERSAL-3
    FIAT-3
    NISSAN-14
    MITSUBISHI-12+16
    GM/DAEWOO-12
    SUZUKI-3
    CITROEN-2
    AUDI-4
    MAZDA-17R
    SELFTEST
    DB15 To VGAMAINCABLE
    Battery Cable
    Cigar Lighter Cable
