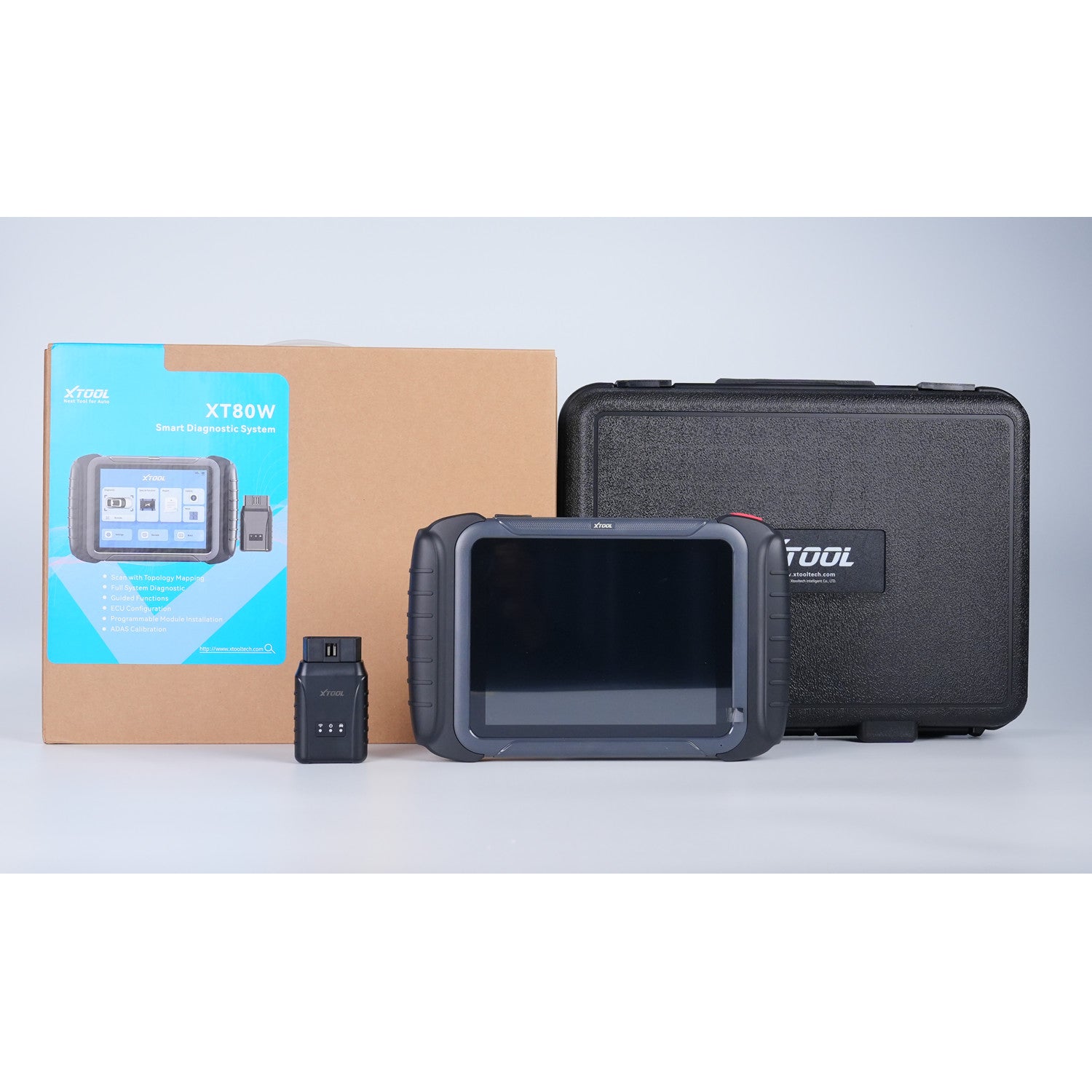

XTOOL XT80W Smart Diagnostic System

XT80W is an automotive smart diagnostic system with an 8-inch LCD display, which is designed for mechanics, electricians, and car maintenance shops. It supports full OBDII functions and full-system automotive diagnostics, including reading ECU version information, reading fault codes, live data, and freeze frames. 35+ common special functions are supported, such as throttle matching, ABS bleeding, maintenance light reset, EPB test, SAS calibration, BMS reset, injector coding, DPF regeneration, and TPMS reset. With 98% vehicle coverage, it works on more than 100 brands and 10,000 cars.

Description

    ● 8-inch, 1024x768 high-resolution touchscreen tablet, 4-core processor with 64 GB storage
    ● Long-lasting 5000mAh rechargeable battery, 8 MP rear camera, equipped with the videoscope
    ● V113 wireless Wi-Fi vehicle communication interface supporting the latest communication protocols, including CANFD and DoIP
    ● Full system diagnostics on 1996 and newer U.S., Asian and European and Chinese vehicles
    ● Automatic detection: Scan all available systems with Topology Mapping
    ● Read/Erase Codes, View Freeze Frame and Live Data
    ● Perform Actuation Tests (bi-directional controls), Coding and Adaptations
    ● AutoScan for rapid vehicle identification
    ● Perform ADAS (inc. Camera/s, Radar etc.) Systems Calibrations with additional purchase

Parameters

    Operating System：Android 10
    Processor：4 Core 1.5 GHz
    Memory：4G RAM, 64G ROM
    Display：8-inch, 1024×768P
    Communication Method：Wireless
    Connectivity：Type-C, USB 3.0
    Camera：8.0 Megapixel, AF with Flashlight
    Battery：5000mAh, 7.2V
    Auto Input/Output：Microphone, Speaker
    Working Voltage：9-36V
    Working Temperature：0 to 40℃
    Storage Temperature：-40 to 60℃
    Humidity：<90%
    Dimension (L×W×H)：274.0×175.0×33.8 mm
    Protocol compatibility：CANFD, DOIP

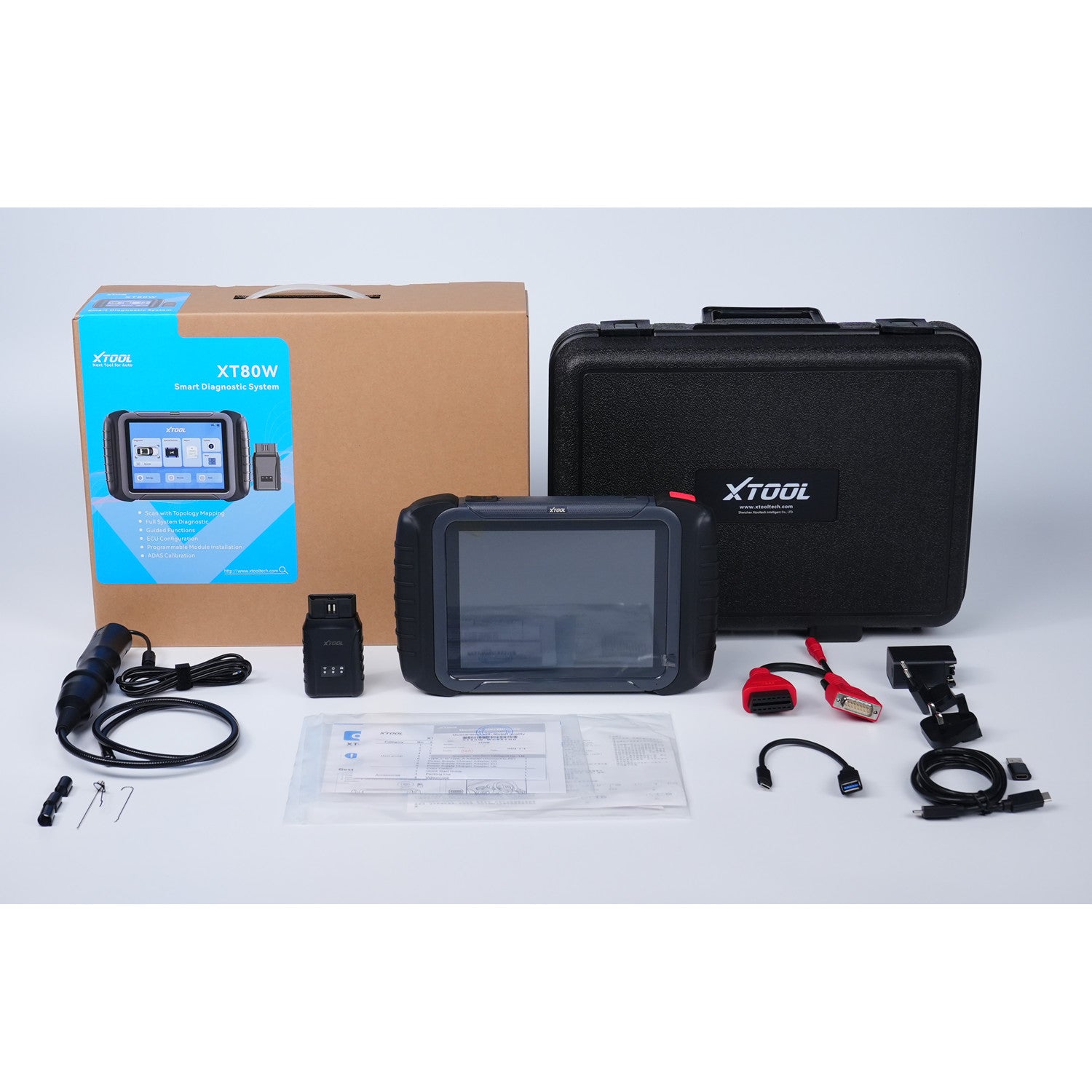

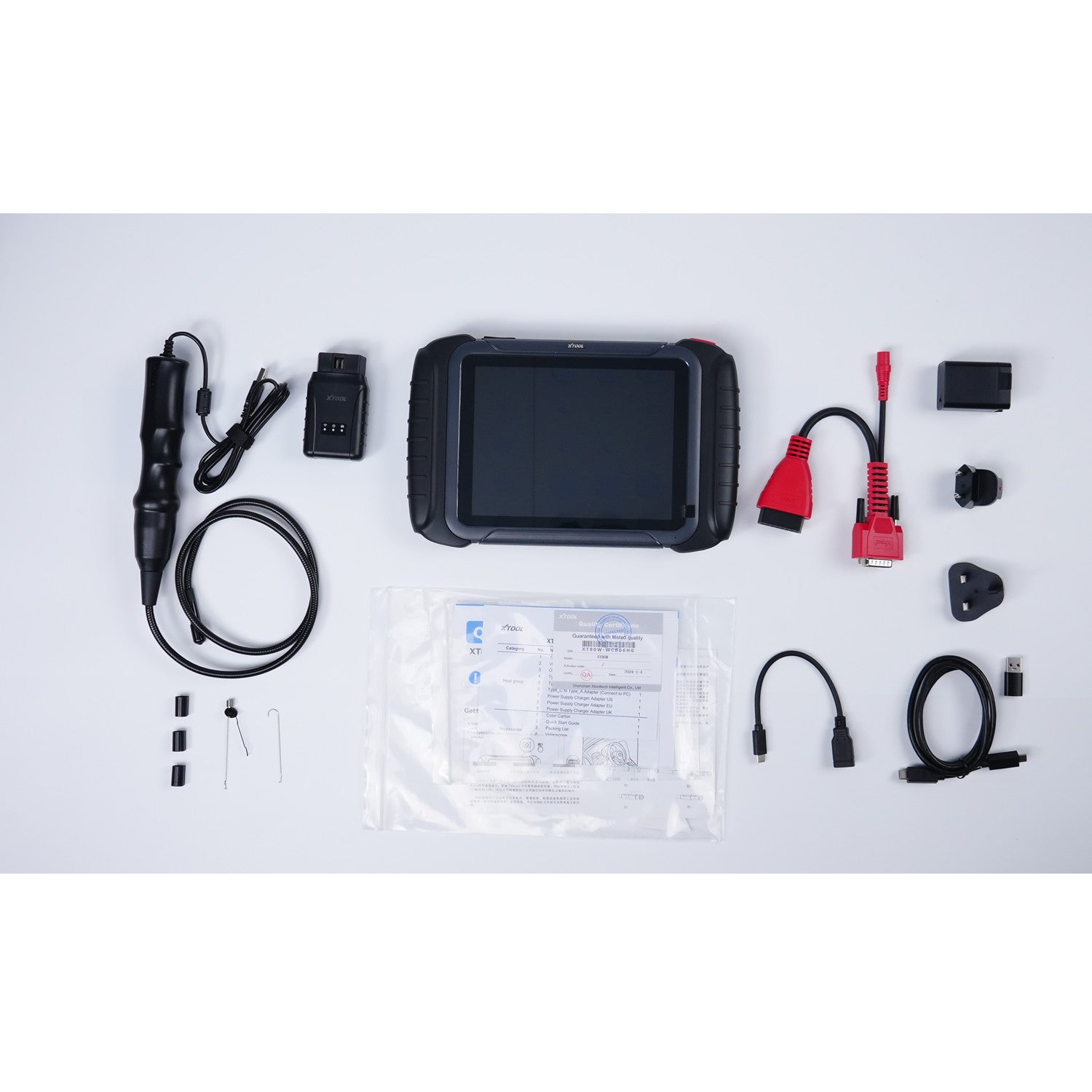

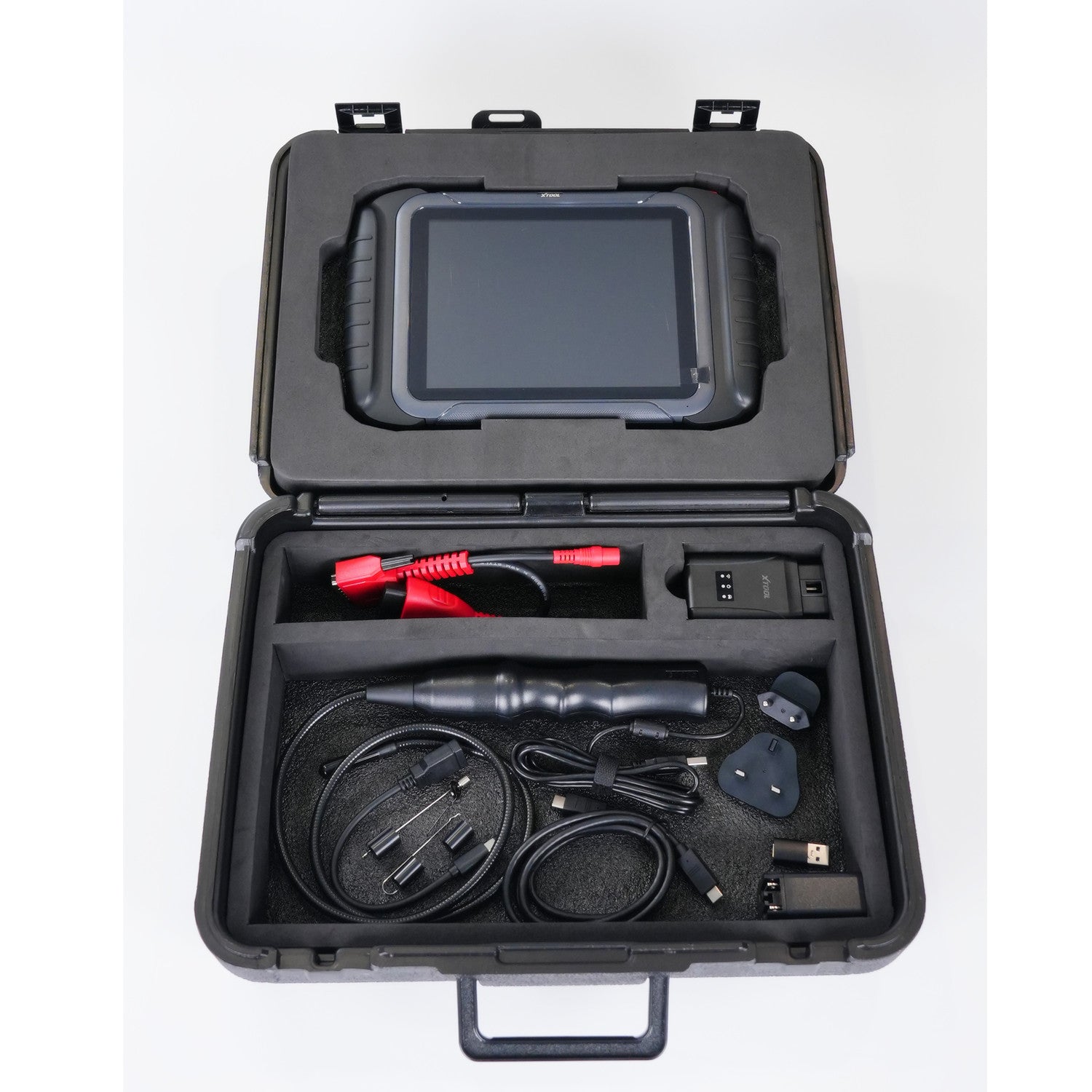

Accessories

    Tool kit
    Certificate of Quality
    Packing List
    Quick Start Guide
    Carton
    XV100 Endoscope (Separate packaging)

Main Units

    Power adapter
    US power cable
    EU power cable
    UK power cable

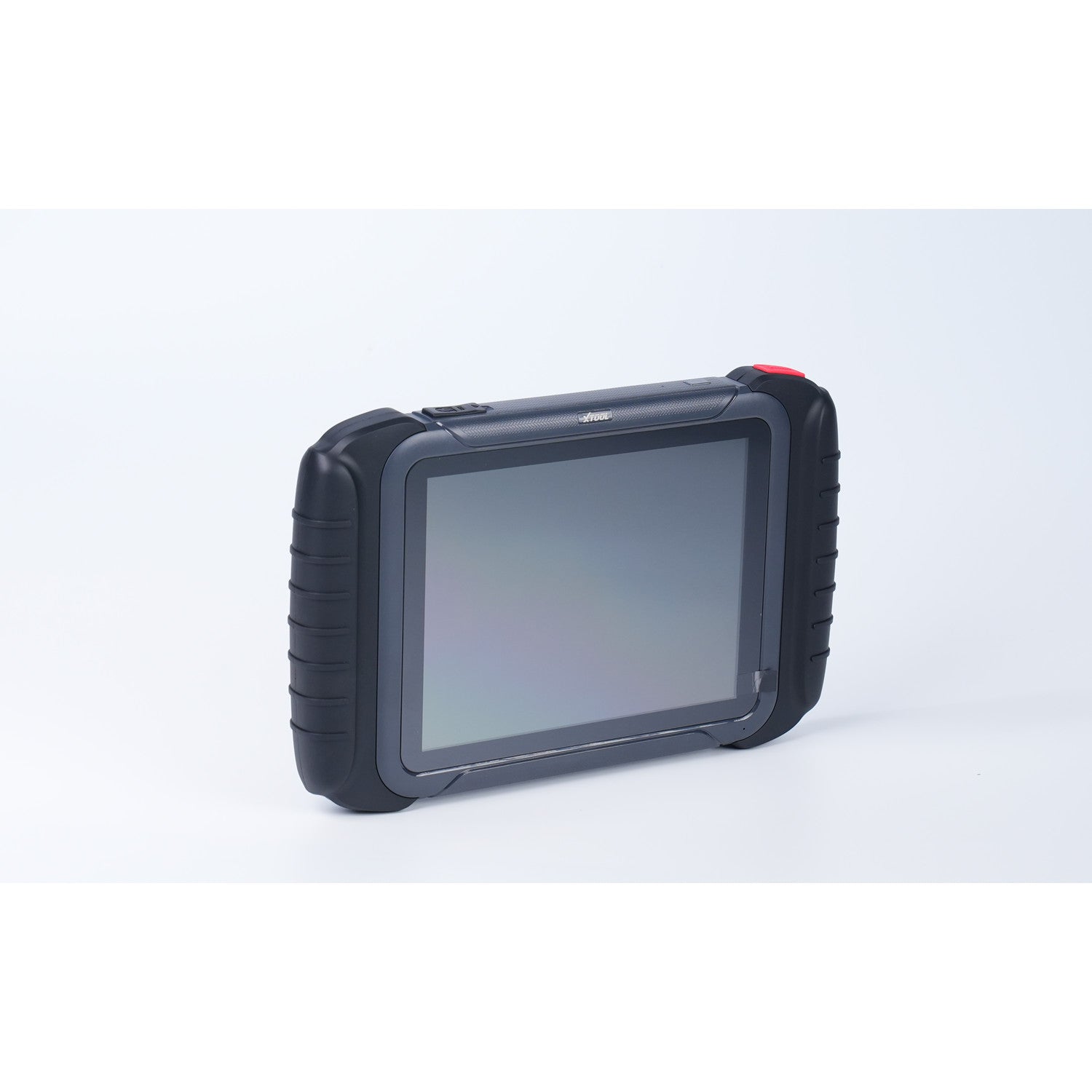

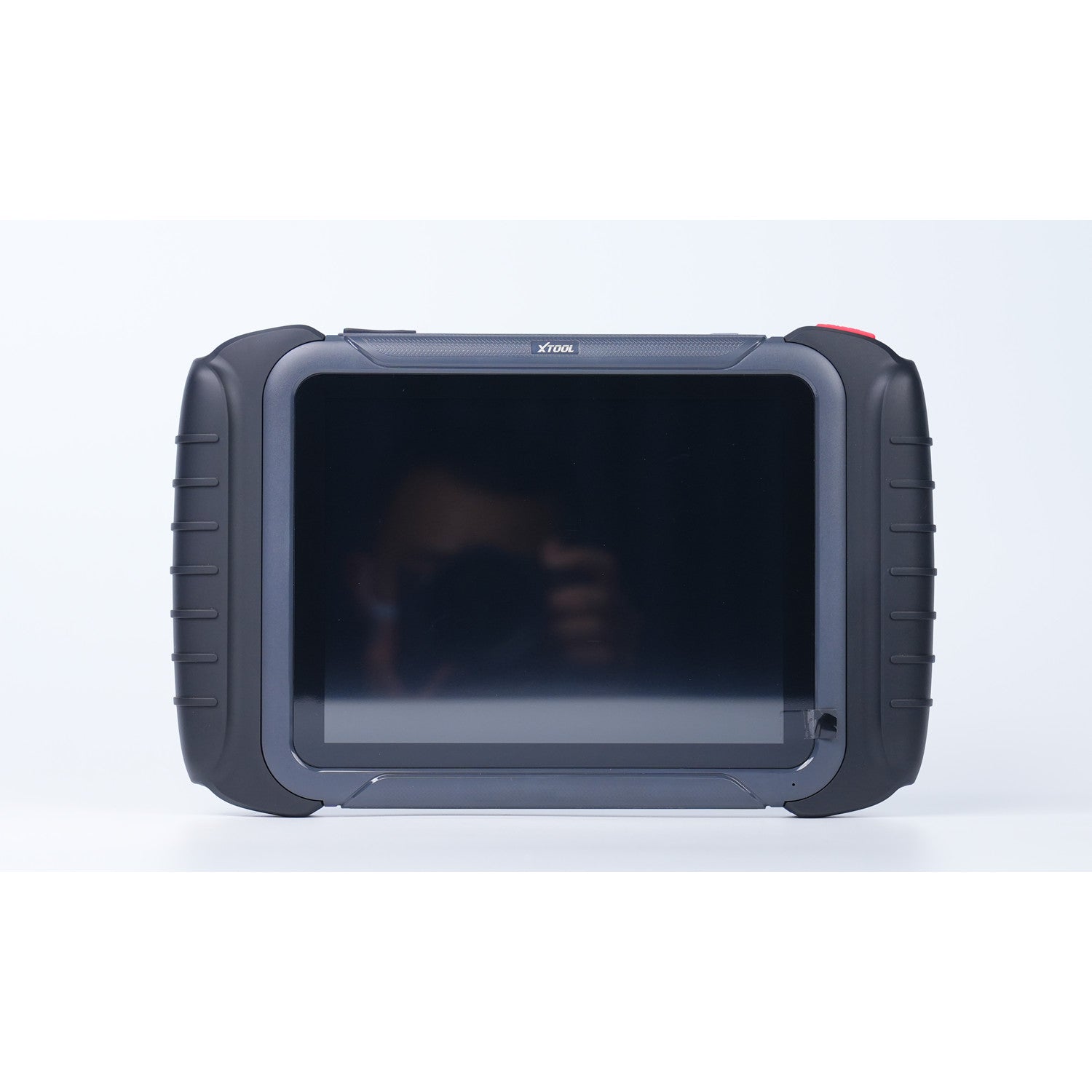

    Tablet
    VCI box
    USB cable
