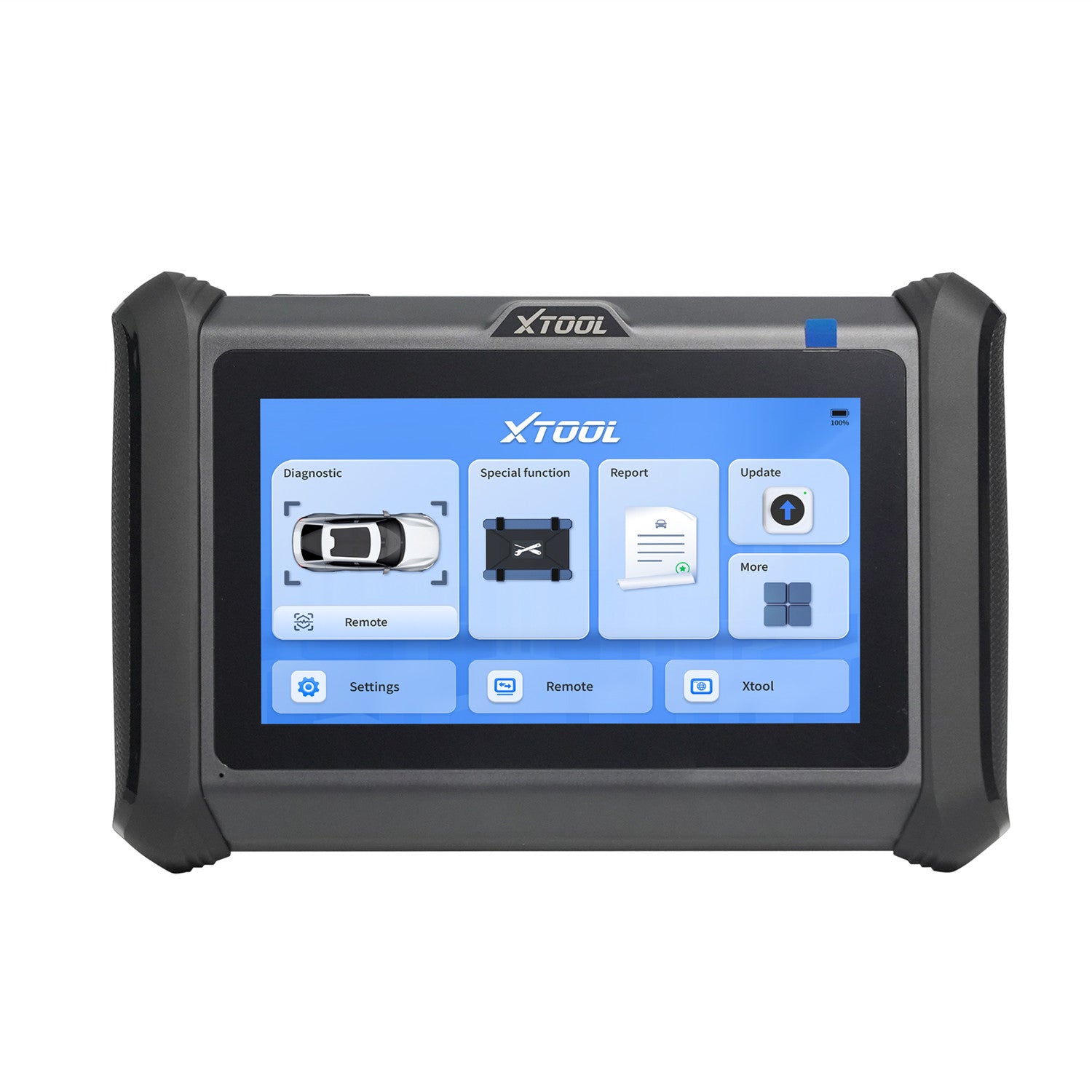

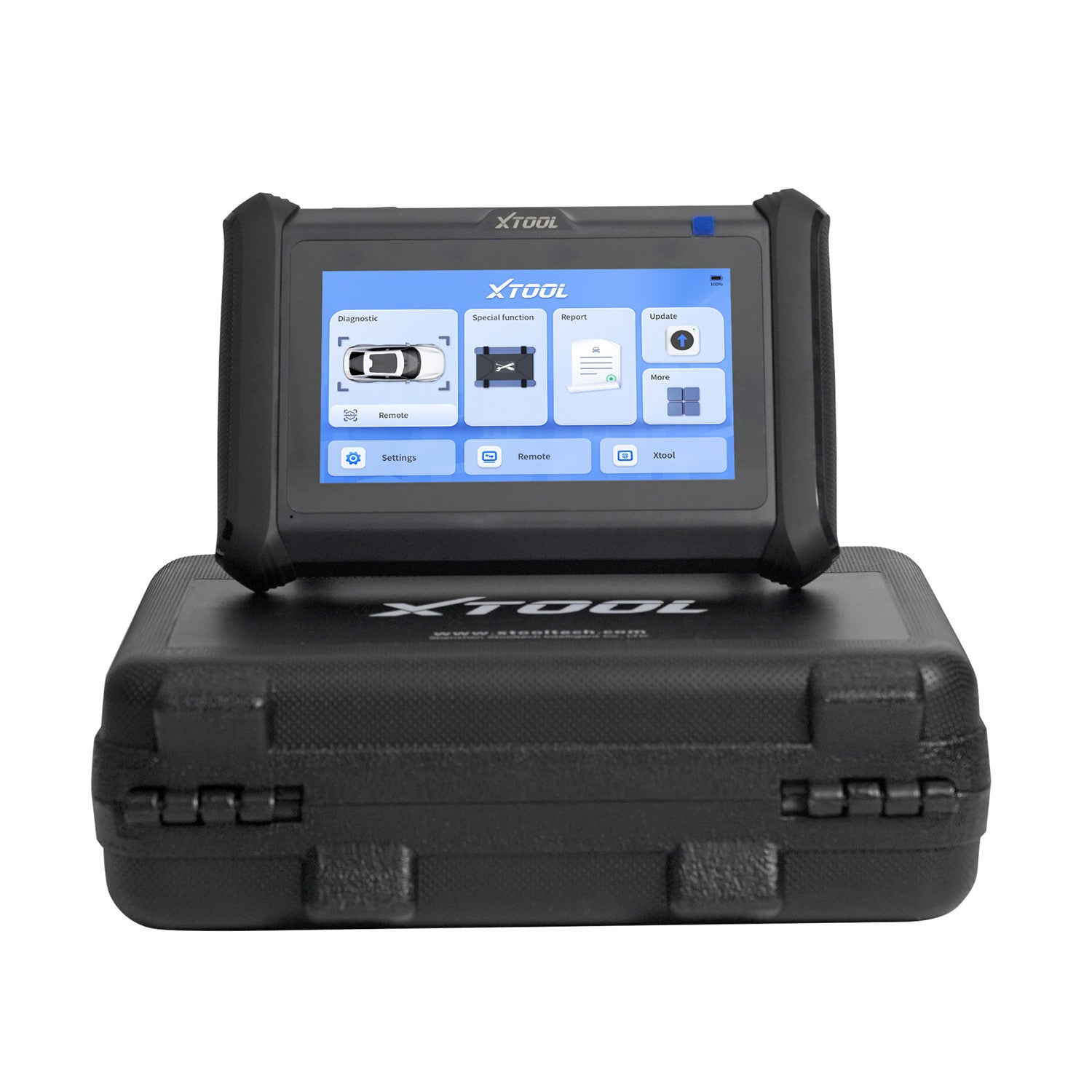

XTOOL XT70W Smart Diagnostic System

XT70W is an automotive smart diagnostic system with a 7-inch LCD display and Android 10 OS, which is designed for mechanics, electricians, and car maintenance shops. It supports full-system automotive diagnostics, including reading ECU version information, reading fault codes, live data, and freeze frames. 30+ common special functions are supported, such as throttle matching, ABS bleeding, maintenance light reset, EPB test, SAS calibration, BMS reset, injector coding, DPF regeneration, and TPMS reset. With 98% vehicle coverage, it works on more than 100 brands and 10,000 cars.

Description

    ● Read/clear codes for all available systems
    ● Display live data in text, & graph for easy data review
    ● Export the data streams over a certain period of time as CSV files
    ● Support active test and special functions under system menu
    ● Performe to bleed the brake system to restore ABS brake sensitivity
    ● Clear PM(Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance
    ● Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity
    ● Compatible with Videoscope with optional purchase

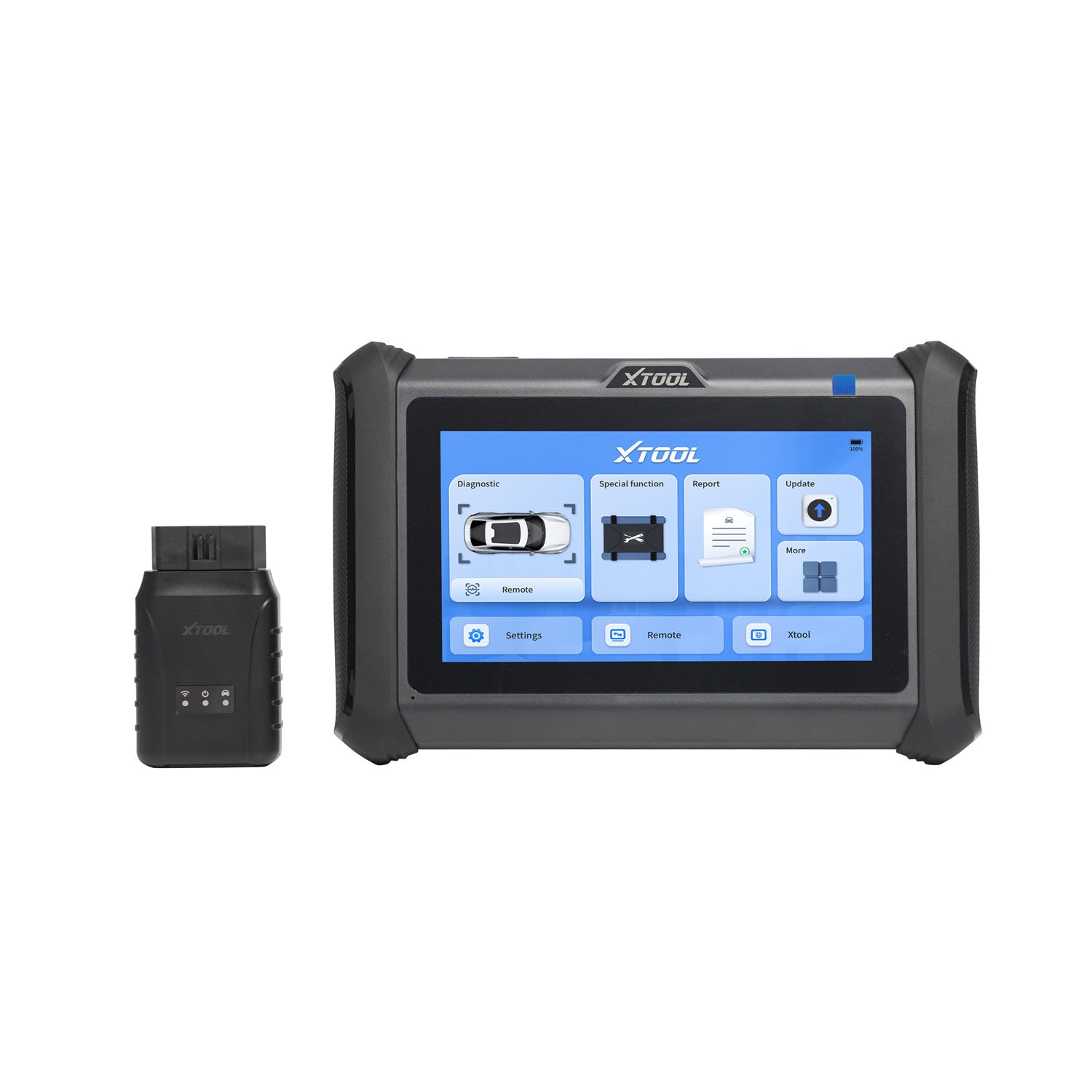

    ● V113 wireless Wi-Fi vehicle communication interface supporting the latest communication protocols, including CANFD and DoIP

Parameters

    Operating System：Android 10
    Processor：4 Core 1.50GHz
    Memory：2G RAM, 64G ROM
    Display：7-inch, 1024×600P
    Communication Method：WiFi
    Connectivity：Type-C, USB 3.0
    Battery：2500mAh, 7.2V
    Auto Input/Output：Microphone, Speaker
    Working Voltage：9-32V
    Working Temperature：0 to 40℃
    Storage Temperature：-10 to 50℃
    Humidity：<90%
    Compatible Protocol：CANFD, DOIP
    Dimension (L×W×H)：234.6×31.0×149.0 mm
    Camera：8.0 Megapixel, AF with Flashlight

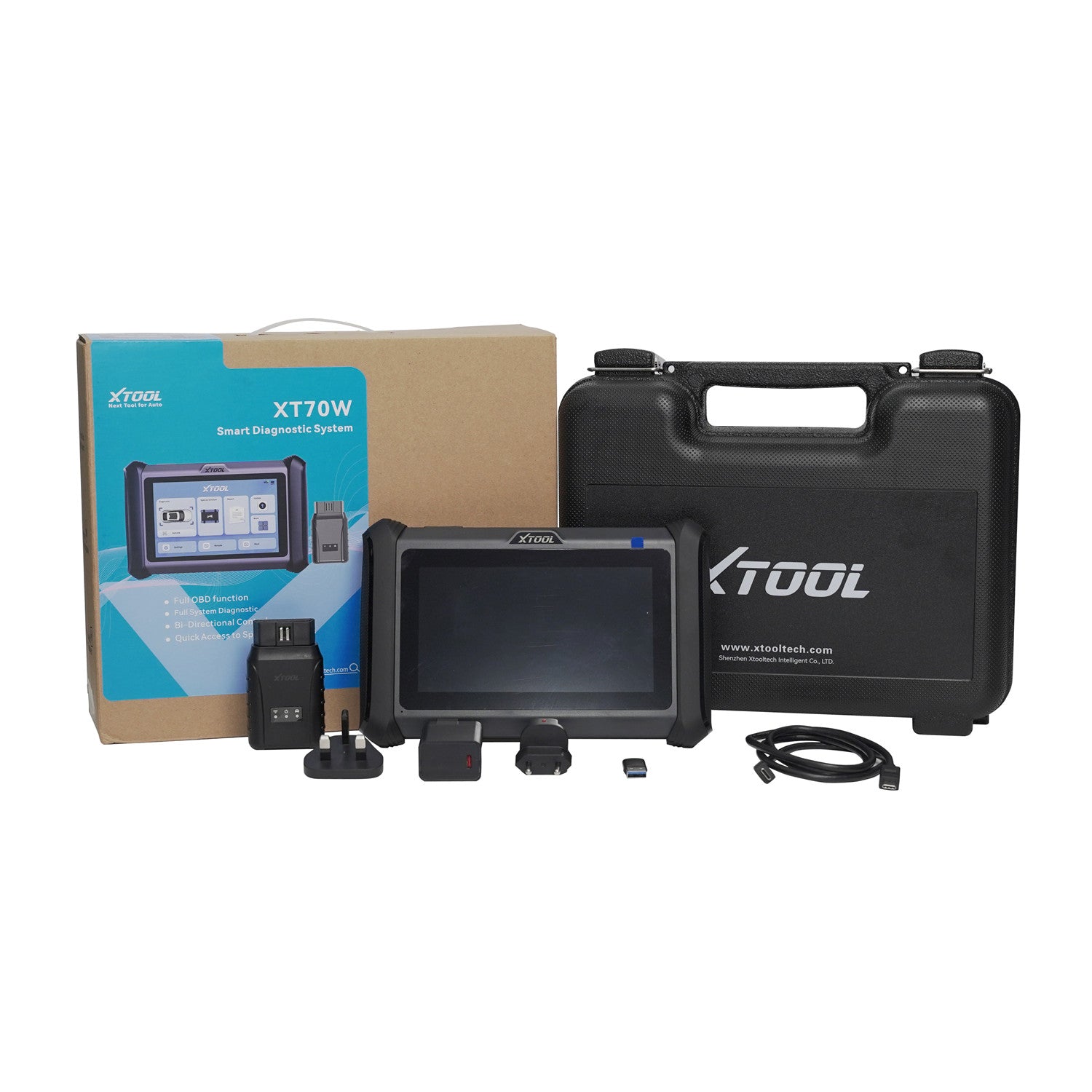

Accessories

    Color Carton
    Packing List
    Certificate of Quality

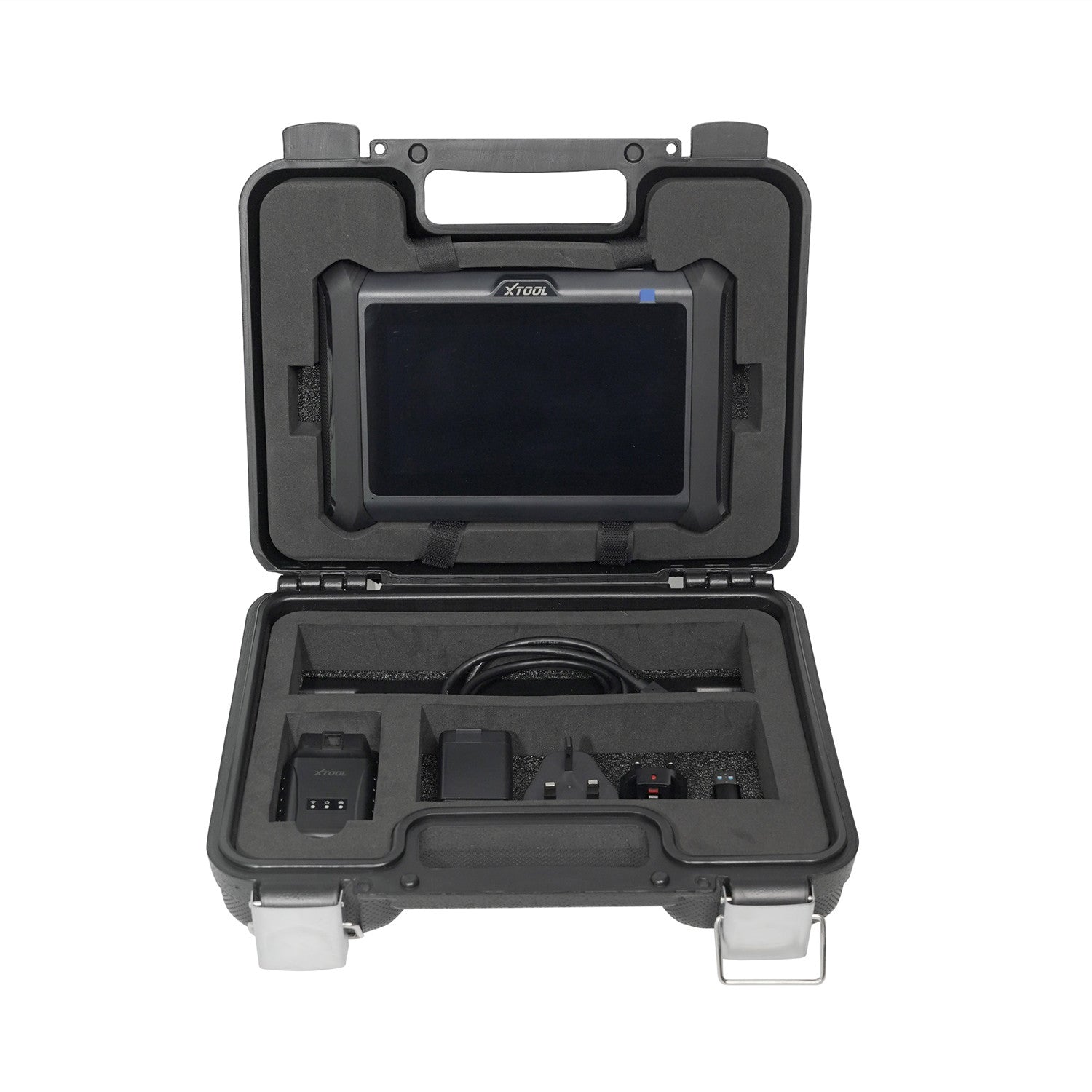

    Tool Case
    Quick Start Guide

Main Units

    P720 Tablet

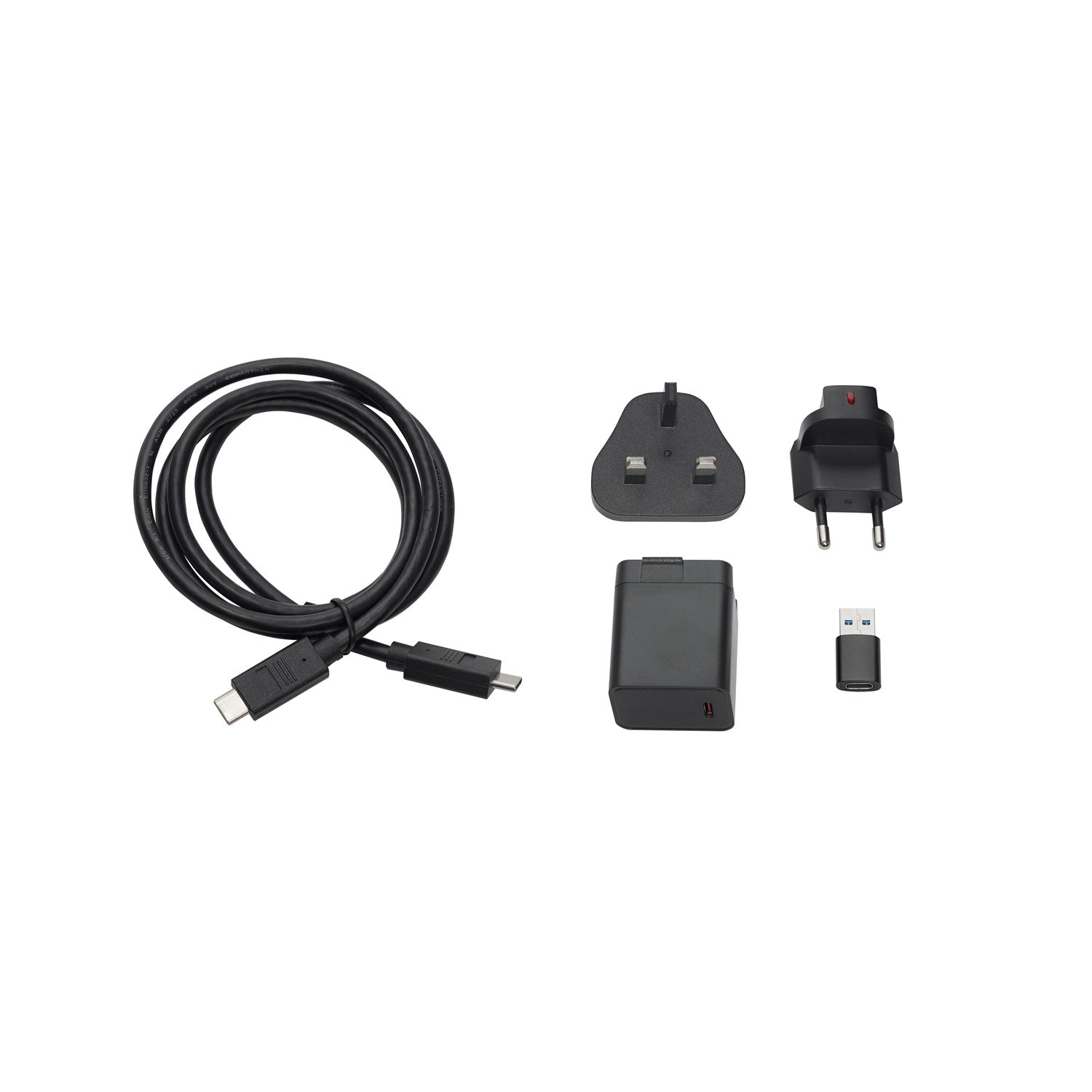

    Charger for Tablet
    Charger US Adapter
    Charger EU Adapter
    Charger UK Adapter

Test Connectors

    USB Cable
