XTOOL X100PADS Auto Key Programmer

X100PADS is an automotive key programming device with a 7-inch LCD display and Android 10 OS, which is designed for locksmiths, vehicle owners, and car mechanics. It supports vehicle programming for 2,000+ models under 60+ car manufacturers, providing solutions for reading immobilizer data, extracting PIN codes, adding keys, all keys lost, remote programming, etc. At the same time, X100PADS can also perform basic diagnostic functions like reading and clearing fault codes and checking vehicle live data in order to locate issues hidden inside vehicles. X100PADS also supports 30+ service functions to make maintenance a lot easier.

Description

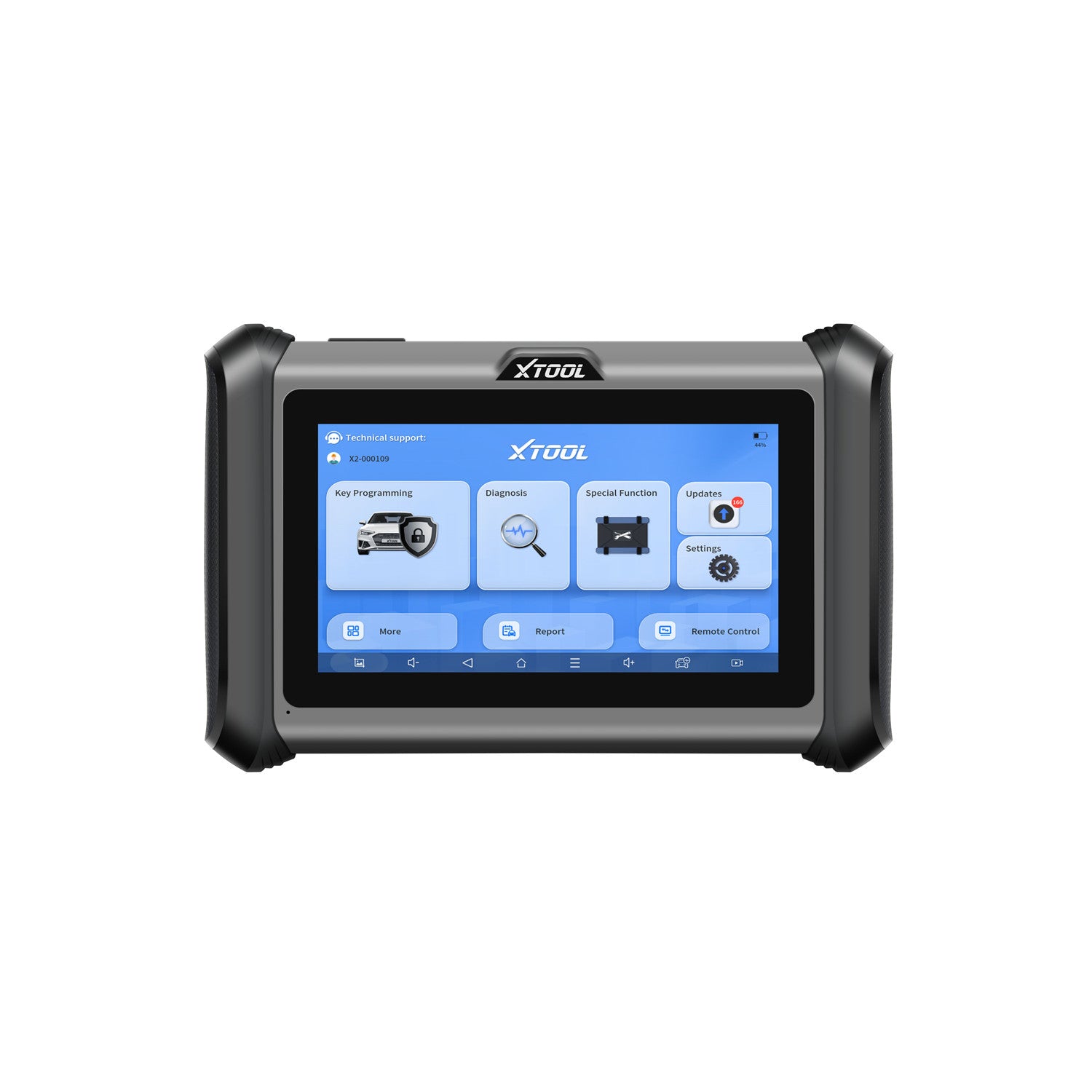

    ● Locksmith-approved 7-inch engineering tablet
    ● Support key programming for most of the models on market
    ● Can match keys in both add key/all keys lost situations
    ● Comes with EEPROM Adapter as standard to help with module benchworks
    ● Read/Clear fault codes after programming process
    ● Contains 20+ special functions that helps with vehicle maintenance

Parameters

    Operating System：Android 10
    Processor：Quad-core processor 1.5GHz
    Memory：2G RAM, 64G ROM
    Display：7.0-inch touch screen with 1024×600 resolution
    Communication Method：Wired
    Connectivity：DB15 TO VGA, USB Type-C, WIFI 2.4/5G
    Sensors：Gravity Accelerometer, Ambient Light Sensor
    Auto Input/Output：Microphone, Speaker
    Battery：2500mAh, 7.3V lithium-polymer battery
    Working Voltage：9-36V
    Operating Temperature：-10 to 40℃
    Storage Temperature：-40 to 60℃
    Humidity：<90%
    Protocol compatibility：CANFD, DOIP

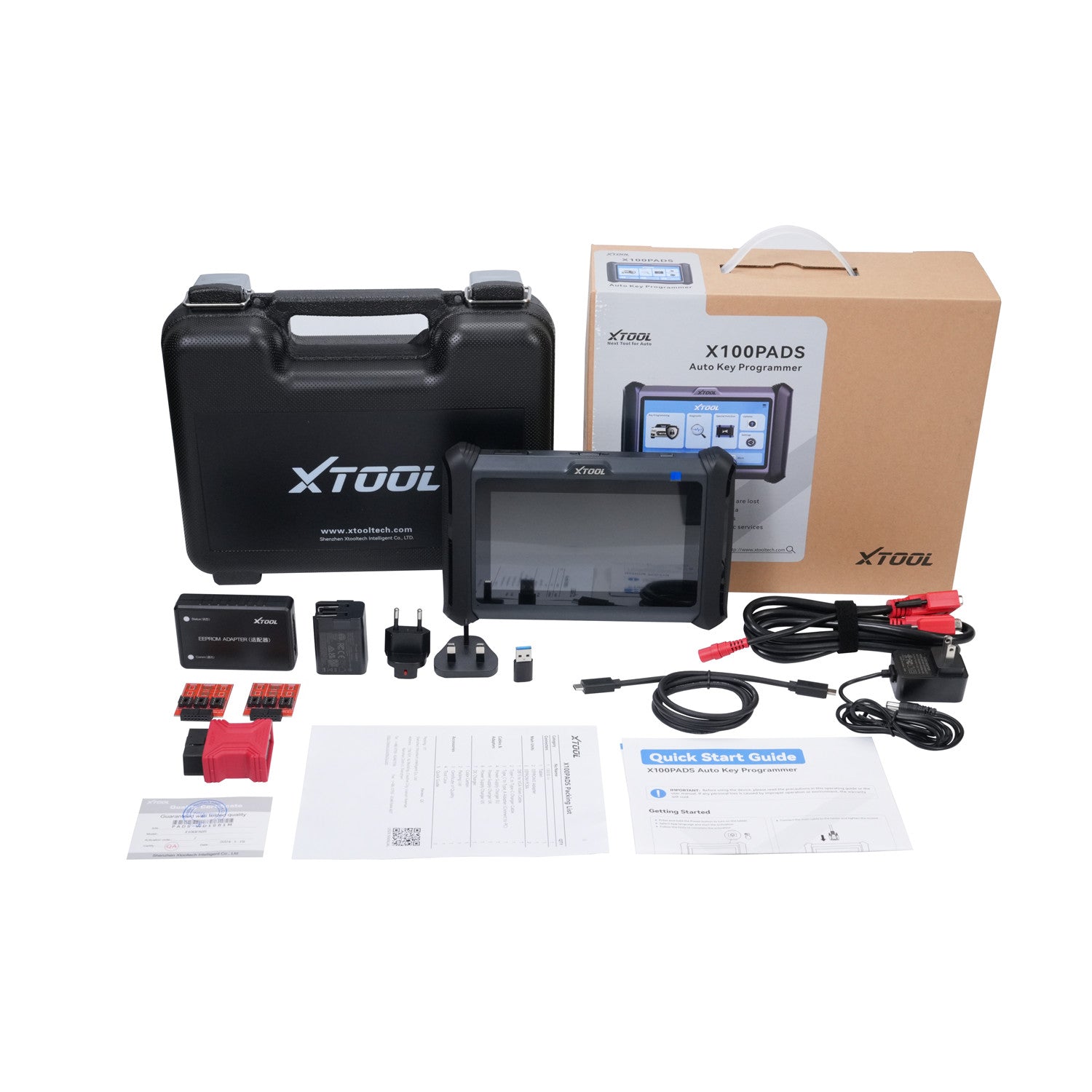

Accessories

    Color Carton
    Packing List
    Certificate of Quality

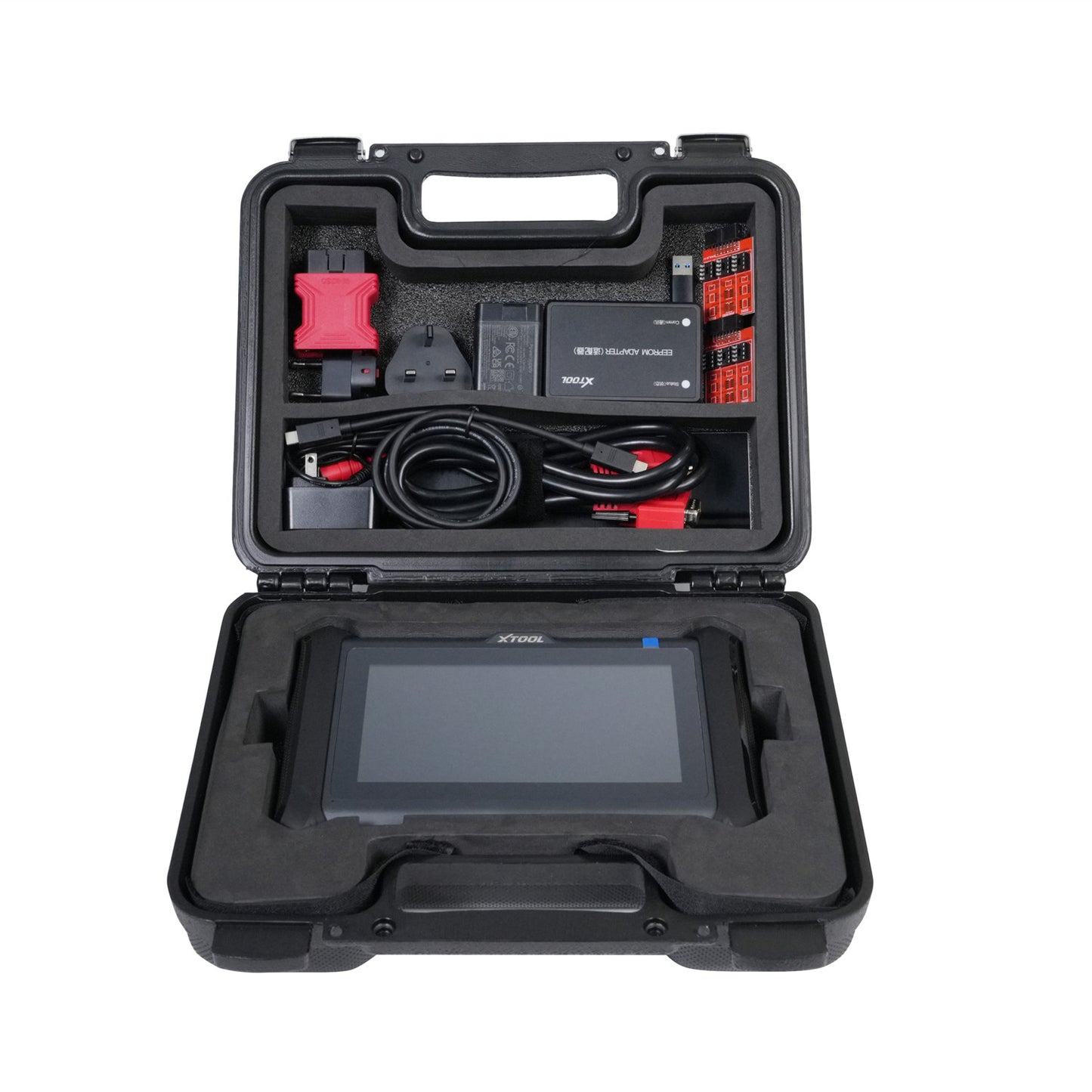

    Tool Case
    Quick Guide

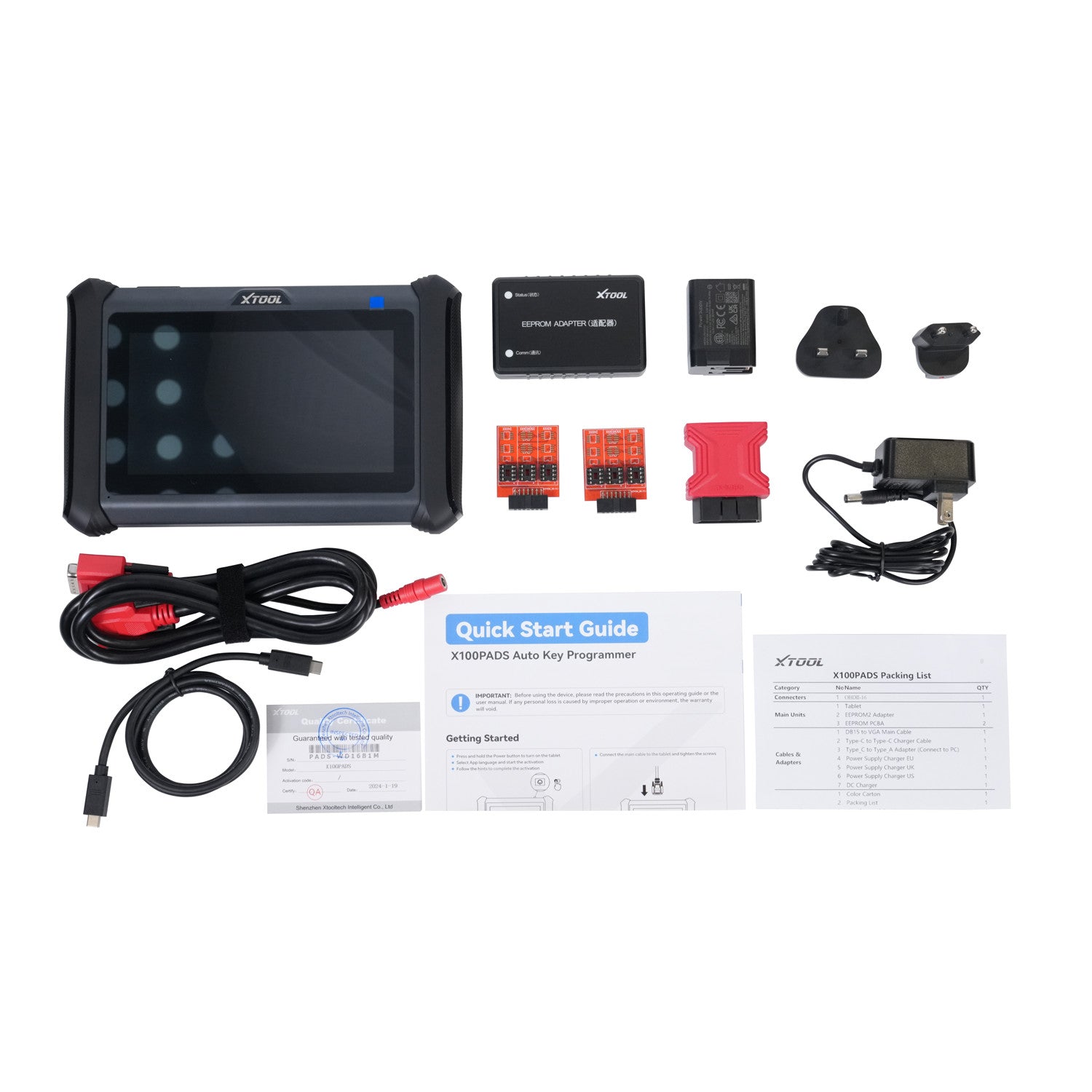

Main Units

    Tablet
    EEPROM2 Adapter
    EEPROM PCBA

Packing List

    DB15 to VGA Main Cable
    USB3.0 Data Cable (Connect to PC)
    Charger for Tablet
    Power Cable US
    Power Cable EU
    Power Cable UK

Test Connectors

    OBD2-16
