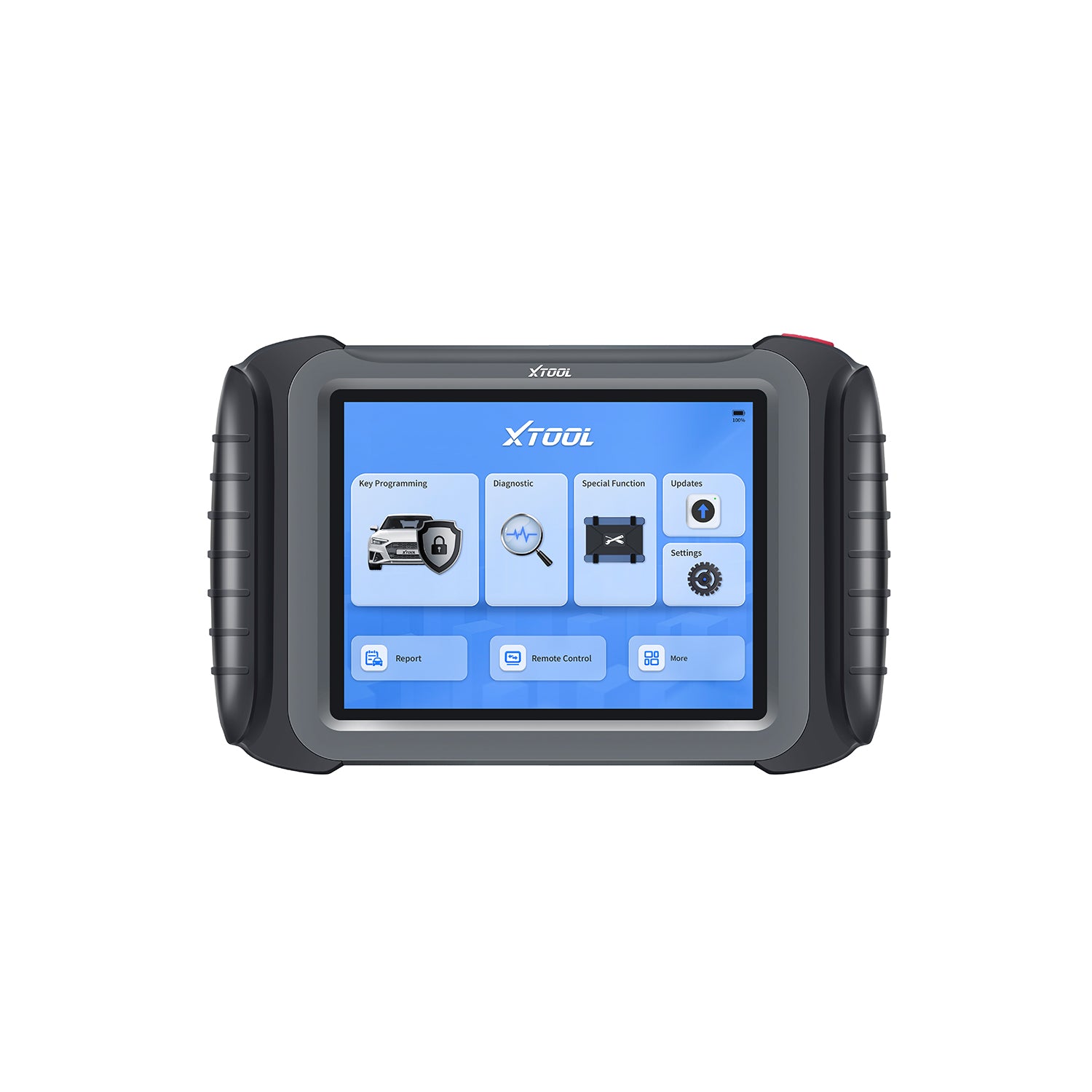

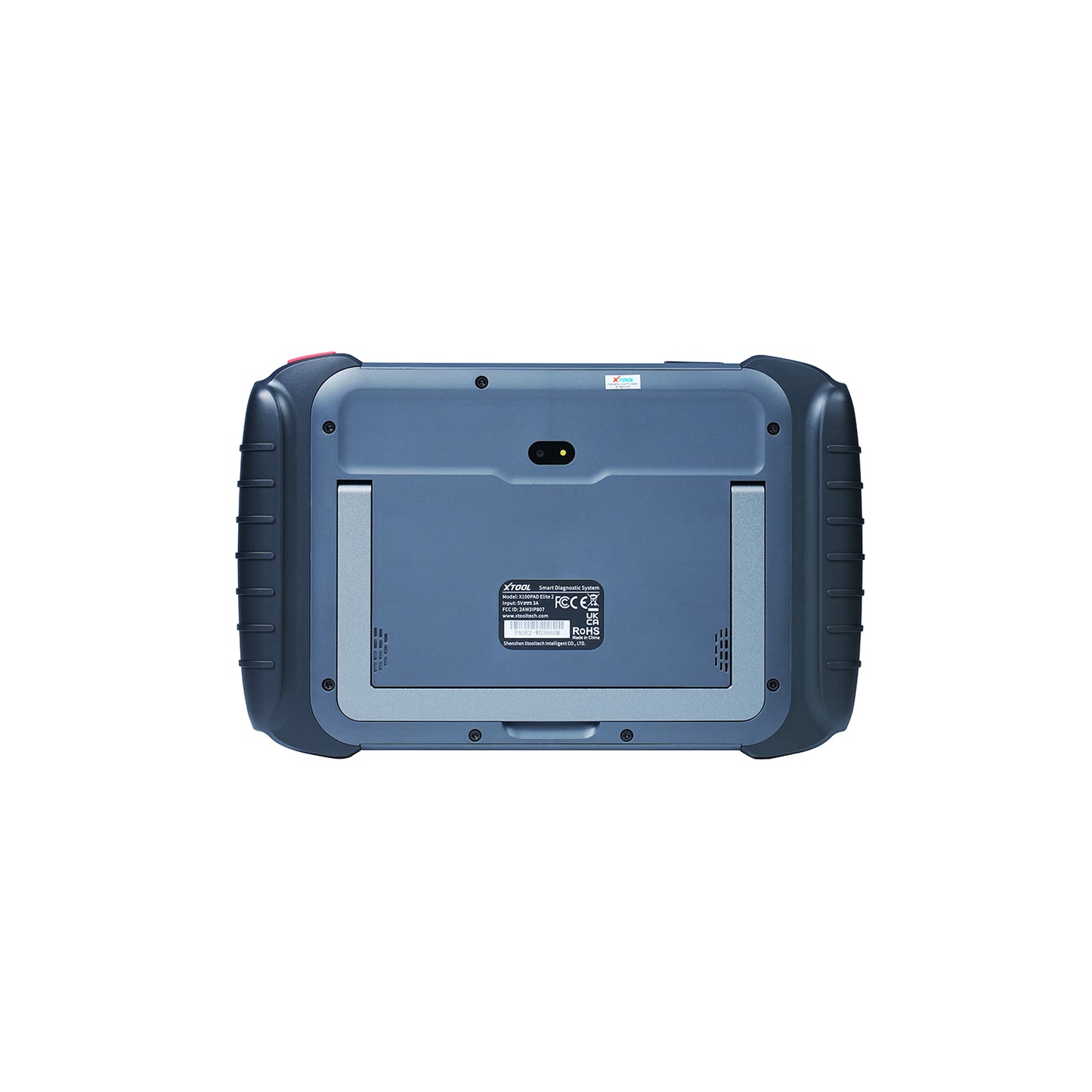

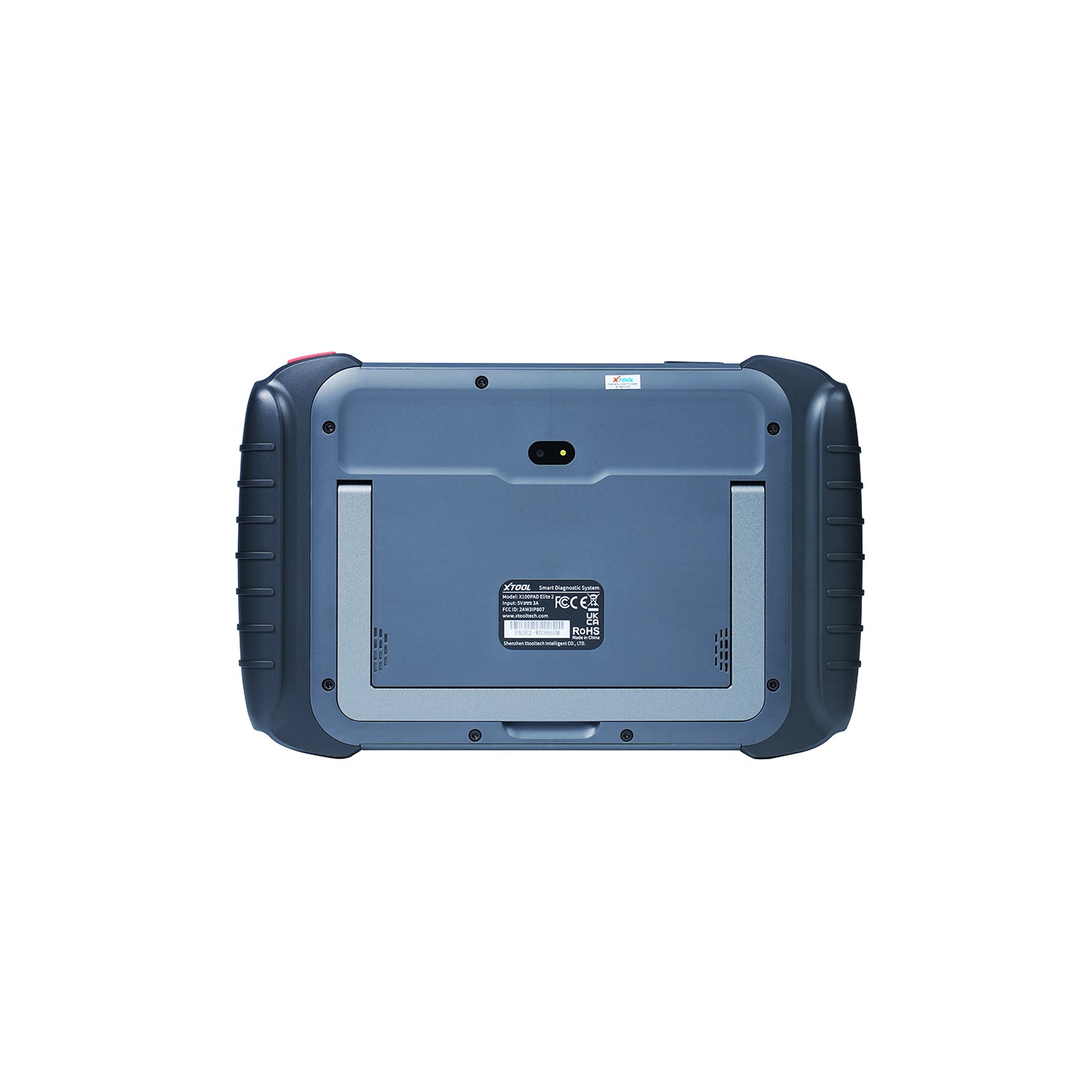

XTOOL X100PAD Elite2 Key Programmer

X100PAD Elite 2 is a professional tablet key programmer which not only provides customers with key programming, but also offers advanced special functions. X100PAD Elite 2 can perform: key programming, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, etc.

Description

    ● An excellent choice for locksmiths worldwide
    ● Support key programming for over 90% of vehicles on the market
    ● Can match keys in both add key and all keys lost situations
    ● Read and modify immobilizer data, obtains PIN codes by various methods
    ● Register new ECU/BCM/dashboard when modules need to be replaced
    ● Include diagnostic functions to solve fault codes after the programming process
    ● Contains 40+ special functions to assist with vehicle maintenance

Parameters

    Operating System：Android 10.0
    Communication Method：Wi-Fi / Wireless
    Processor：Quad-core processor 1.5GHz
    Memory：4G RAM, 64G ROM
    Display：8.0-inch touch screen with 1024×768 resolution
    Connectivity：USB Type-C / WIFI 2.4/5G
    Sensors：Gravity Accelerometer, Ambient Light Sensor
    Auto Input/Output：Microphone, Speaker
    Battery：5000mAh, 7.3V lithium-polymer battery
    Working Voltage：9-36V
    Operating Temperature：-10 to 50℃
    Storage Temperature：-40 to 60℃
    Humidity：<90%
    Protocol compatibility：CANFD, DOIP, PWM

Accessories

    Certificate of Quality

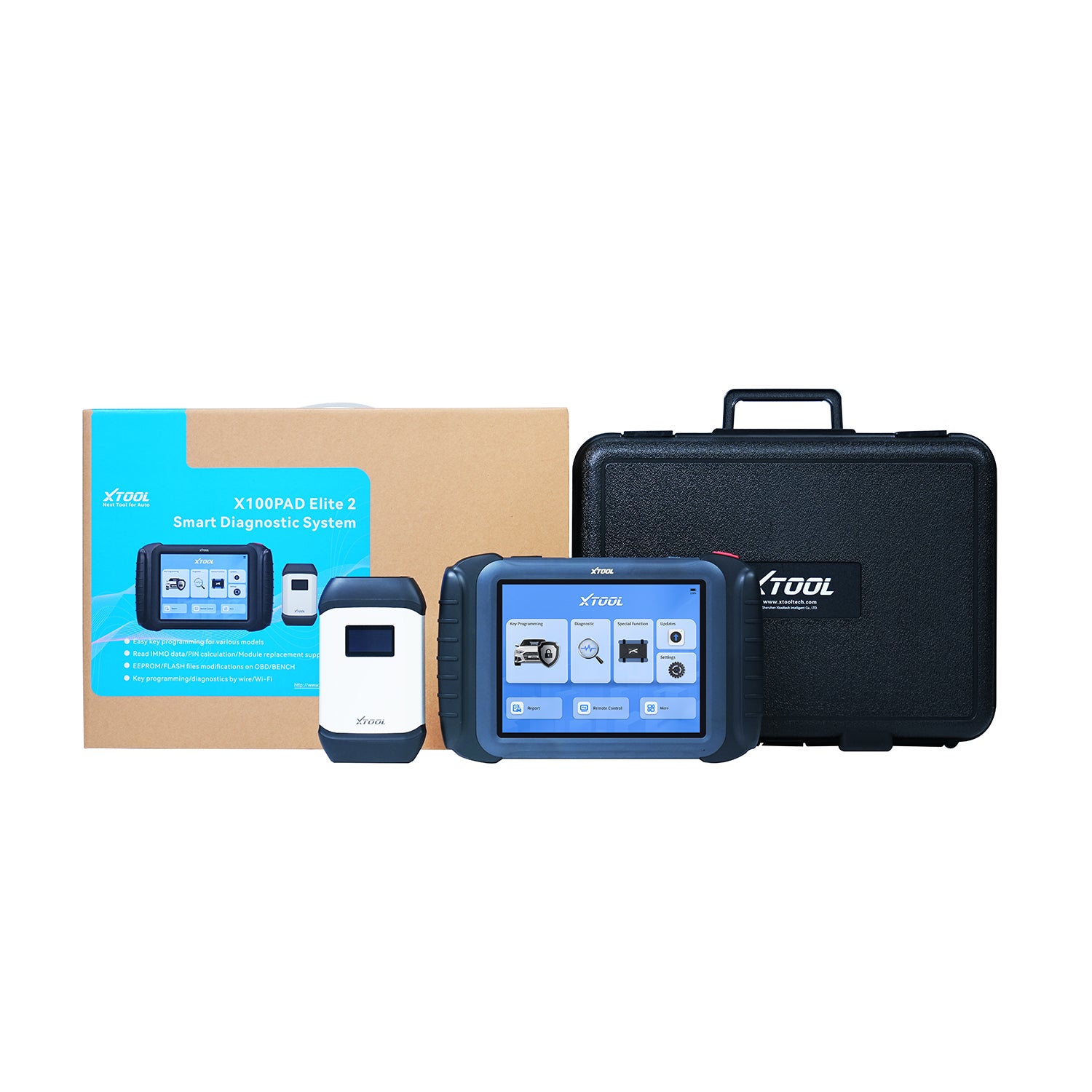

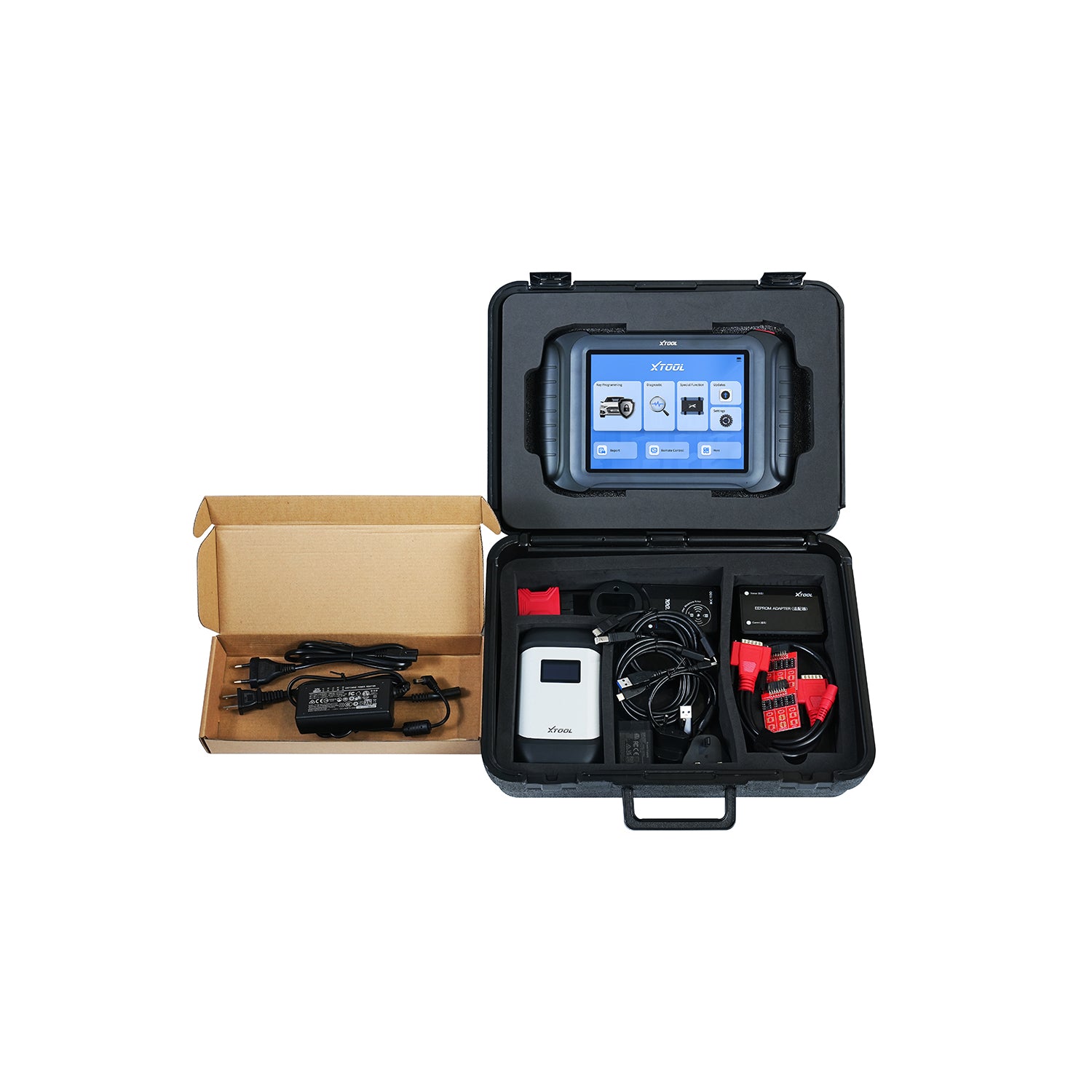

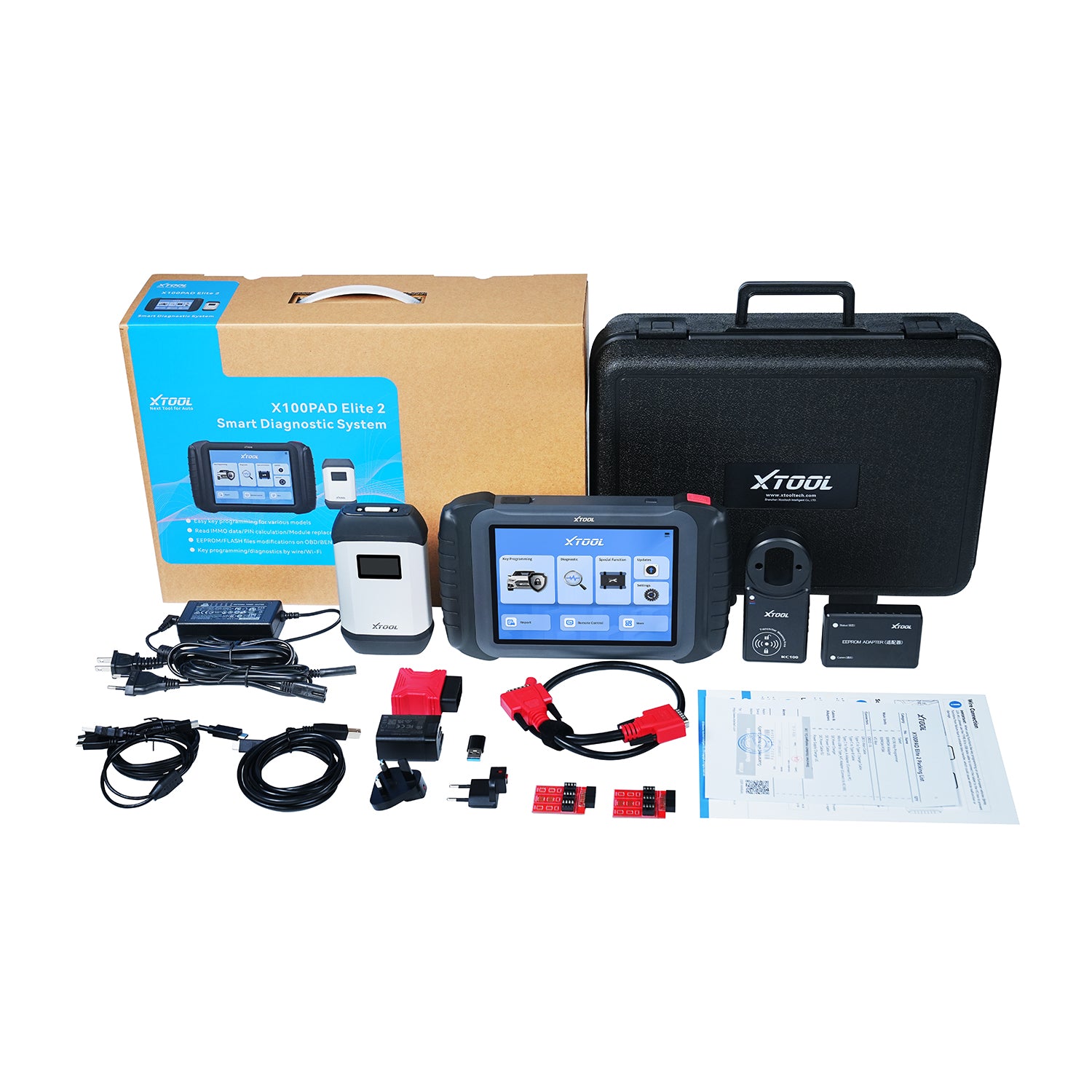

    Packing List
    Color Carton
    Tool Case
    Quick Guide

Cables & Adapters

    Power Supply Charger Adapter EU
    Type-C to Type-B Cable
    DB15 Main Cable
    Micro USB to Type A/C Adapter (Connect to KC100)
    Type-C to Type-C Charger Cable
    DC Power Cable EU
    Power Supply Charger Adapter UK
    DC Power Charger
    DC Power Cable US
    Power Supply Charger US

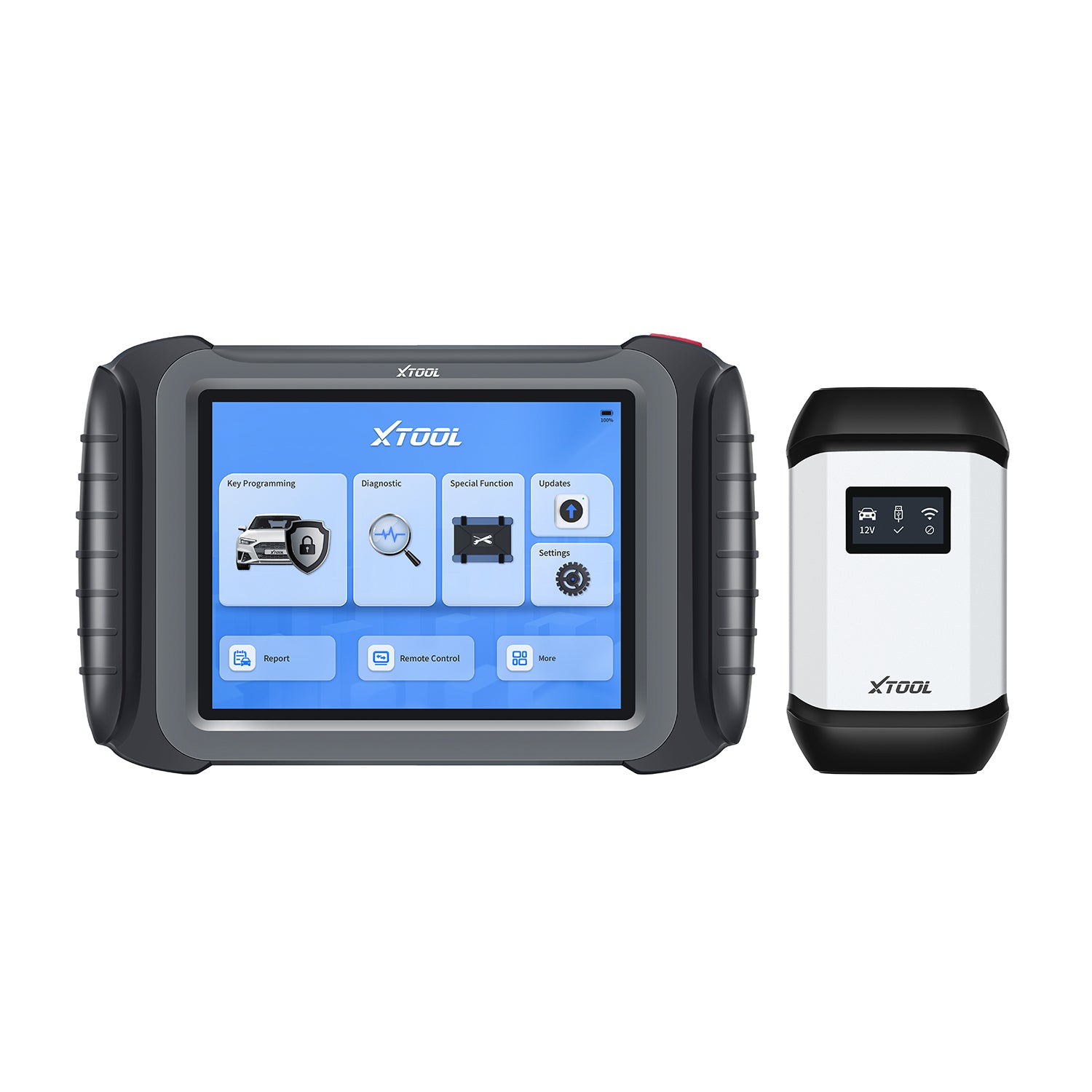

Main Units

    VCI Box
    Tablet
    EEPROM PCBA
    KC100 Key Programmer
    EEPROM Adapter

Test Connectors

    OBDⅡ-16

Enhance your key programming capabilities by bundling the X100 PAD Elite II with the KC501 — the ideal match for locksmiths and professionals.
