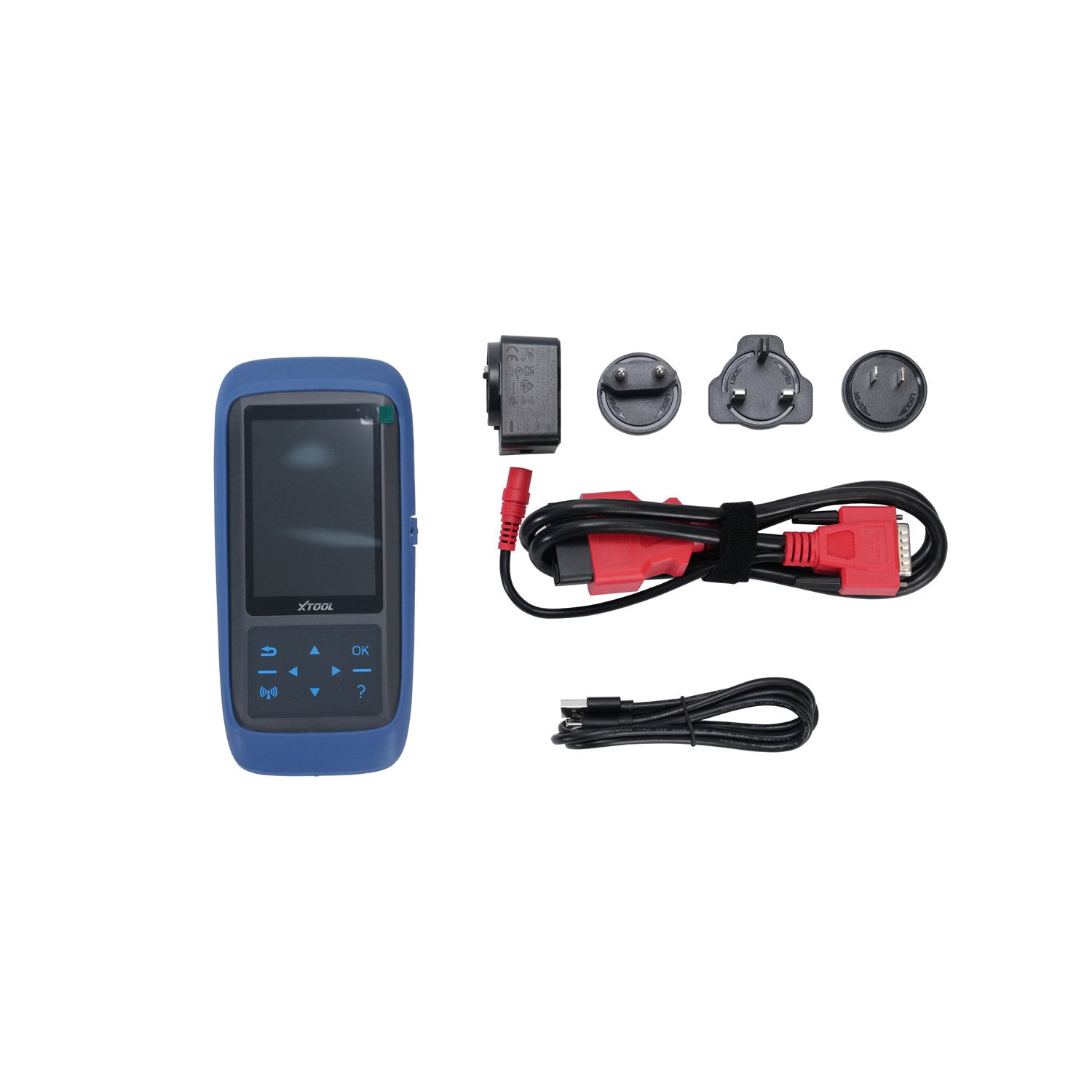

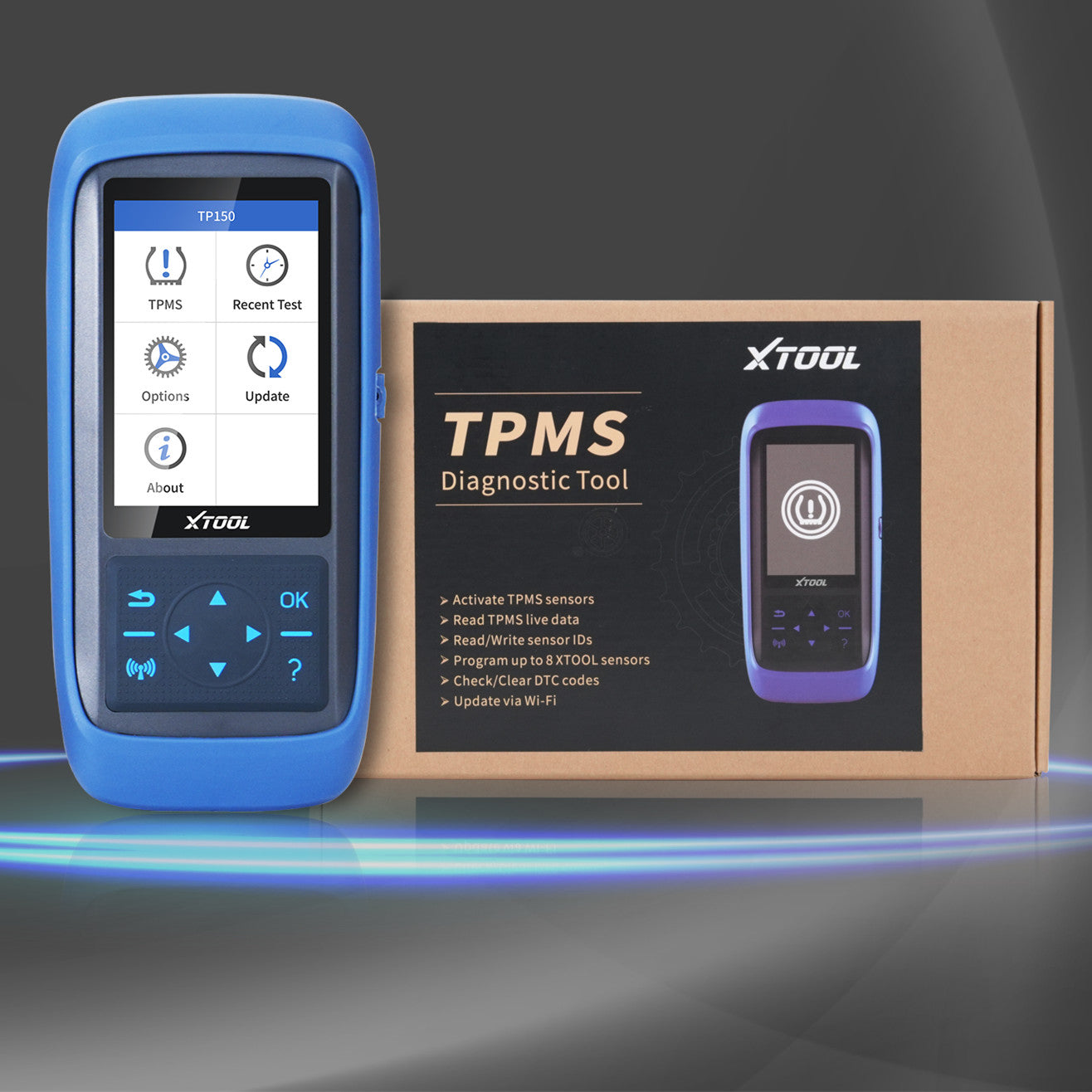

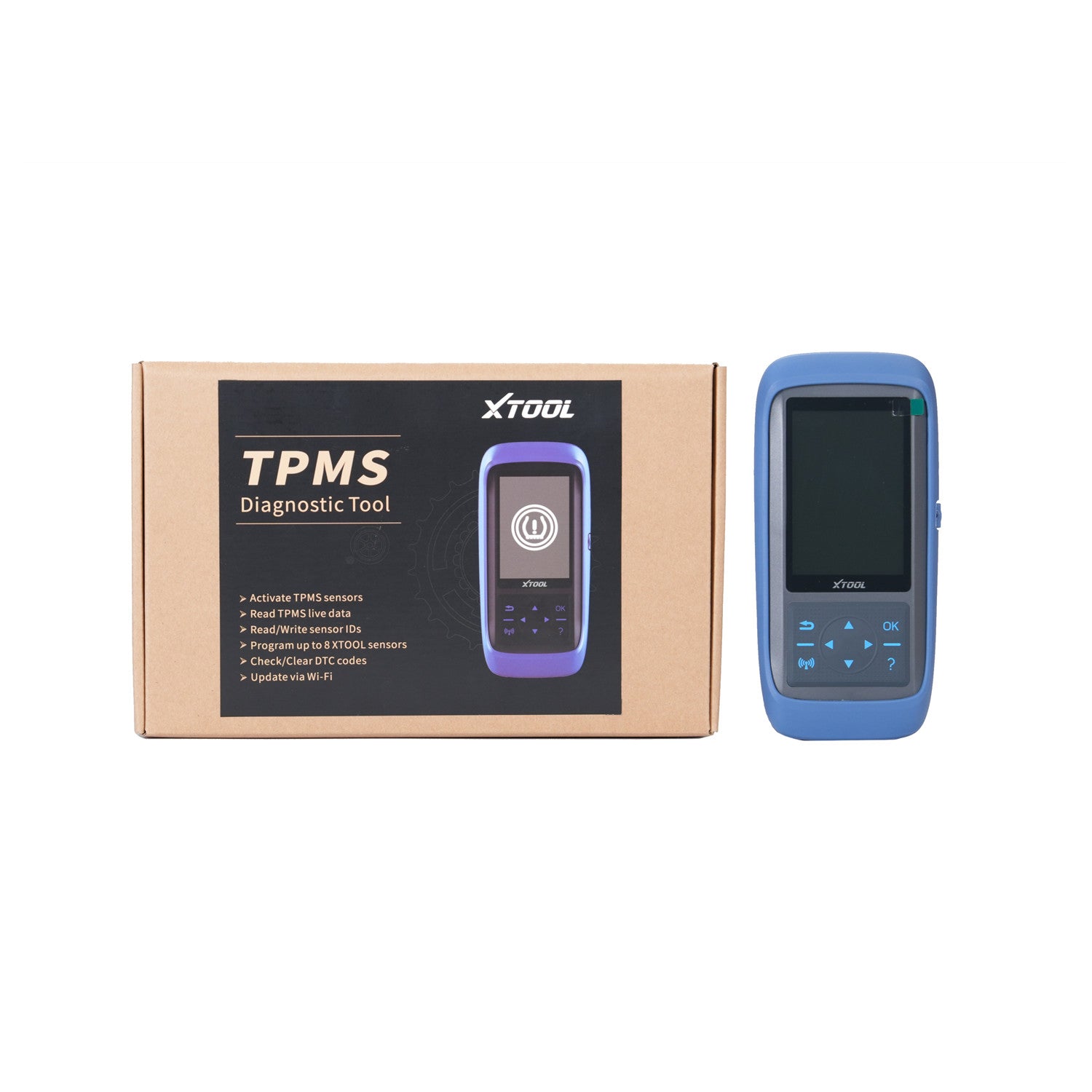

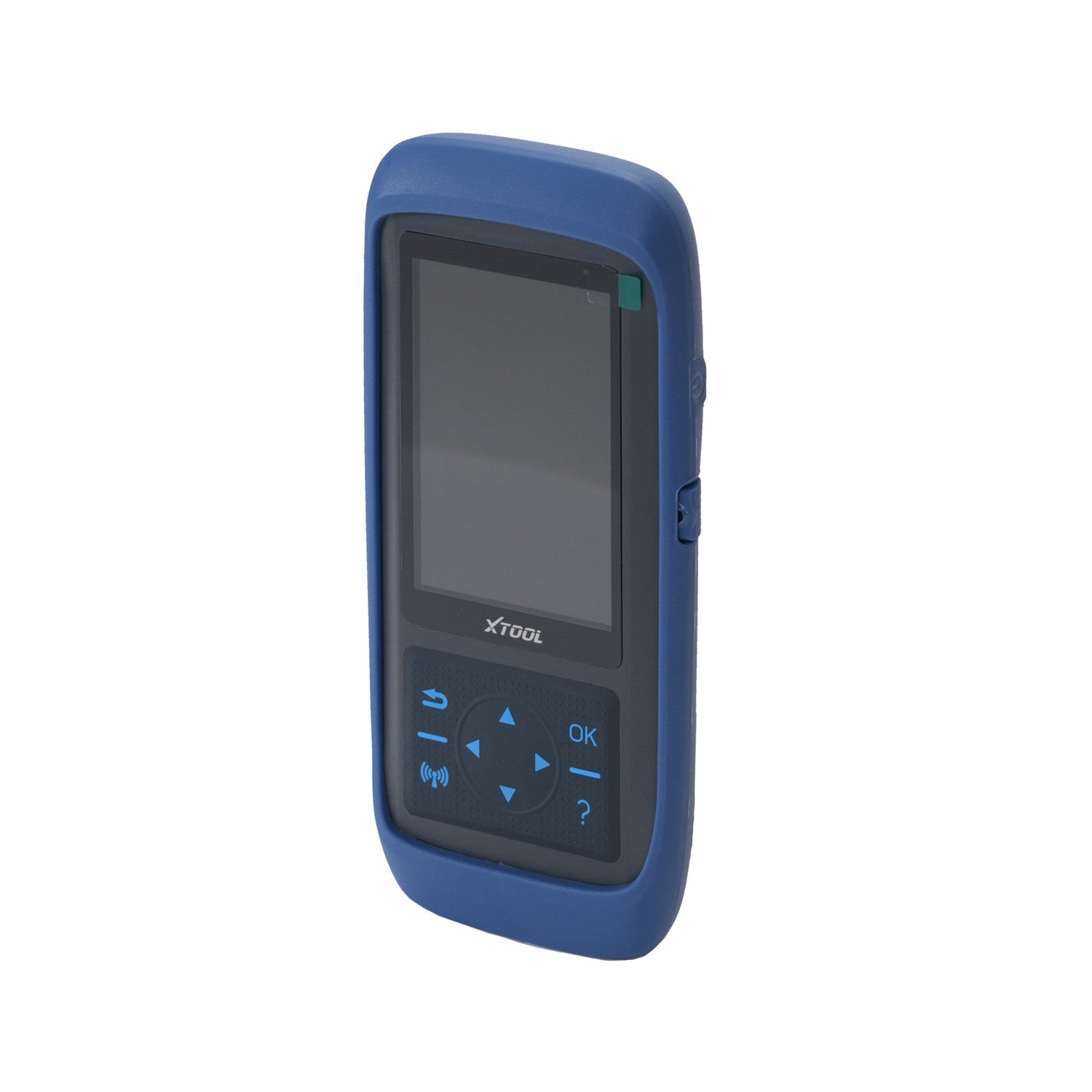

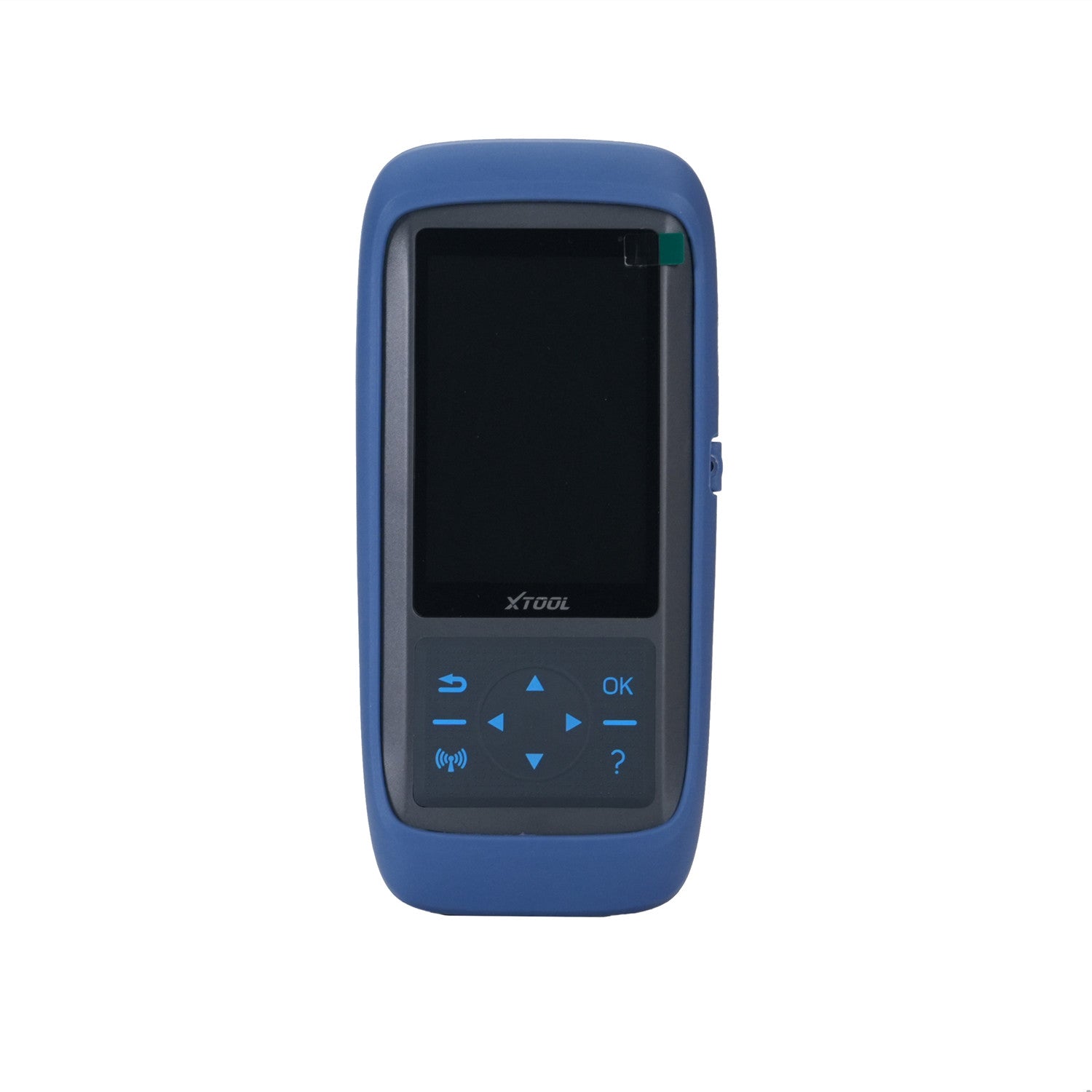

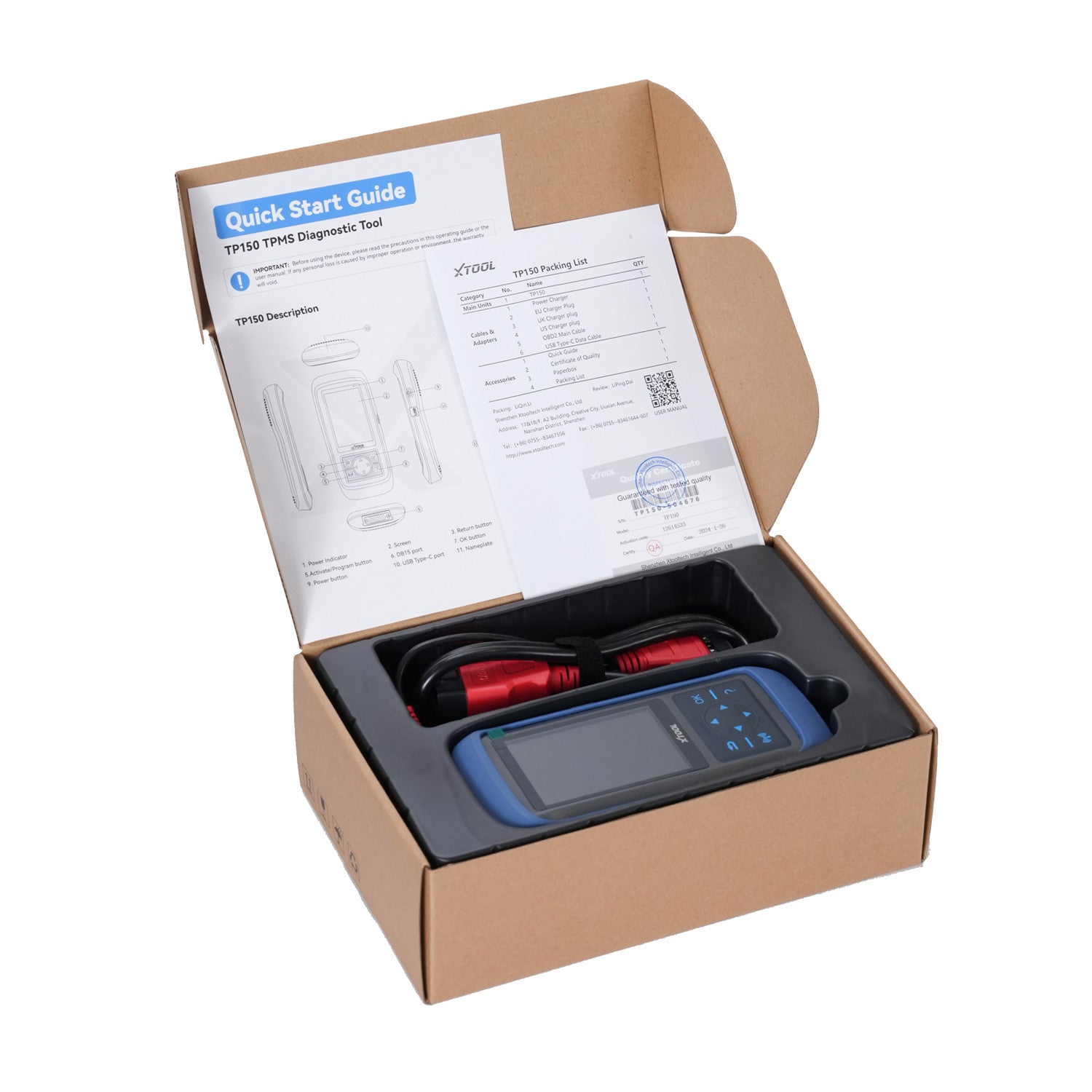

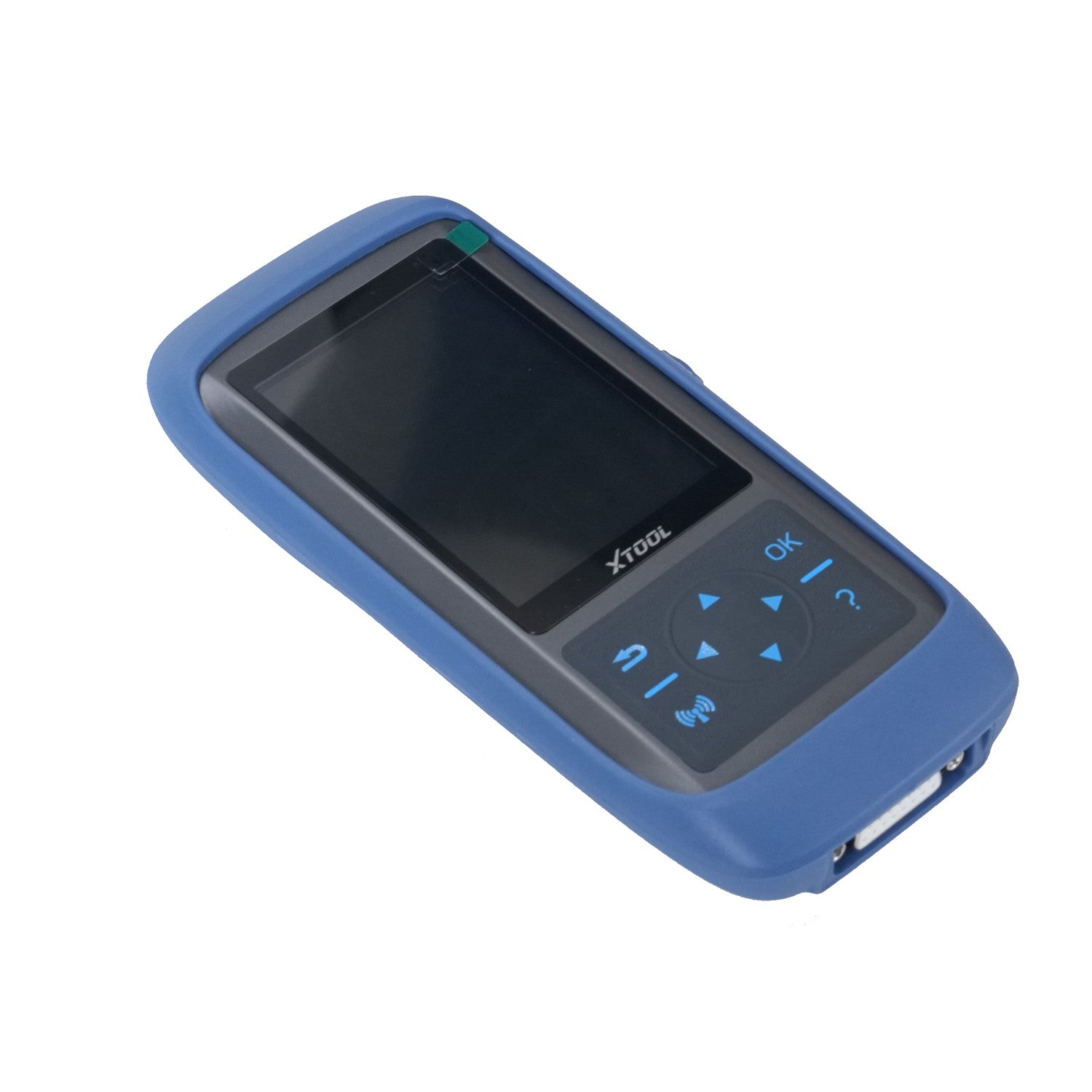

XTOOL TP150 Tire Pressure Diagnostic Device

TP150 is a special inspection device launched by Xtool for the automotive tire pressure diagnosis market, which integrates tire pressure programming, tire pressure diagnosis, and tire pressure matching. It supports activation of 315MHz and 433MHz tire pressure sensors, can perform tire pressure diagnosis on thousands of models, and can wirelessly program 1-8 TS100 universal programmable tire pressure sensors, which makes it suitable for different models.

Description

    ● Program up to 8 sensors
    ● TPMS status check
    ● Read/Check/Relearn Tire-Pressure Sensors on the vehicle
    ● Check TPMS fault codes
    ● Display vehicle relearn procedures / Perform relearn via OBD or sensor triggering
    ● Activate 315/433MHz tire pressure sensors
    ● FREE software update via Wifi connection & 1Yr Warranty
    ● Display sensor ID, battery condition (on select sensors), tire pressure & temperature
    ● Software Updates via PC or Wi-Fi / Easy-To-Use Navigation
    ● 4-inch Color Display 320x480 dpi
    ● 3000mAh Lithium-polymer Battery

Parameters

    Screen：3.95 inch 320*480 TFT-LCD colors screen
    MCU：IC STM32
    TF Card：8G Storage
    Capacity：3000mAh，Max charging current 1.2A，USB charging current 500mA
    Operating temp.：-10℃~60℃
    Storage temp.：-20 ℃~70℃
    Size：200×92×33mm
    Weight：0.4kg

Performance Highlights

    Universal TPMS Sensor Activation (315 MHz & 433 MHz): Triggers nearly all OE and aftermarket sensors.

    Real-Time Sensor Data Readout: Displays sensor ID, tire pressure, temperature, battery status, and frequency.

    TPMS Sensor Relearn: Supports both OBD and stationary relearn on 99% of global vehicles.

    Sensor Programming for XTOOL TS100 Sensors: Offers 4 programming methods—auto ID, manual input, copy by activation, or copy via OBD.

    TPMS System Diagnostic: Reads/clears DTCs and resets TPMS warning light.

    Large 4″ Color Display: Clear, user-friendly interface (320×480 TFT-LCD).

    Robust Build & Battery: 3000 mAh rechargeable battery; durable design built for shop environments.

    Lifetime Software Updates: Wifi/PC updates included, plus 2-year warranty.

    Wide Vehicle Coverage: Compatible with thousands of models across American, Asian & European brands.
