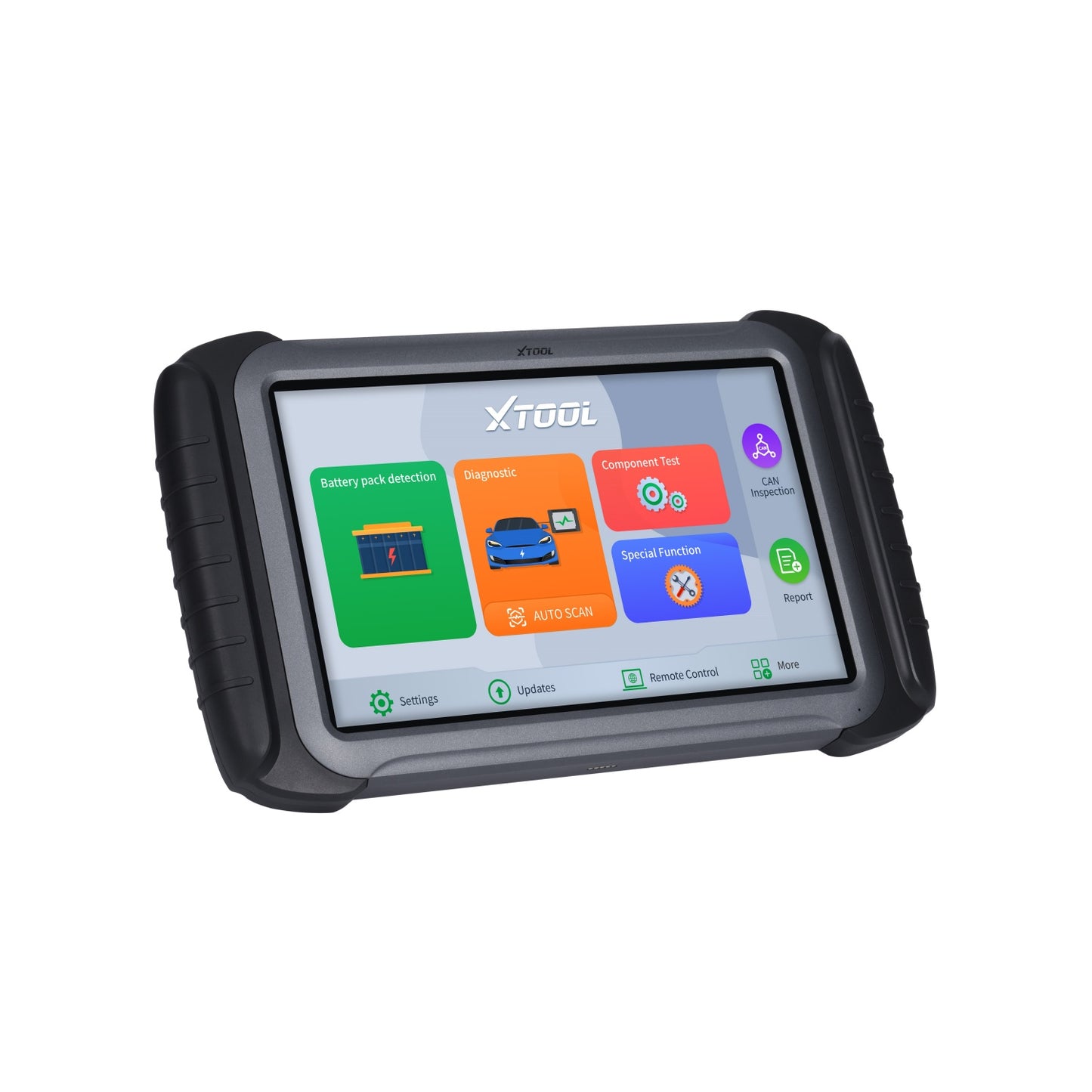

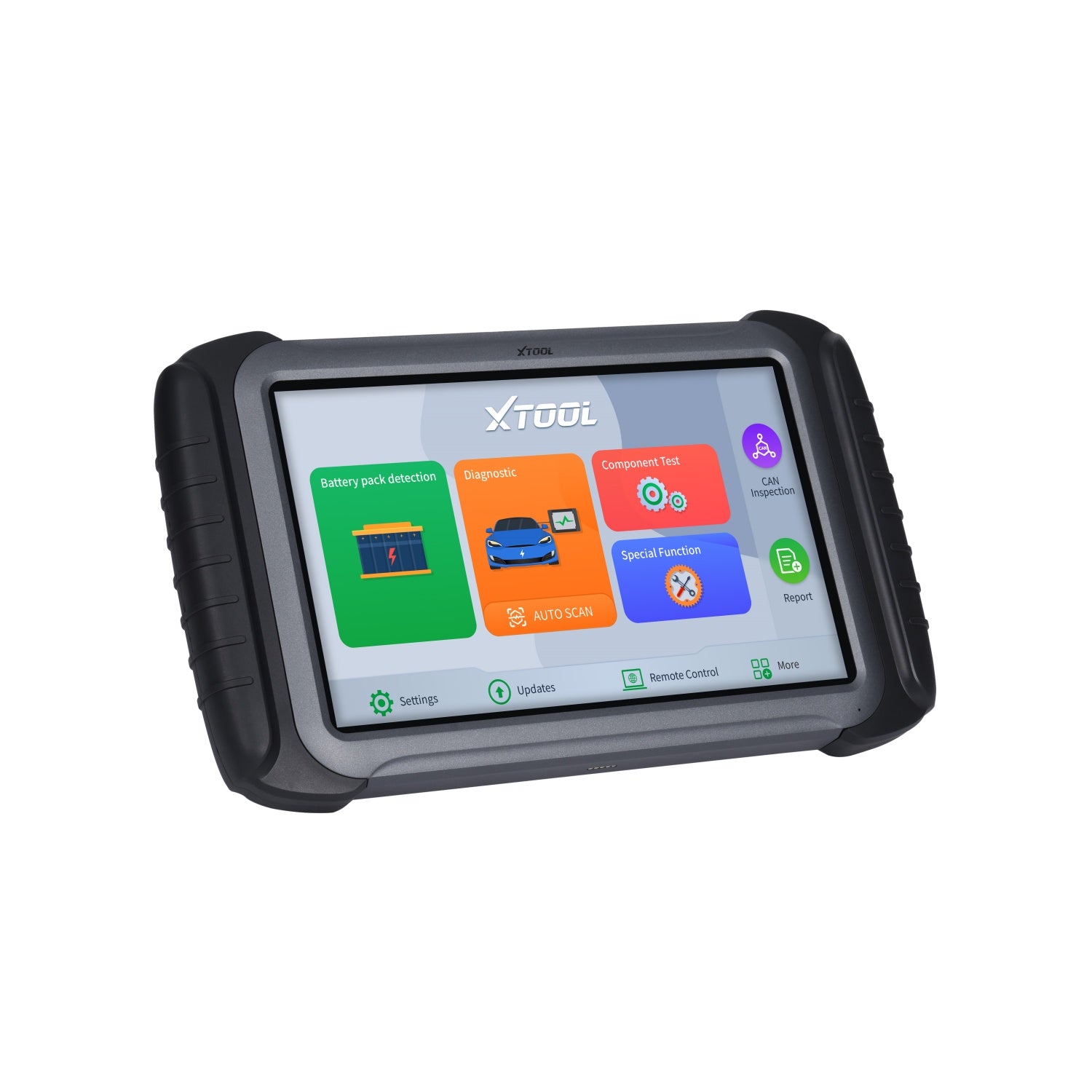

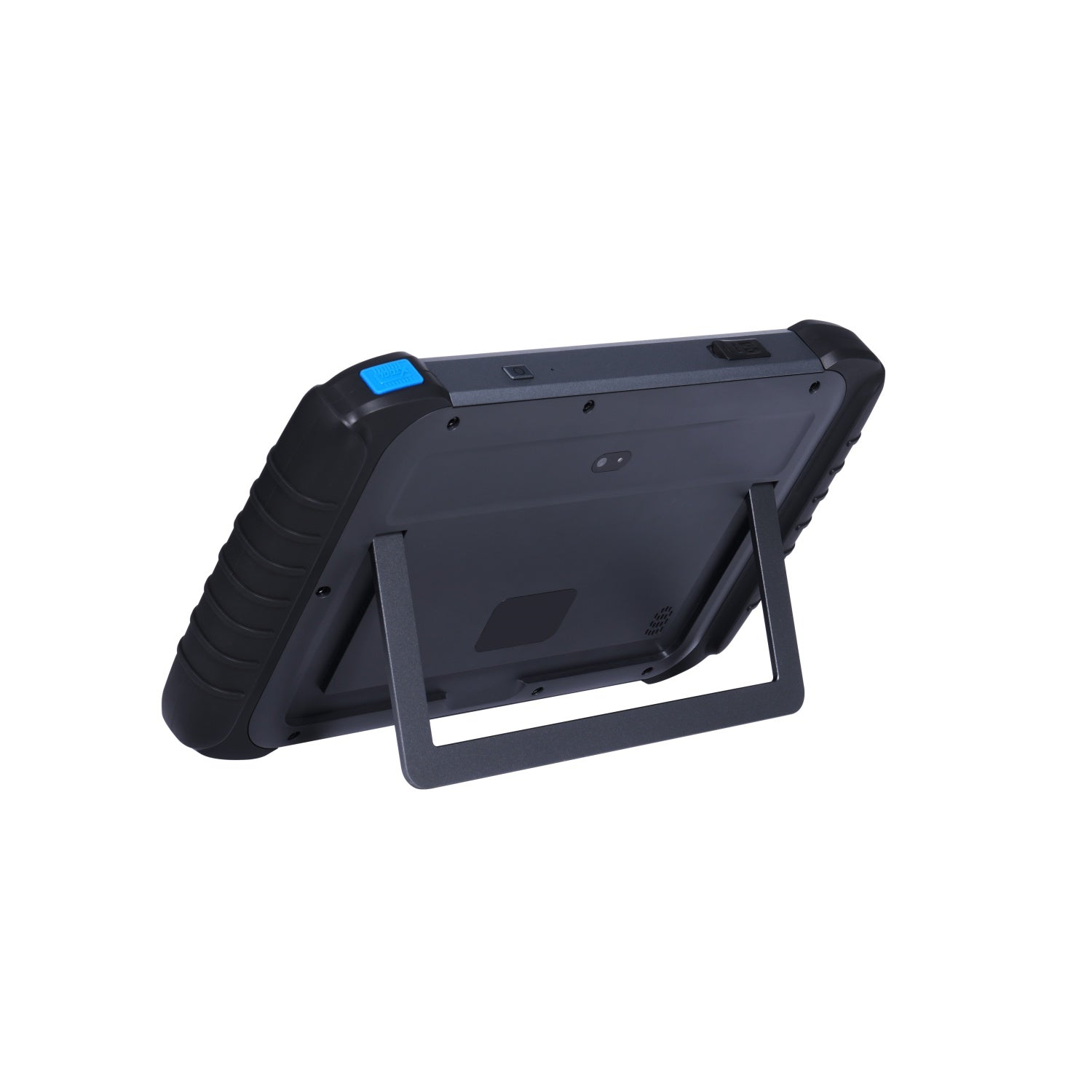

XTOOL E2 PRO EV Smart Diagnostic System, for BEV, PHEV, and REEV vehicles

E2 Pro is a next-generation smart diagnostic platform designed for BEV, PHEV, and REEV vehicles. Focused on the rapidly growing EV market, it provides car mechanics with a comprehensive solution for full-system diagnostics, battery pack analysis, component testing, BMS repair, and more. In addition to EV diagnostics, E2 Pro also supports general gasoline vehicles, offering 55+ essential special functions such as throttle matching, ABS bleeding, maintenance light reset, EPB testing, and SAS calibration.

Description

    ● Comprehensive diagnostic platform for electric, gasoline, diesel, and hybrid vehicles across U.S., European, Asian, and Chinese markets
    ● OEM-level diagnostics for Tesla with dedicated connectors, supporting DTC reading/clearing, live data streaming, bi-directional control, and special functions
    ● Quickly analyzes high-voltage EV systems, allowing fault code retrieval, clearing, and real-time data monitoring
    ● Battery pack diagnostics available via OBD or direct connection with specialized cables and jumpers to track voltage and temperature at the cell level
    ● Easily expands battery pack compatibility with a CAN detection function, enabling support for new models from different manufacturers
    ● One-click off-vehicle component testing, including compressor, DCDC, OBC, and 48V motor, streamlining repair verification
    ● Supports the latest communication protocols, including DoIP for Benz, Jaguar, Land Rover, and BMW, as well as CAN FD for GM
    ● Offers fault code guidance for VAG and BMW, offline programming for Ford, Lincoln, and Mazda, and online coding & programming for VAG, BMW, and Mercedes-Benz
    ● Seamlessly switch between EV diagnostic mode and standard vehicle diagnostic mode for maximum flexibility

Parameters

    Operating System：Android 10.0
    Communication Method：Wi-Fi, Wired
    Processor：8 Core, up to 2.2 GHz
    Connectivity：USB Type-C
    Memory：8G+256G
    Working Voltage：9-36V
    Display：10.1-inch, 1920x1200px
    Battery：6400 mAh, 7.2V
    Camera：8.0 Megapixel, AF with Flashlight
    Working Temperature：0 to 40℃
    Auto Input/Output：Microphone, Speaker
    Storage Temperature：-40 to 60℃
    VCI Screen Size：3.97-inch
    Compatible Protocol：CANFD, DoIP, Dual CAN, etc.

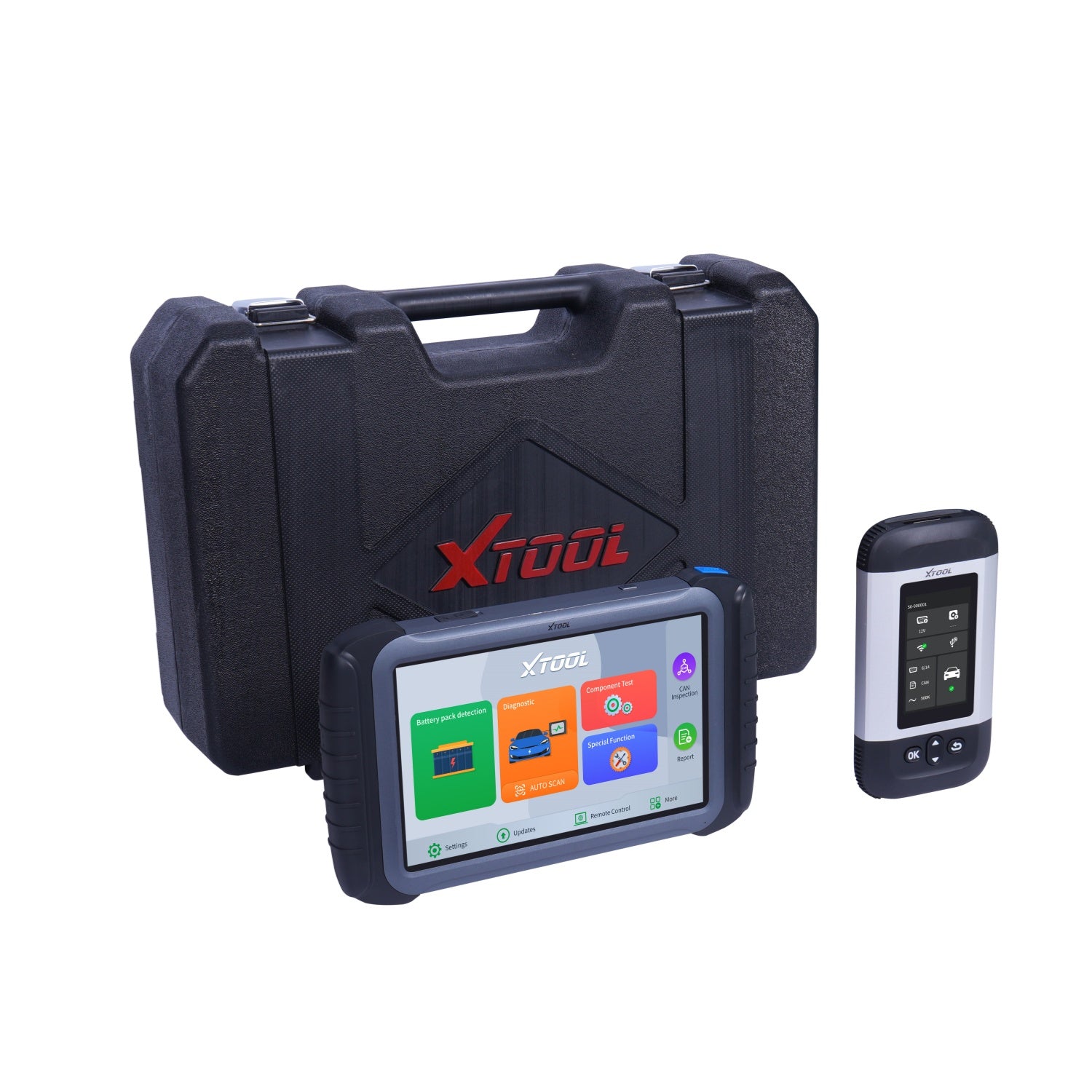

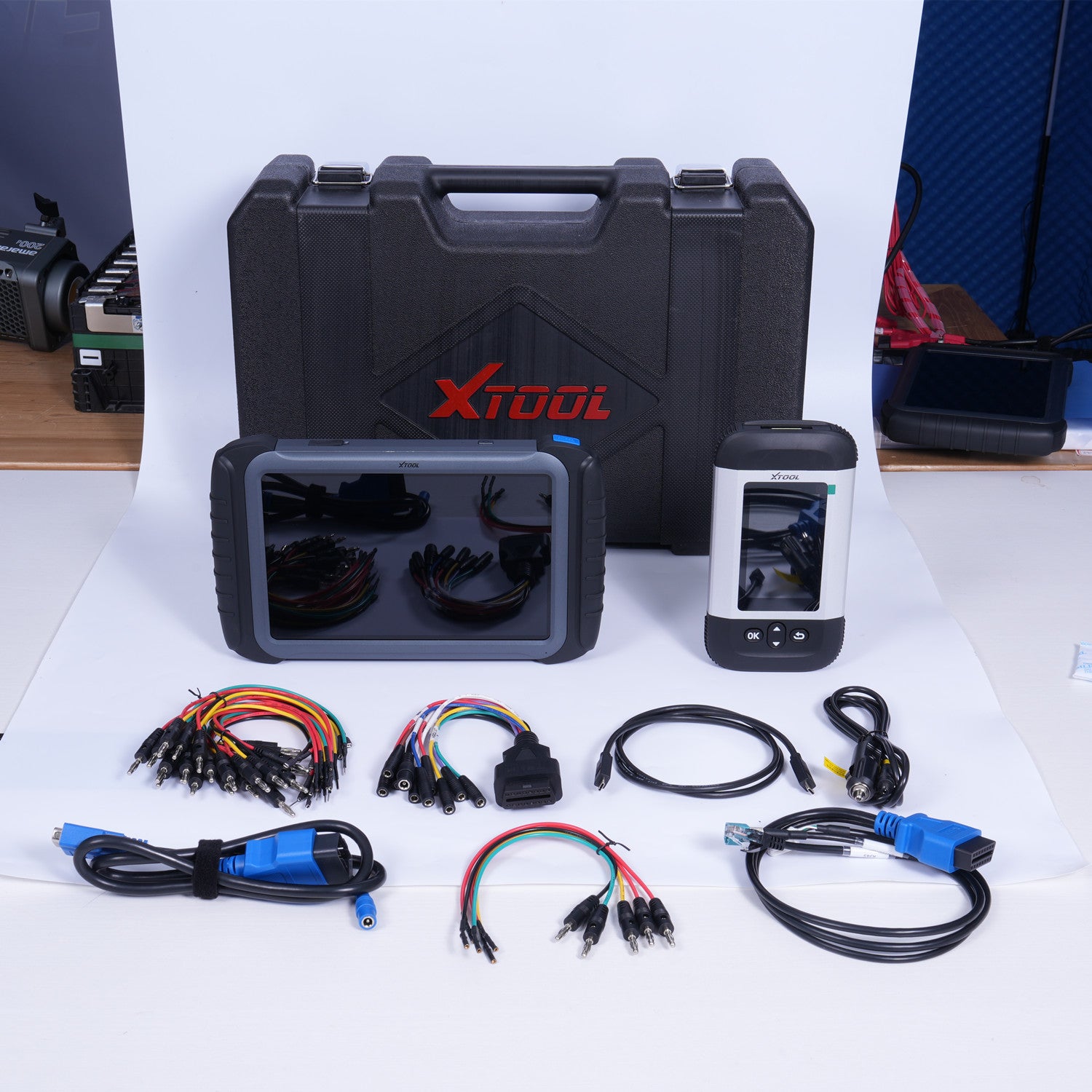

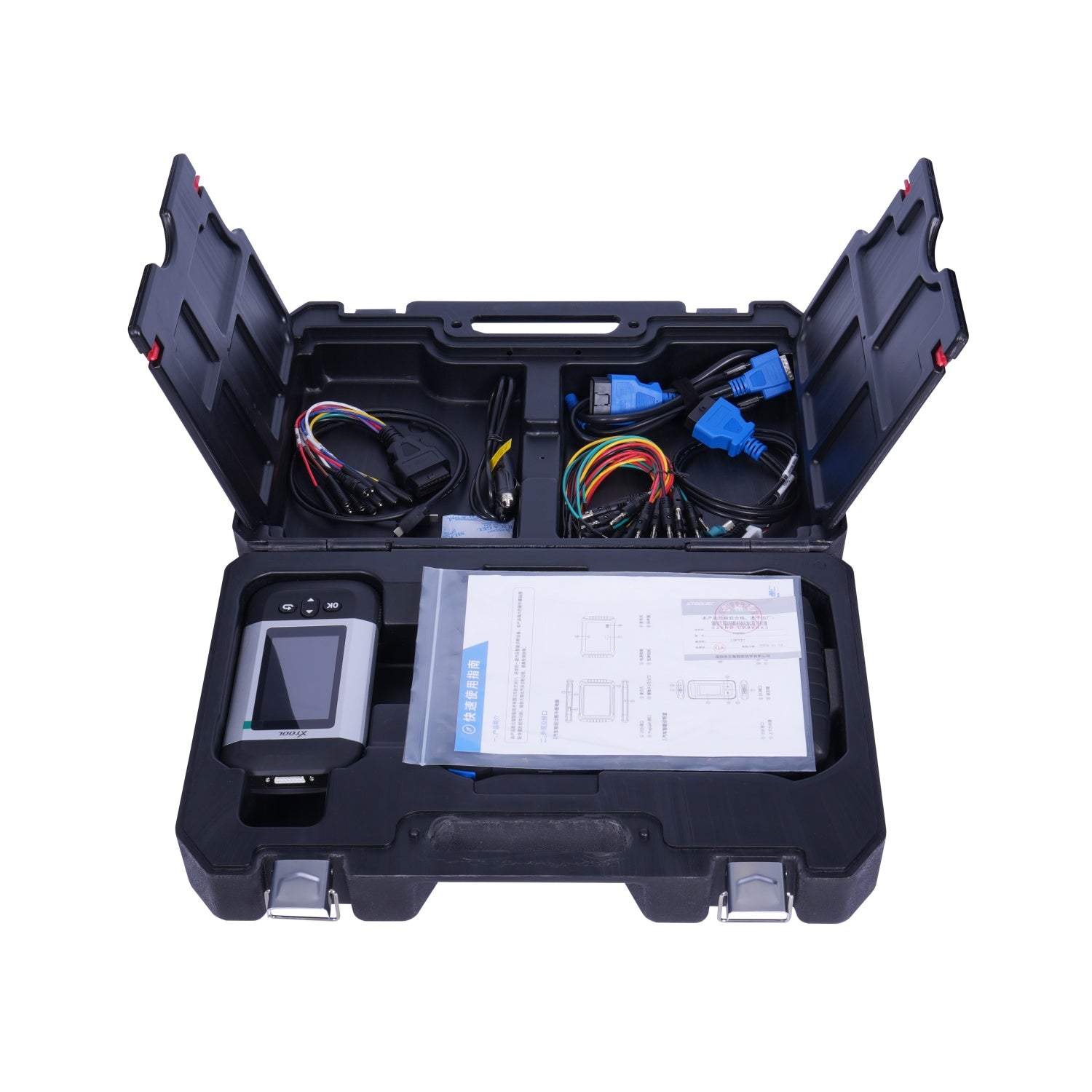

Accessories

    Carton
    Tool Case
    Packing List
    Certificate of Quality
    Quick Start Guide

Main Units

    Tablet
    VCI Box
    Power Supply(PD)
    Charging Adapter(EU)
    Charging Adapter(UK)
    Data Cable (Type-C to Type-C)
    Adapter (Type-C to Type-A)
    Data Cable(Type-C to Type-B)
    PD-12V Power Cable ( Type-C to DC)
    Cigar Lighter Cable

Other parts

    M600 Programmer
    M605 PCBA
    XTA004 Cable
    Charging Dock

Test Connectors

    Main Cable (DB15 to OBD-Ⅱ)
    Universal Jumper Adapter
    Universal Jumper Cable
    J1E04
    L1E01(Compressor Tester Cable)
    L1E02 (Tesla LAN Cable)
    L1E03 (Tesla CAN Cable)
