XTOOL COMPASS/COMPASS MASTER Flagship Smart Diagnosis System

COMPASS is your ultimate diagnostic companion, designed for efficiency and precision. Featuring a crystal-clear 10.1" display and powerful performance, it ensures seamless operation for professionals. With J2534 support (optional), it enables OEM software connectivity for advanced diagnostics and programming. Covering a wide range of vehicles, it offers topology mapping, ADAS calibration, and online coding. Plus, with wireless charging and long battery life, you can work without limits. COMPASS — smart, powerful, and built for the future of automotive diagnostics!

Description

    ● Features a 10.1-inch display with a resolution of 1920 x 1200 and runs on the Android 10.0 operating system
    ● Powered by an octa-core processor (2.2GHz + 1.8GHz) and comes with 8GB RAM and 128GB of internal storage
    ● Dual Wi-Fi connectivity allows simultaneous connections to the internet and the VCI
    ● Equipped with a 9600mAh, 7.2V high-capacity battery for extended working hours
    ● Includes an 8MP rear camera for capturing diagnostic or vehicle condition images
    ● Supports all standard diagnostic protocols along with DoIP and CANFD for advanced vehicle communication
    ● SAE J2534 compatibility is available (optional) for OEM software connectivity.(COMPASS MASTER)
    ● Provides extensive vehicle coverage, including U.S., European, and Asian models
    ● Features a topology module mapping function with color-coded system status displays (on supported vehicles)
    ● Supports offline programming for Ford, Lincoln, and Mazda, as well as online coding and programming for VAG, BMW, and Mercedes-Benz
    ● Enables ADAS system calibrations for both cameras and radar-based systems
    ● Comes with OBDI connectors and a convenient wireless charging dock
    ● Generates enhanced diagnostic reports, including PreSCAN and PostSCAN documentation
    ● Includes a 3-year software subscription for continuous updates and improvements
    ● Offers access to a comprehensive maintenance documentation library (available as an additional paid option)
    ● Fully integrated with AutoAuth™ to provide seamless access to FCA's Secure Gateway (SGW)

Parameters

    Operating System：Android 10.0
    Communication Method：Dual Wi-Fi, USB
    Processor：2.2GHz+1.8GHz Octa-core Processor
    Connectivity：Type-C
    Memory：8G+128G
    Working Voltage：9-36V
    Display：10.1-inch, 1920×1200
    Battery：6400 mAh, 7.2V
    Camera：8MP rear
    Working Temperature：0 to 40℃
    Auto Input/Output：Microphone, Speaker
    Storage Temperature：-40 to 60℃
    Compatible Protocol：CANFD, DoIP

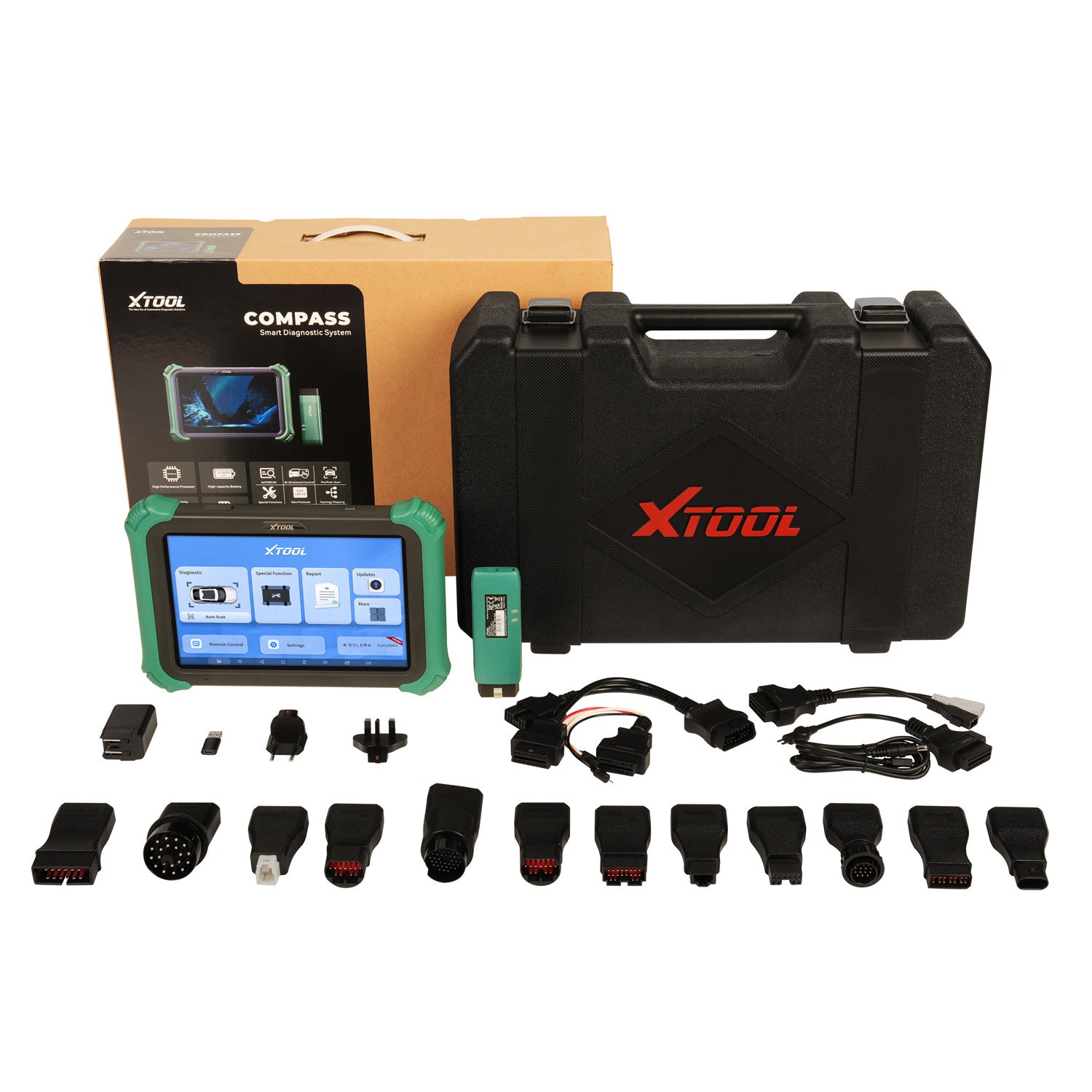

Accessories

    Color Carton
    Packing List
    Certificate of Quality
    Tool Case
    Quick Guide

Main Units

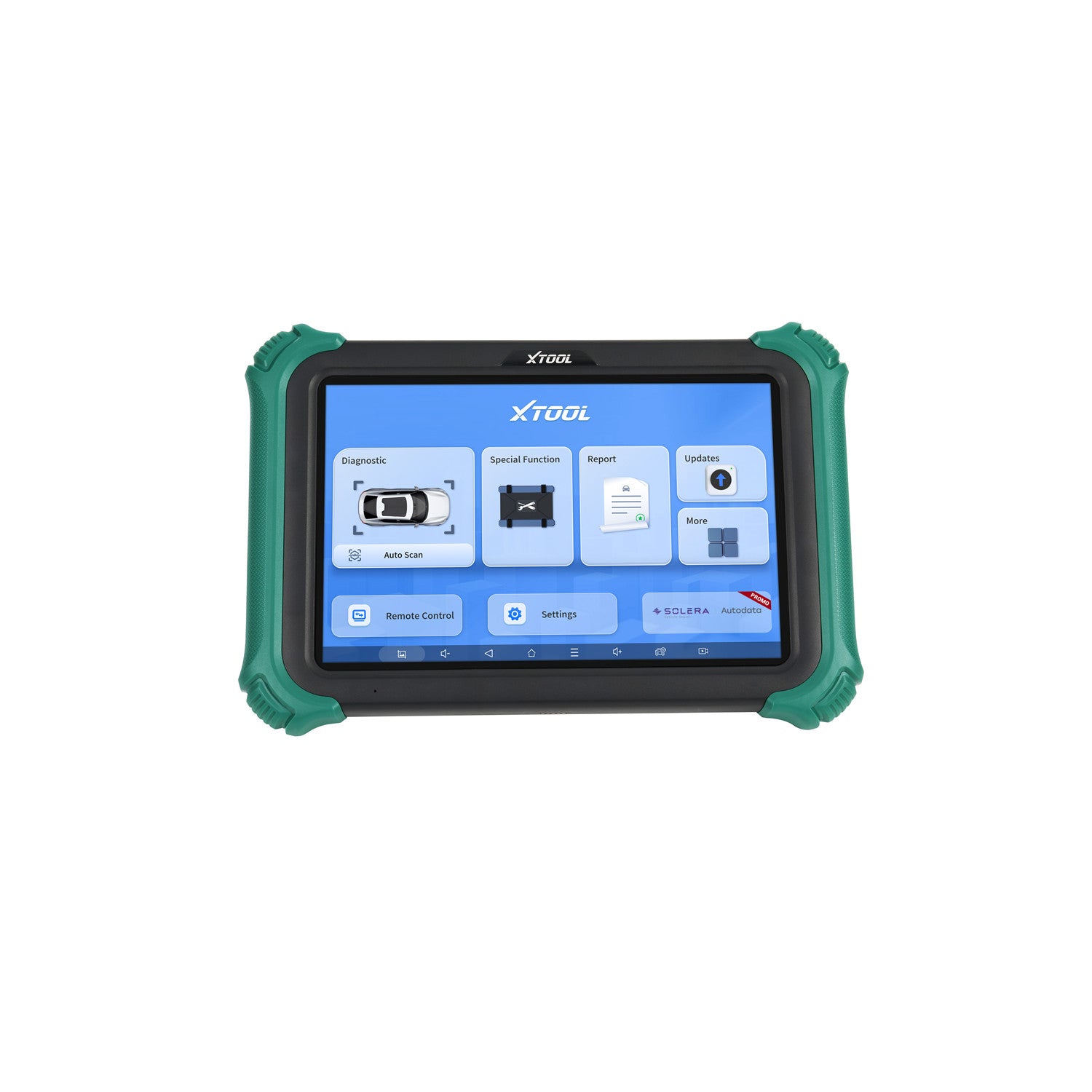

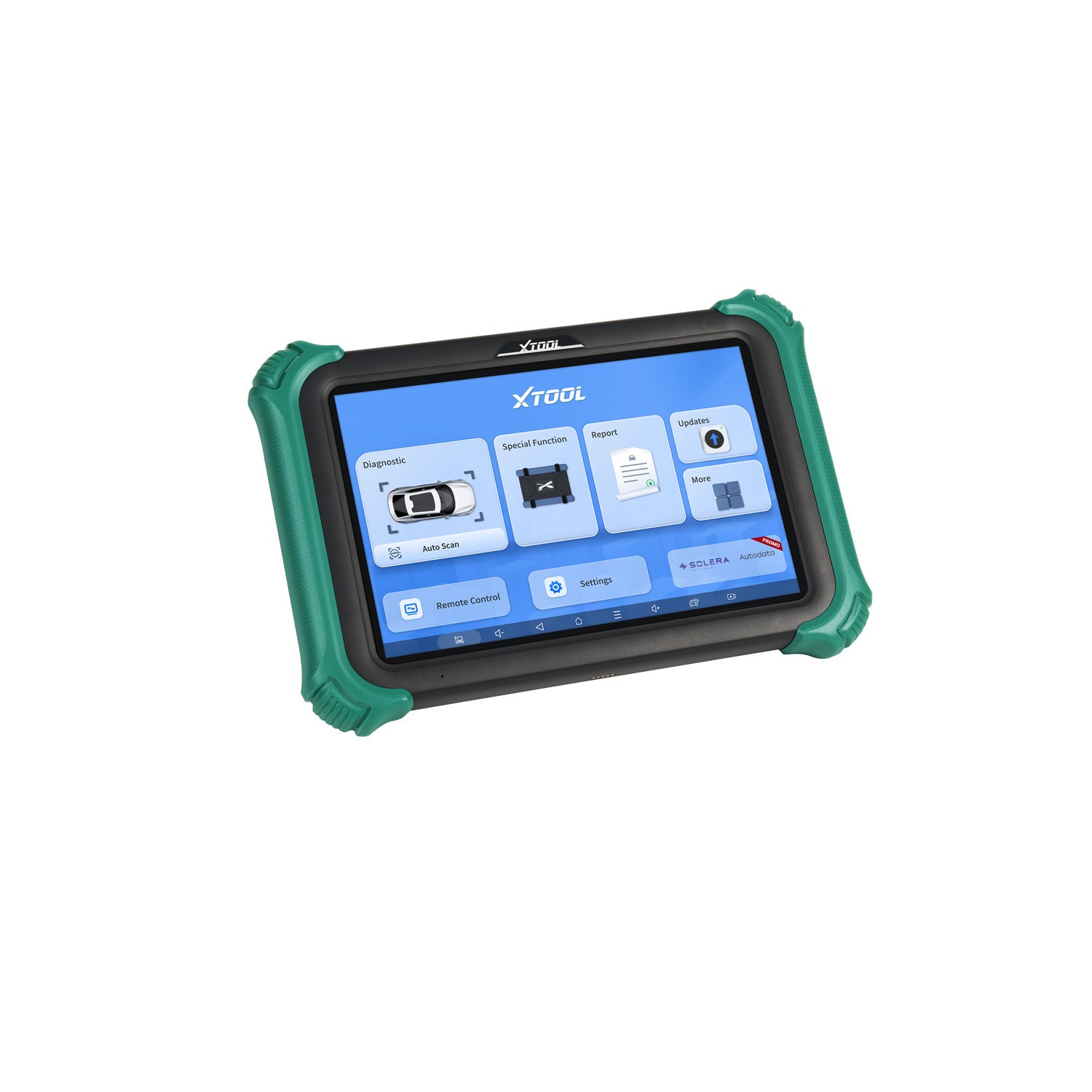

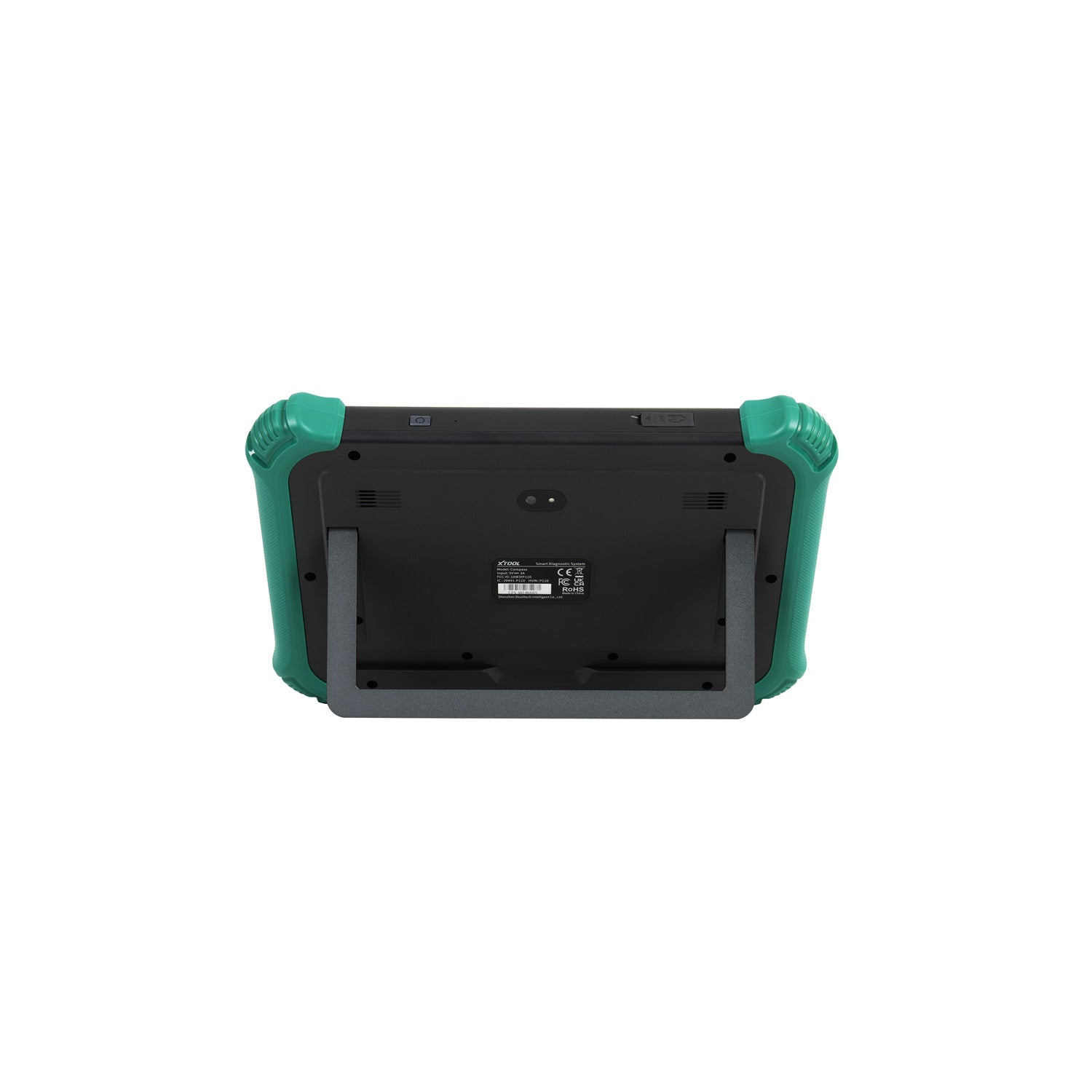

    Tablet

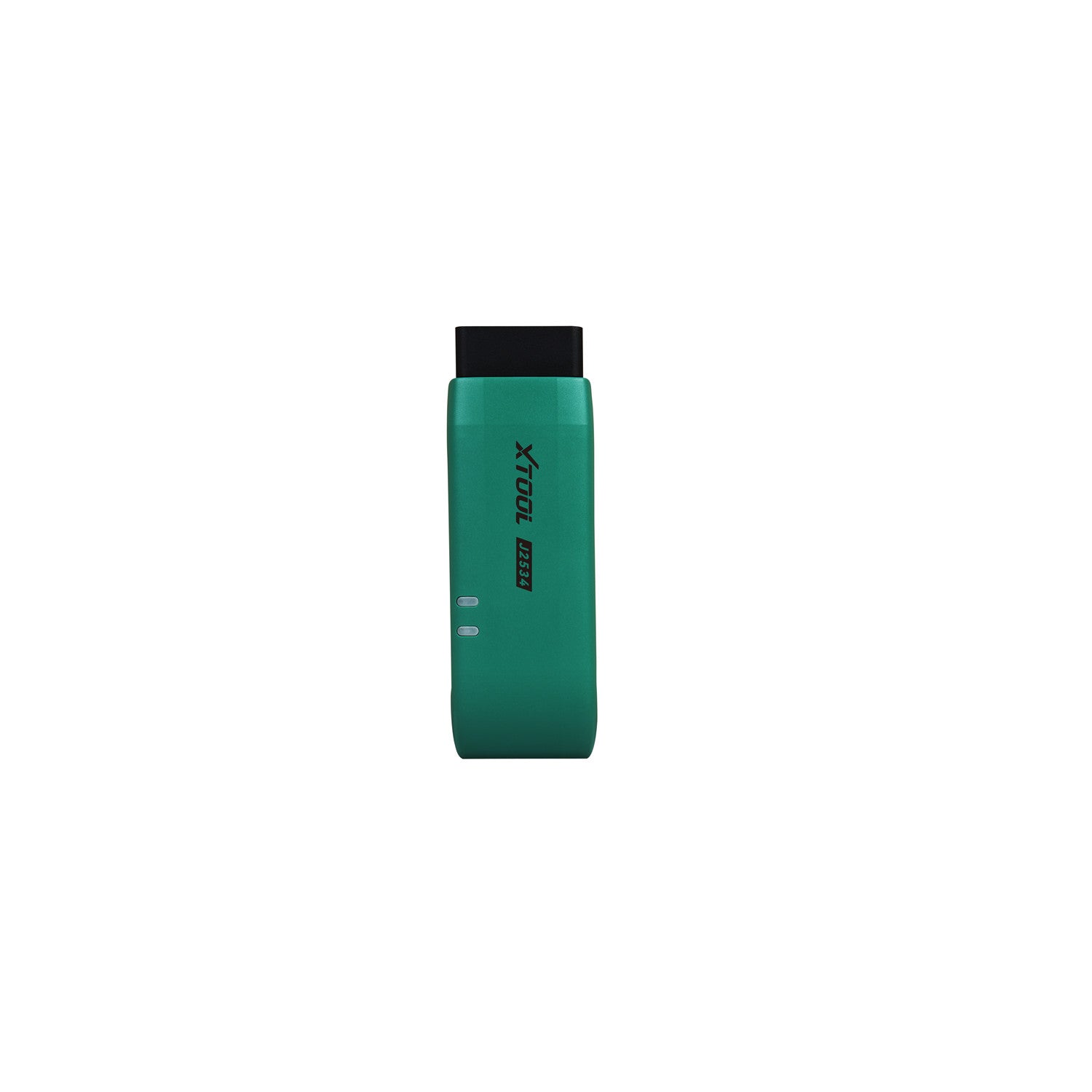

    VCI Box
    Power Supply (PD)
    Charging Adapter (EU)
    Charging Adapter (UK)
    PD-12V Power Cable (Type-C to DC)
    Data Cable (Type-C To Type-C)
    Adapter (Type-C to Type-A)

Test Connectors

    CITROEN-2
    VW/AUDI-2+2
    MITSUBISHI/HYUNDAI-12+16
    UNIVERSAL-3
    BENZ-14
    BENZ-38
    BMW-20
    GM/DAEWOO-12
    HONDA-3
    TOYOTA-17
    NISSAN-14
    KIA-20
    HYUNDAI/KIA-10
    MAZDA-17
    SUZUKI-3
    FIAT-3
