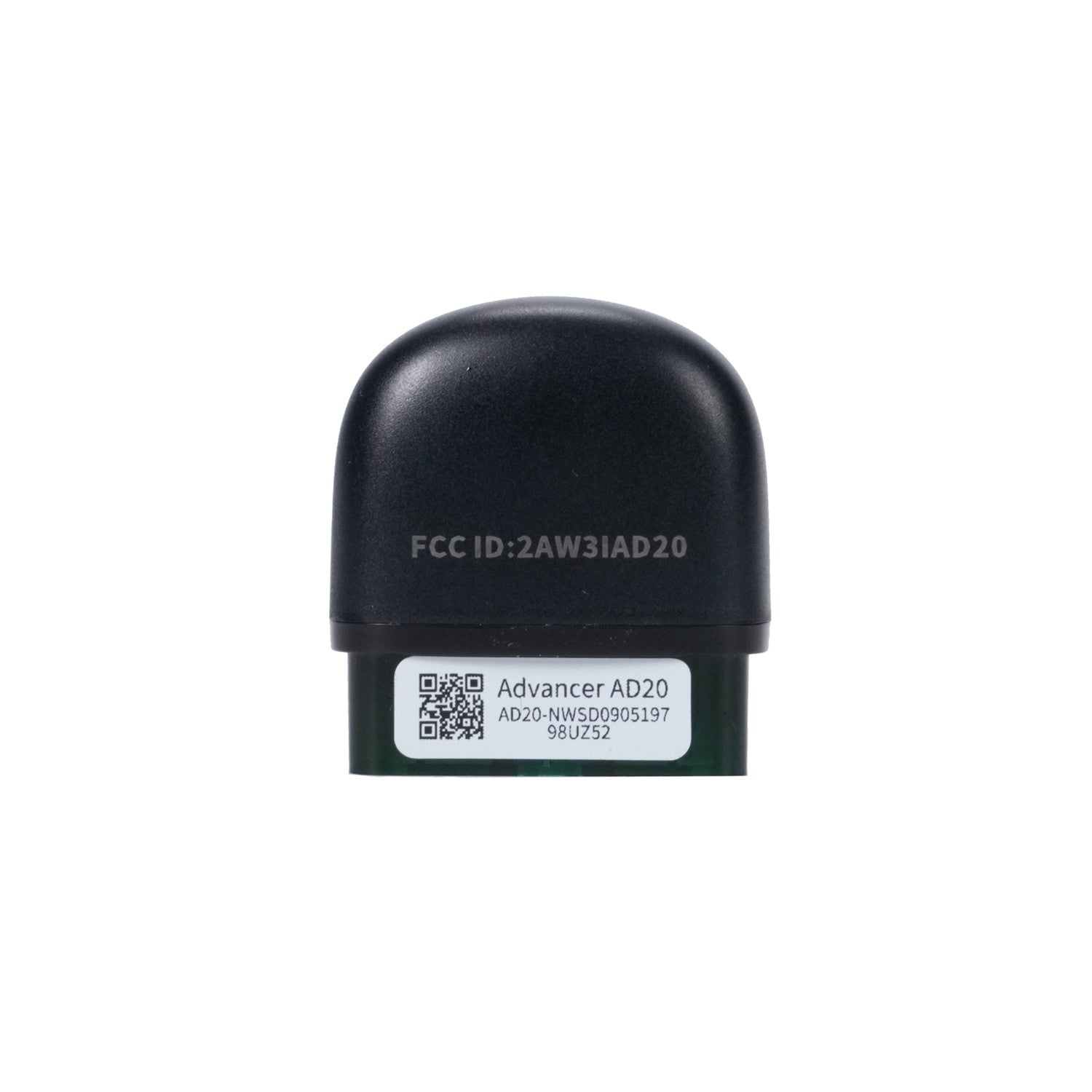

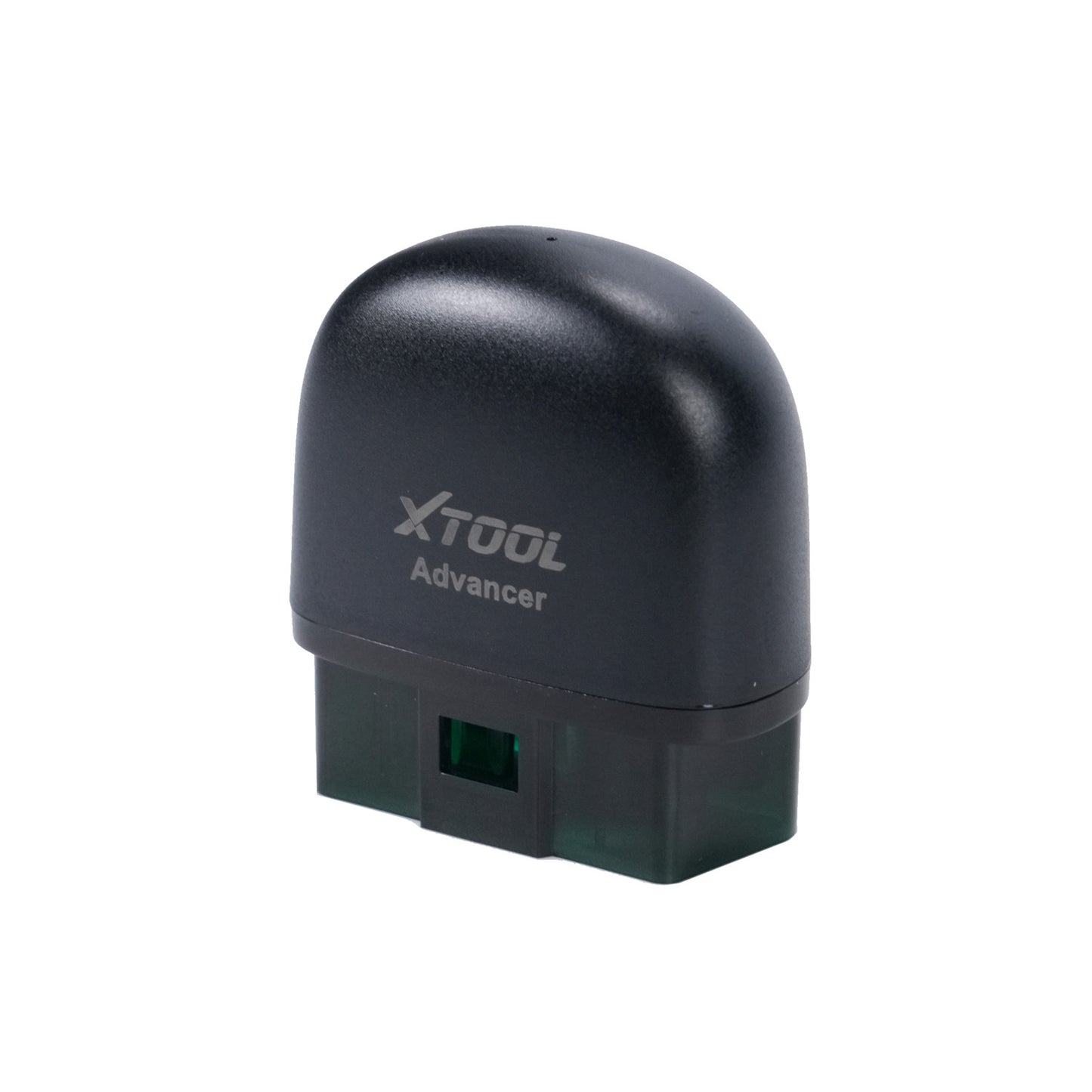

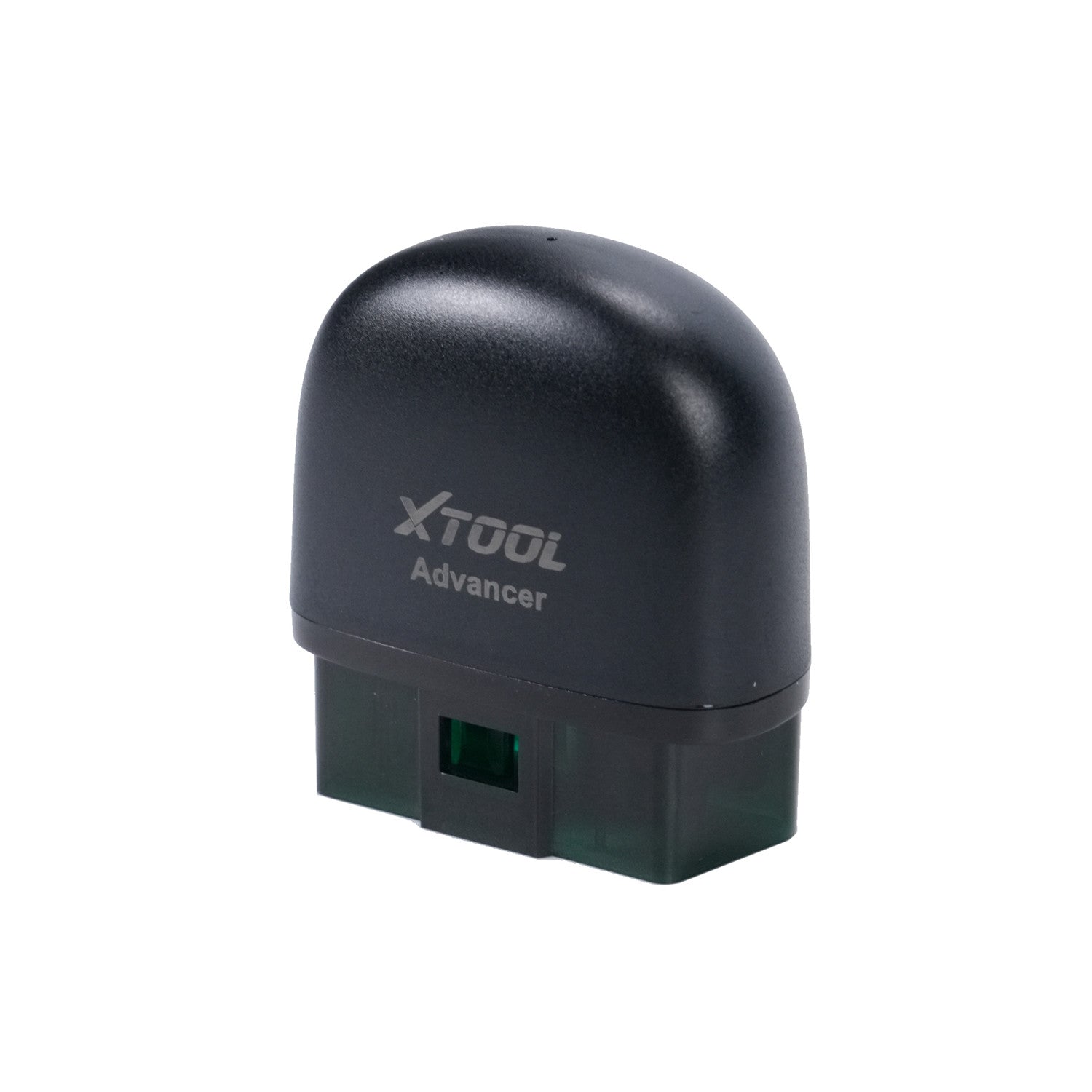

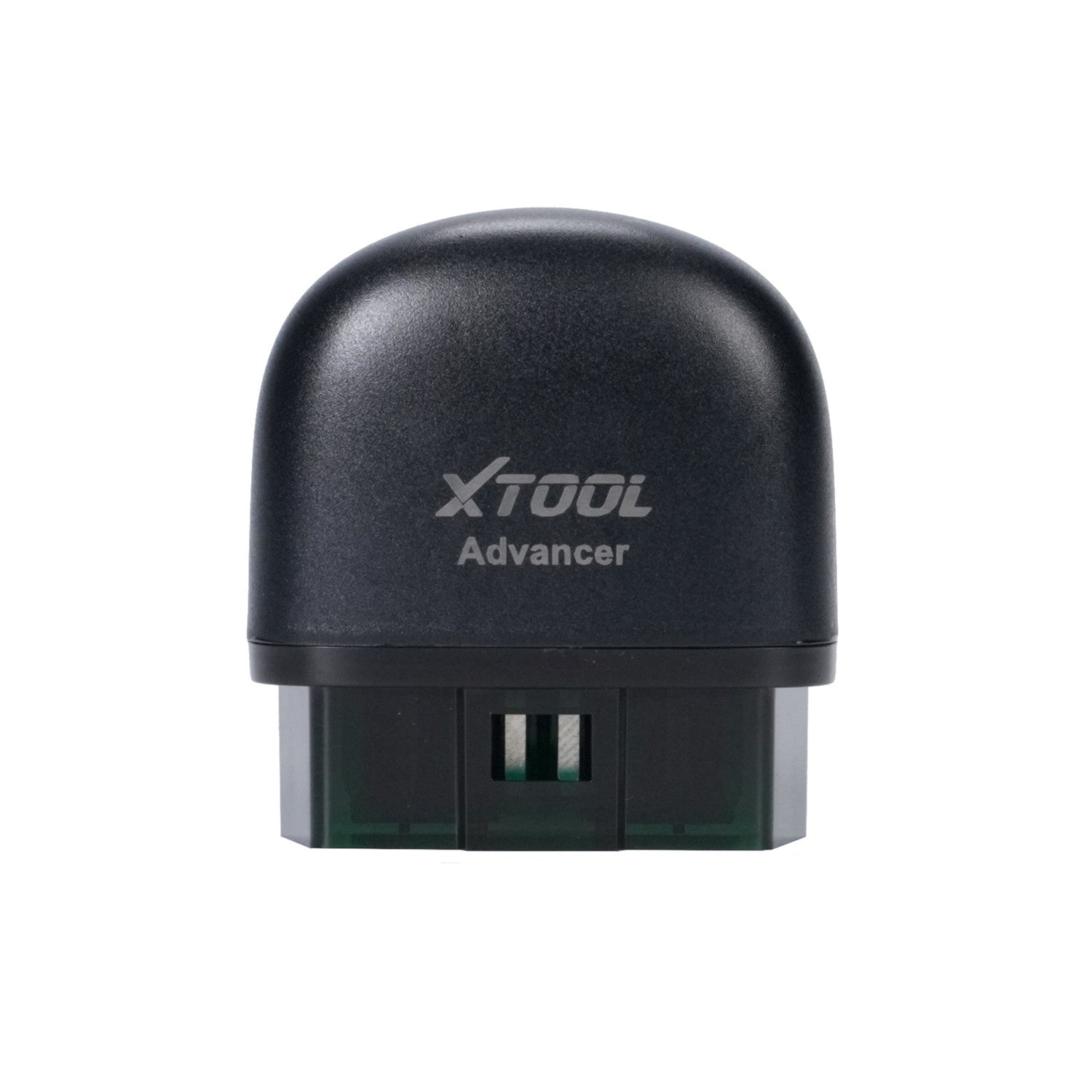

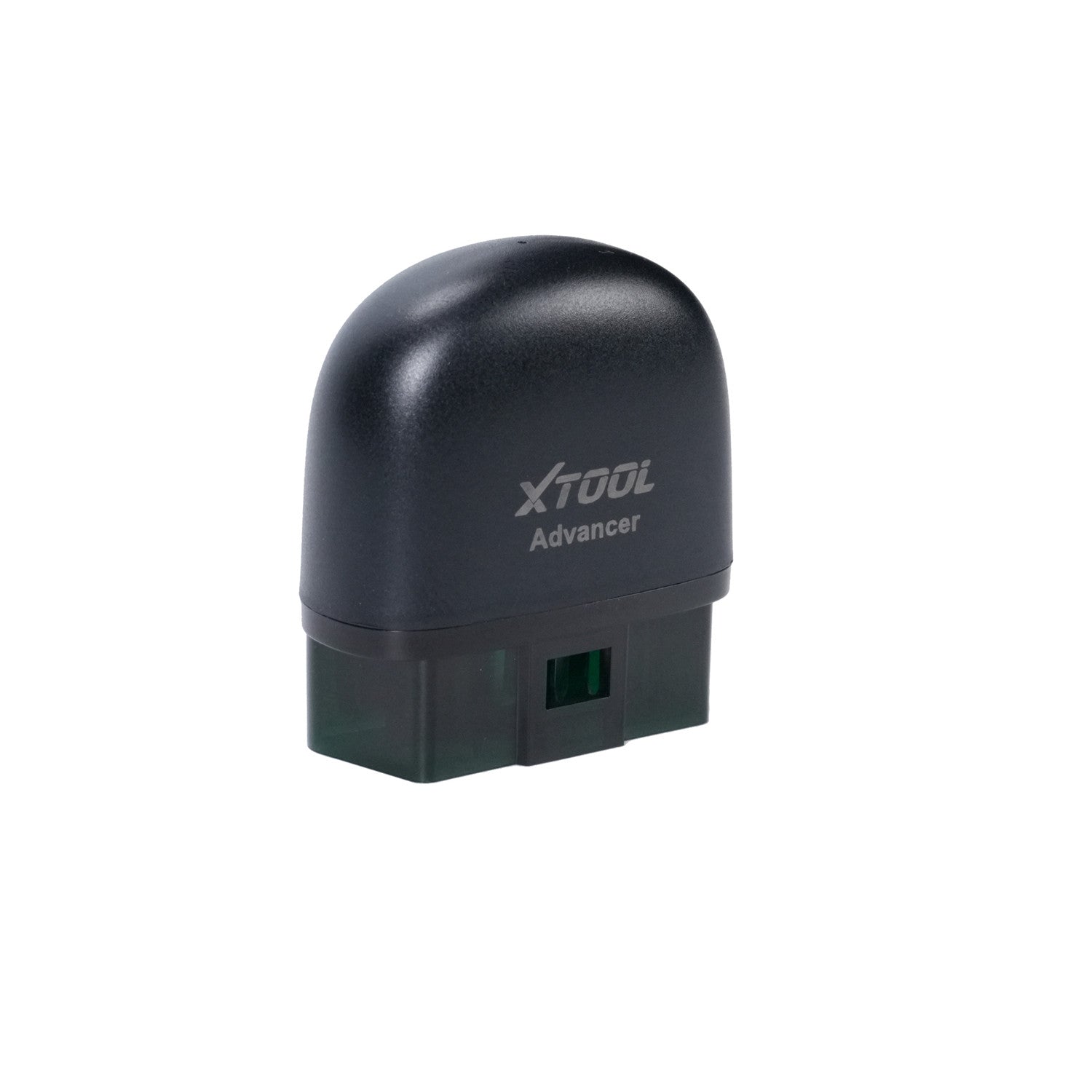

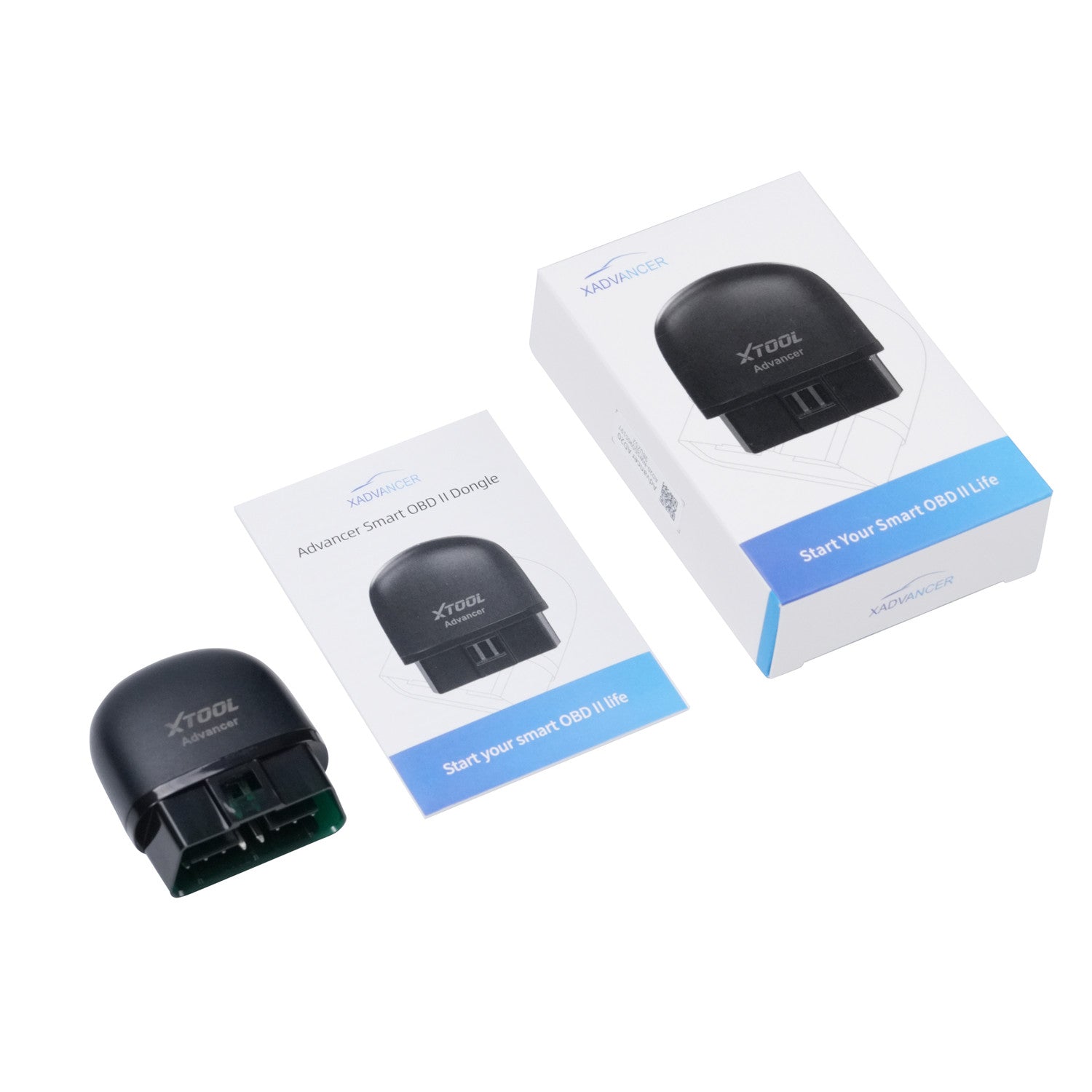

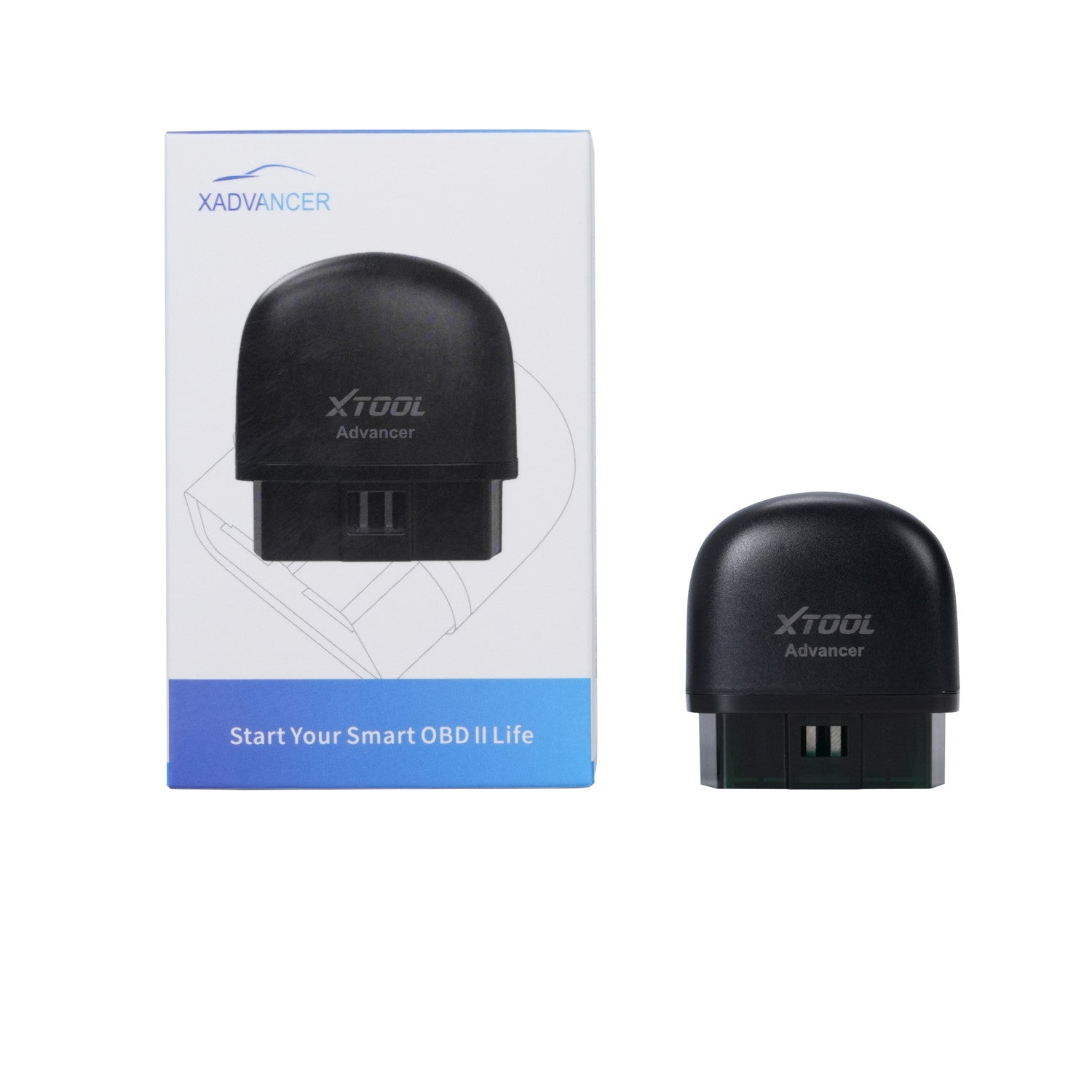

XTOOL Advancer AD20 Pro OBD System Diagnosis

Advancer AD20Pro is a Smart OBD Dongle that communicates with a smartphone using Bluetooth. AD20Pro works the same with AD20, but it provides more useful functions like maintenance light reset as well as full-system diagnostics. Comparing to AD20, AD20Pro can check the DTC codes not only inside the engine, but also the chassis, transmission, suspension and more.

Description

    ● Read & clear codes on U.S., Asian European and Chinese vehicles, 1996 and newer.
    ● Provides services like smog check & maintenance light reset
    ● Vehicle deep check, show live data & battery health check
    ● Download free software for your vehicle brand without additional fee
    ● Record trips and fuel consumption
    ● Integrated driving monitor, improving driving skills

Parameters

    Processor：ARM Cortex-M4
    Communication Method：Bluetooth
    Working Voltage：9-16V
    Working Current：100mA @ 12V
    Sleeping Current：100mA @ 12V
    Working Temperature：-20~60℃
    Weight：~40g
